P4 Square Display Screen Unit Board 160x160mm Outdoor Multi-Sided LED Display Module RBG Full Color Waterproof

P4 Square Display Screen Unit Board 160x160mm Outdoor Multi-Sided LED Display Module RBG Full Color Waterproof

P4 bevel kit module 160x160mm

Note (this is important):

Because of the different batches of LED modules, chromatic aberration may occur, the signal direction inside the PCB board may be different, and the position of the screw holes on the housing may change. LED modules of different companies and different batches of LED modules cannot be used together. If you buy for repair, please confirm with us before placing an order.

Specification

Pixel Pitch : 4mm

Pixel Density : 62500dots/sqm

Color Configuration : RGB

Module Size : 160mm x 160mm

Module Resolution :32dots x 32dots

Drive Mode :1/10 Scan Constant Current

Refresh Rate :3000HZ

Frame Rate :120frame/sec

Grey Scale :16.7M colors(Synchronized)

Color Temperature :R.G.B brightness 256 level adjustable

Power Input :AC110V/ 220V ±10, 50HZ

Ave. Power Consumption :300W/sqm

Storage Temperature :-30~+70 degree

Working Temperature :-20~+50 degree

Blind Spot Rate : and lt;1/10000

Life Span : and gt;100,000 Hours

Operating Humidity :10%~95%

Control Method :Synchronous, Asynchronous, 3G,WIFI,USB

Operating System :Win 98, Win2000, XP, Win7, Win8, Win10

Video Signal Mode :RF, S-Video, RGB, RGBHV, YUV, YC etc

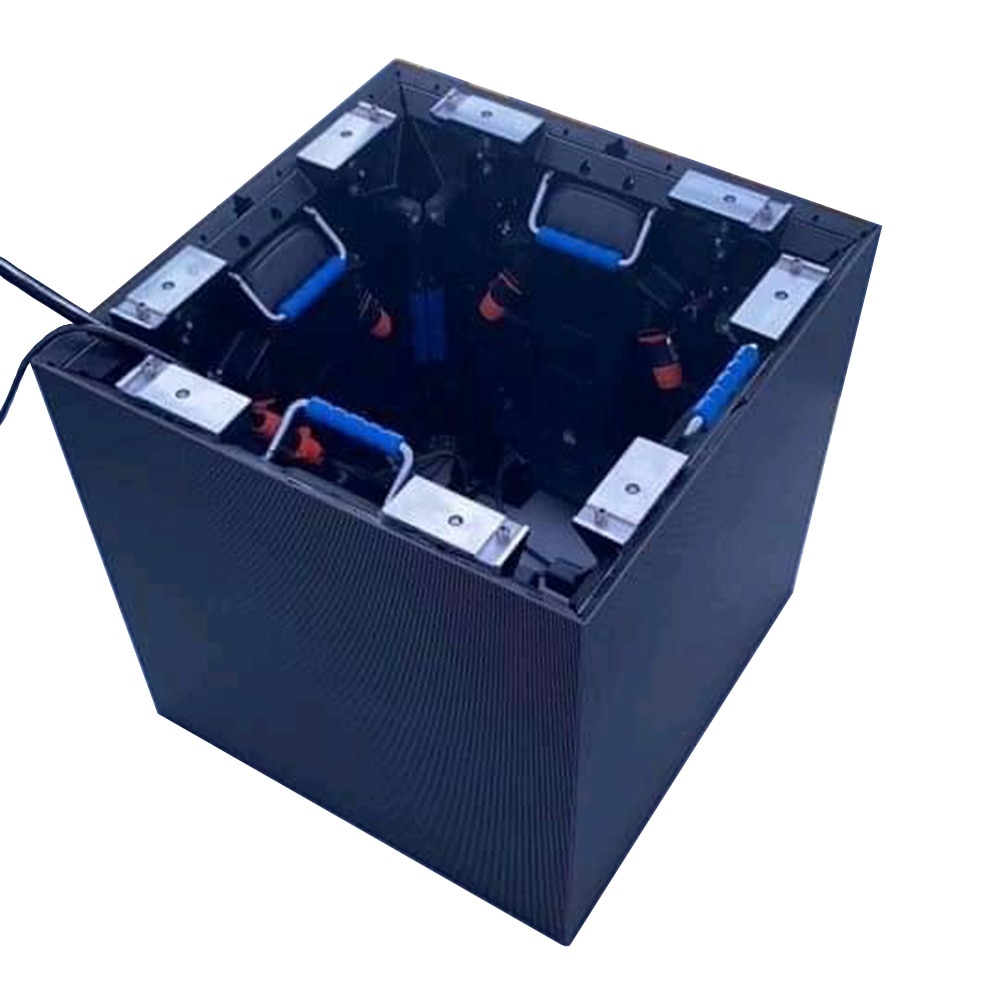

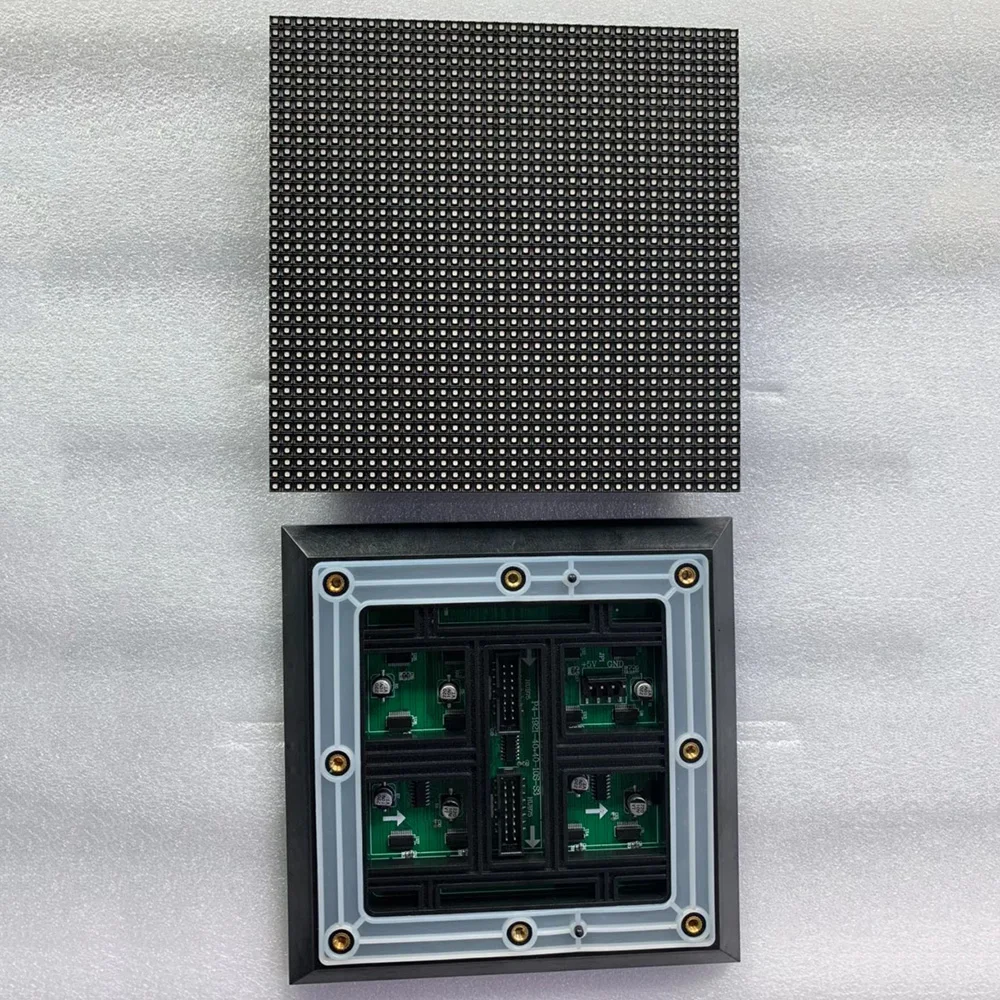

Product display

Packing list for purchasing N LED modules:

1.N LED modules

2.N data lines

3.N / 2 power cords (because 1 power cord can support 2 LED modules.)

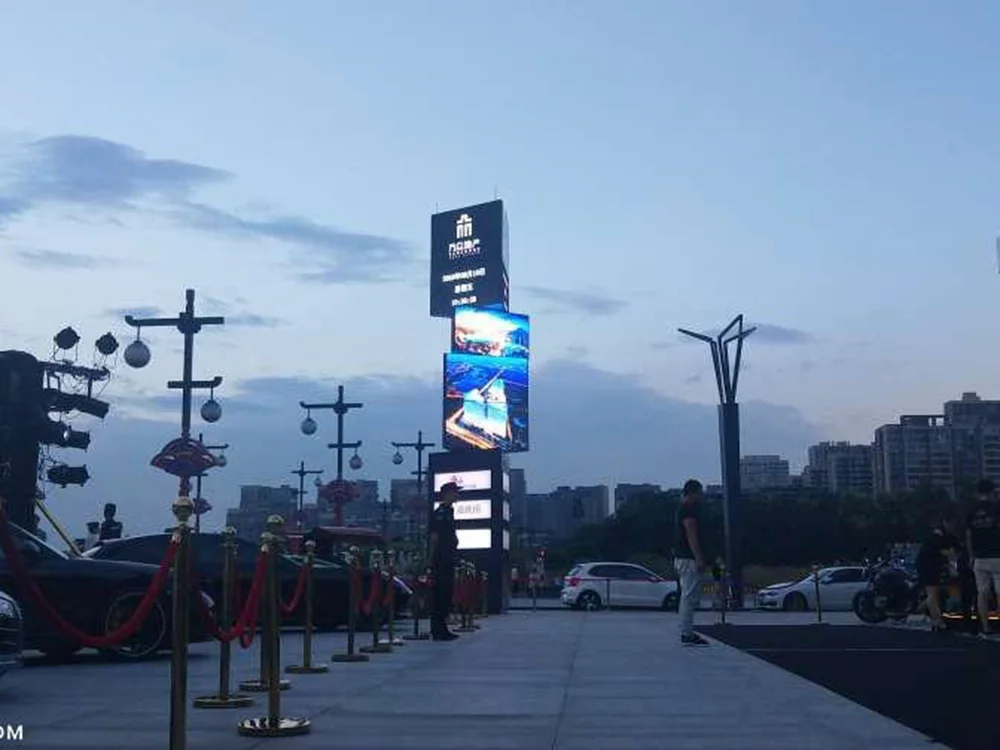

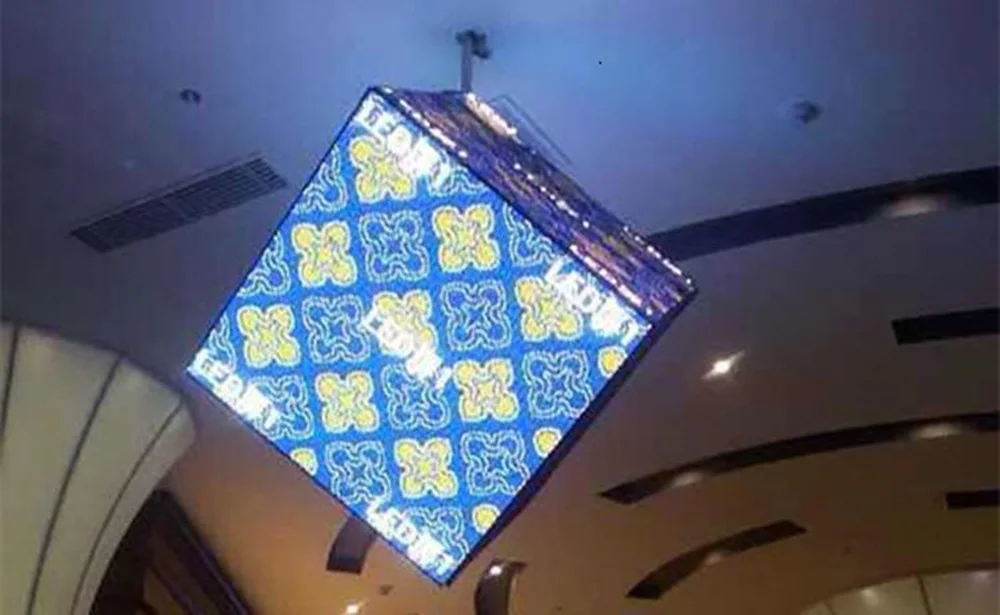

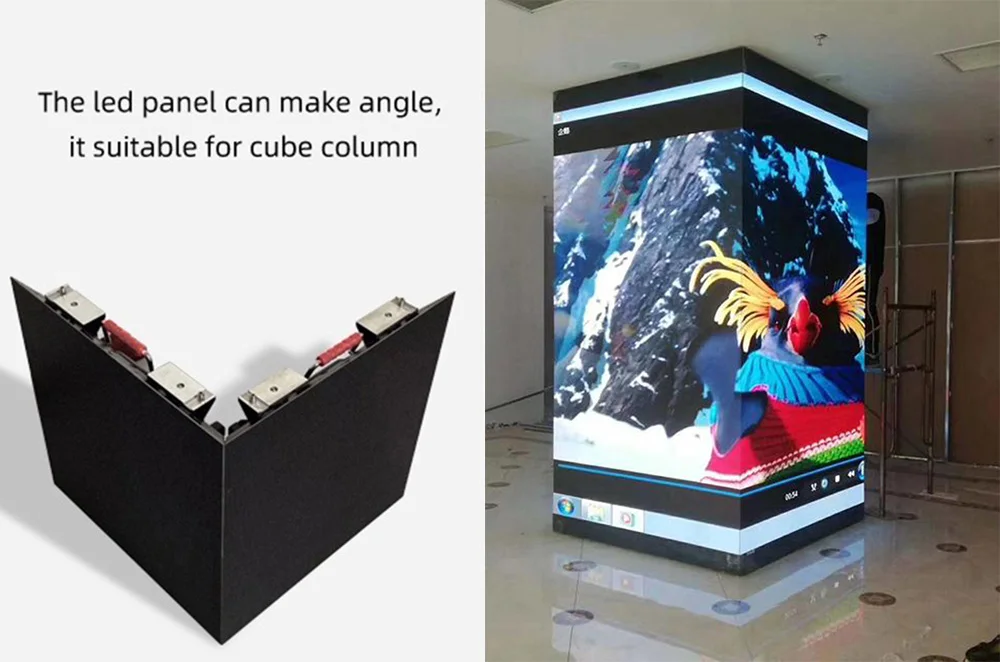

Whole screen Effect

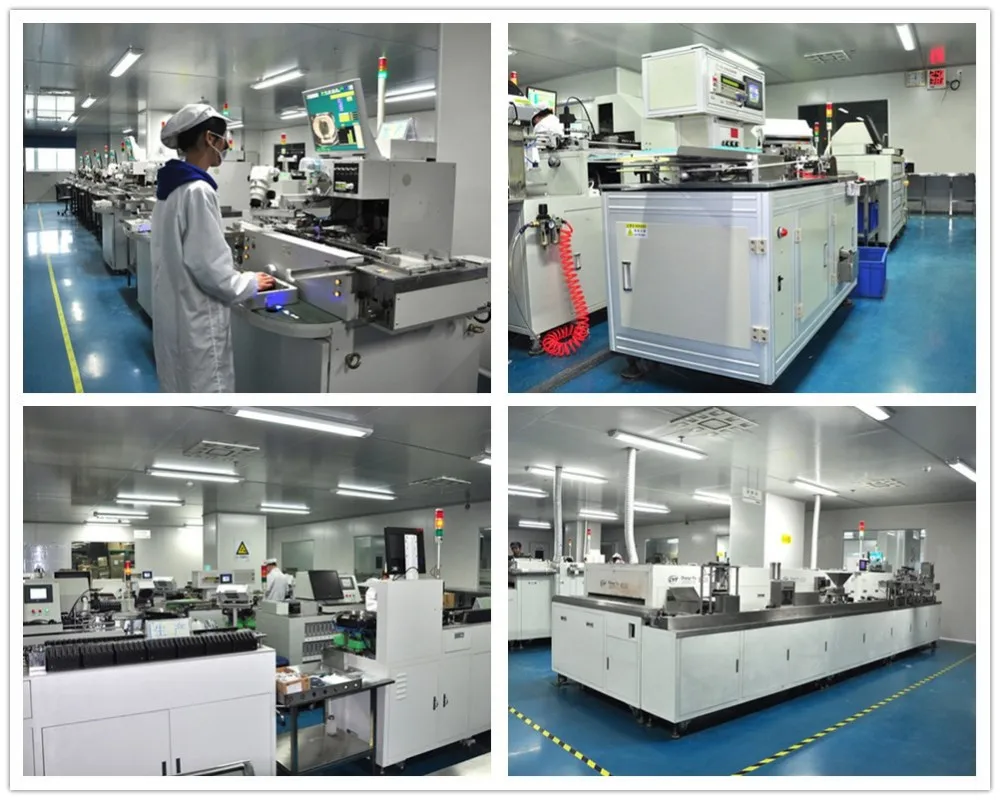

our company
