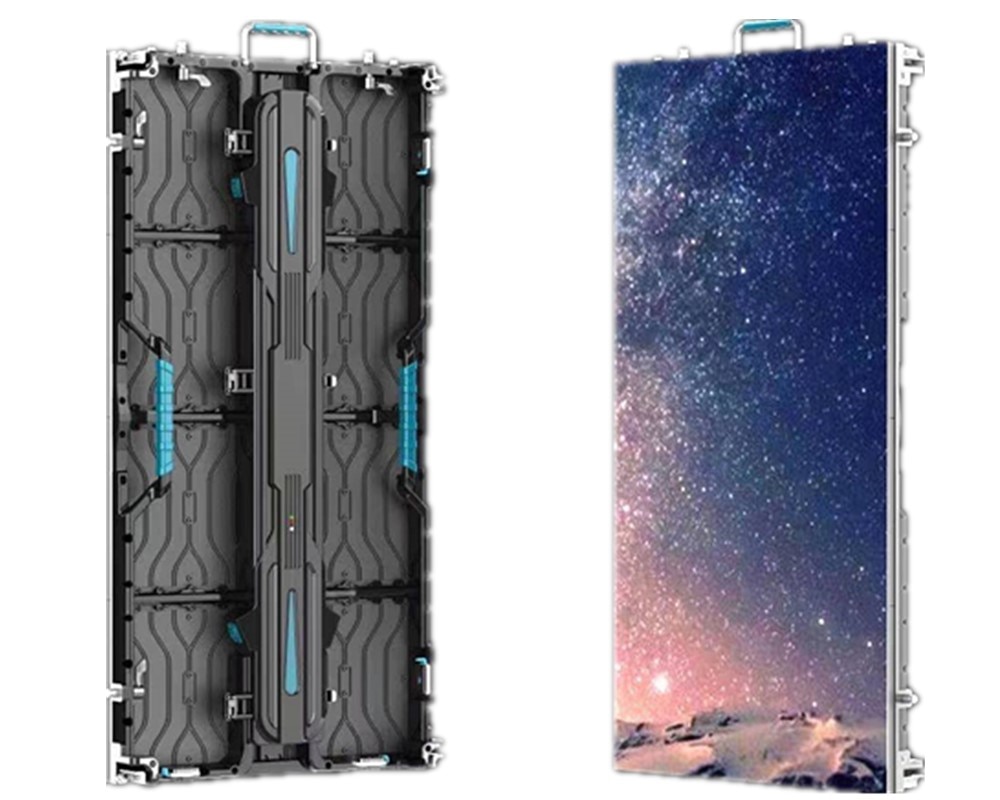

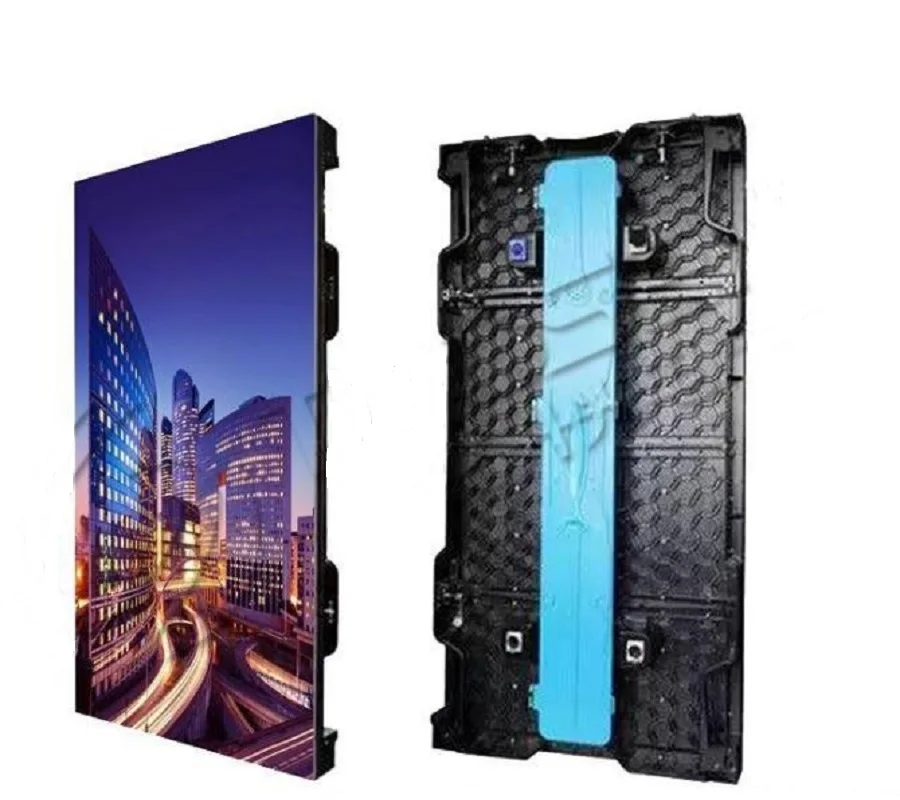

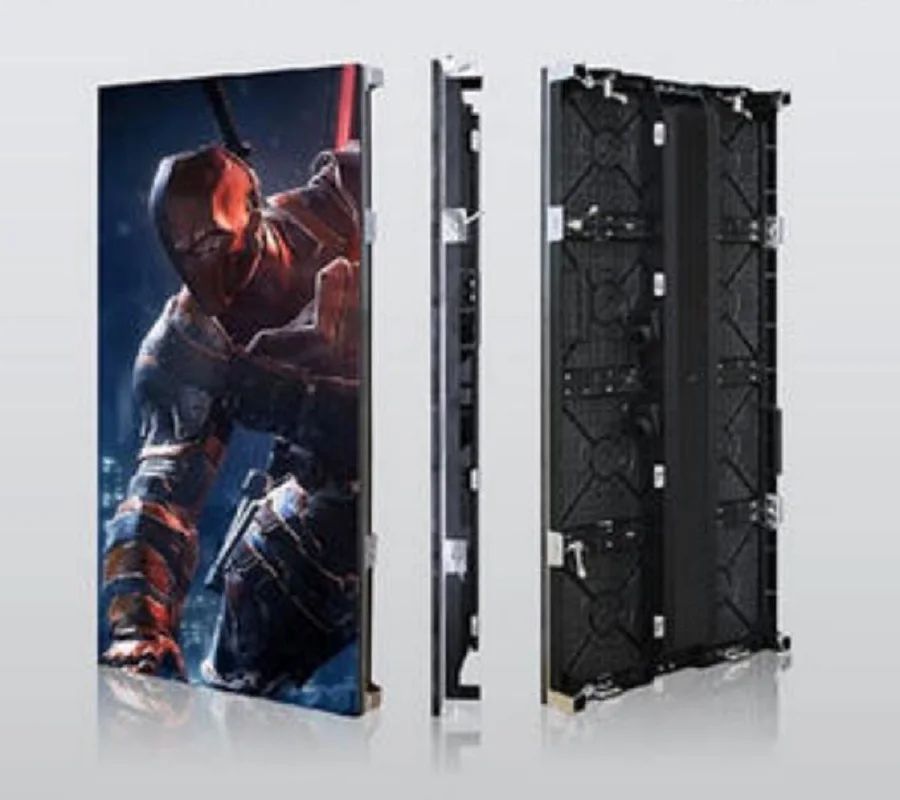

outdoor Rental p3.9 LED display / die casting aluminum led display
Our Product line:
1) Rental led display:p2.6P3.91,P4.81 p5.95
2)Indoor LED display: P3,P4,P5,P6,P7.62,P8,P10
3) Outdoor LED display: P4,P5,P6,p5.95 P6.25,P8,.,P10 .
Features:
1.HD
2.Ultra thin and ultra light
3.Low attenuation,high gray level,good stability,anti-static
4.Entire die casting aluminum cabinet 500*500mm or 500*1000mm
Product parameters
|
Item |
P3.9 |
|
Chip |
Epstar |
|
Chip size |
Red 9 mil, Green 12. Blue 12mil |
|
Light type |
SMD |
|
Pixel Pitch |
3.9 mm |
|
Module Size |
250mmX250mm |
|
Module Resolution |
64*64 (dots) |
|
Density of pixel |
65536dots/m2 |
|
Pixel configuration |
1R1G1B |
|
Red wavelength |
625±2nm |
|
Green wavelength |
525±2nm |
|
Blue wavelength |
470±2nm |
|
Colors |
16777216 |
|
Best viewing distance |
≥2m |
|
viewing angle |
120°/90° |
|
Maximum power consumption |
22W |
|
Brightness |
6500cd/m2 |
|
Gray scale |
14bits per color |
|
Color temperature |
6500k |
|
Control method |
Synchronization or Asynchronization |
|
Driving method |
1/32 scanning |
|
Frame frequency |
60Hz |
|
Refresh frequency |
≥600Hz |
|
Working Voltage |
DC5V |
|
IP grade |
IP65 |
|
MTBF |
More than 8000hours |
|
Life Span |
80,000hours |

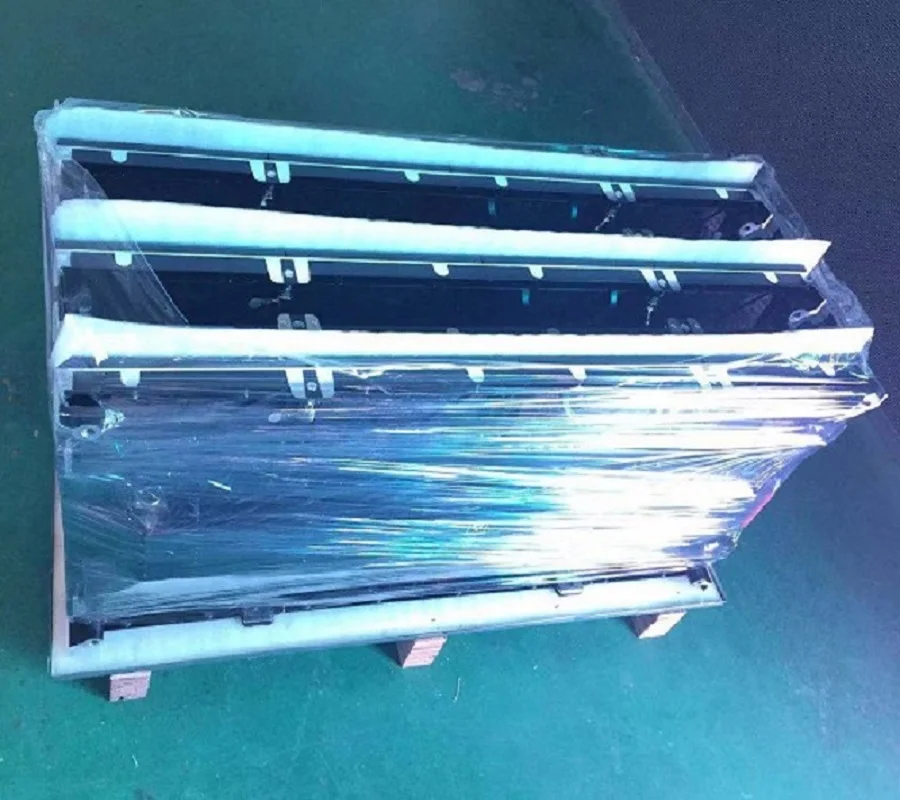

For die-casting aluminum cabinet of LED rental stage display screen, we use flight case to pack.

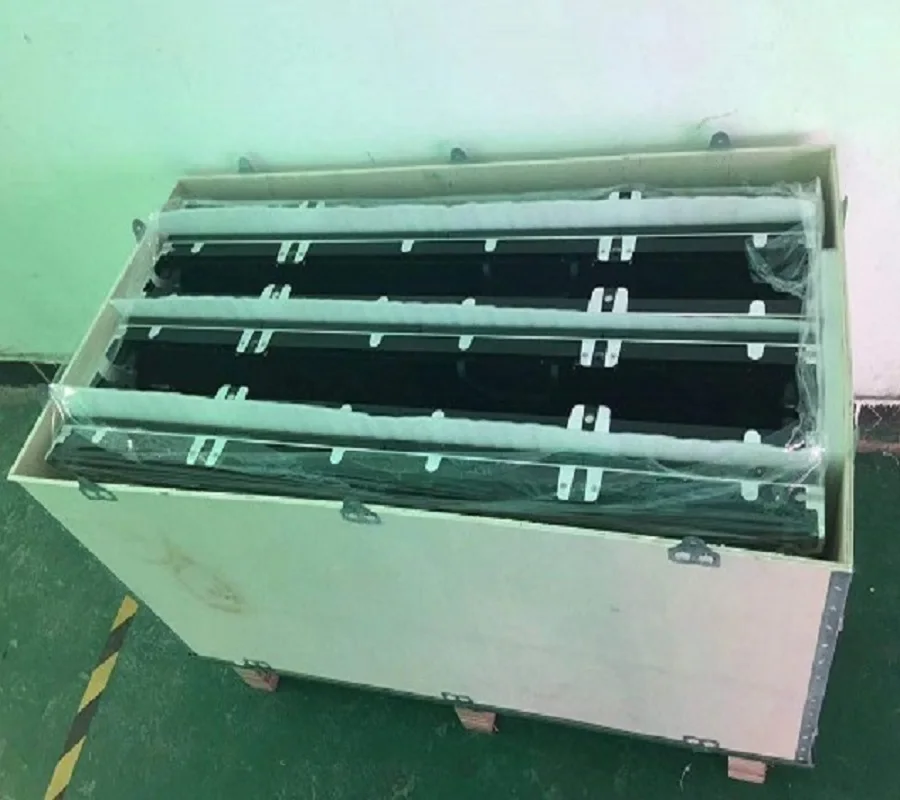

One wooden case include 2 cabinets, one flight case include 6 die casting aluminum cabinets
By air or by sea! FOB or CIF
