Main Technical Parameters:

Pixel  Pitch 2.5mm
LED  Type SMD
Pixel  Density 160,000  dot/  m2
Module  Size 160*160mm
Frame  Size 930mm(L)*435mm(H)*170mm(bottom)/90mm(top)
Frame  Material Aluminum
Screen  Size 800*320mm
Screen  Resolution   320*180dot
Brightness and gt;=5500  nit
Contrast   and gt;8000:1
View  Angle 150°(H)/150°(V)
Scan  Model 1/32  scan
Power  Supply  Input DC9–24V
Max  Consumption 240W
Average  Consumption 80W
Frame  Frequency 60-85Hz
Fresh  Frequency and gt;1920Hz
Optimal  Viewing  Distance 3–30M
Driving  ICs MBI5124
Life  Span 100000Hours
MTBF 10000Hours
Control  Method Asychronous
Control  Model 3G/4G/WIFI/  Ethenet/  USB
Temperature  Operating -40°~+70°
Working  Humidity 10%–90%RH
Screen  Protection Waterproof,  rust-proof,  dust-proof,  anti-static,  anti-mildew
Power  Protection over-temperature/over-current/  over-voltage  protection
Screen  Weight 15KG
Package   Honey  Box





Advantages:

1. High refresh rate, with good displaying effect.
2. This is new trend for taxi top advertising, could bring you profit in a short time.
3. With GPS function.
4. Cloud platform, with endless memory.

5. LED taxi roof sign with double-sided screens, could reach more people as possible.

6. taxi roof advertising led display supports 3G/ 4G/ Wifi/ Ethernet/ USB.

7. High protection level, IP 65. Protect it from water and dust.

8. Cabinet color can be customized.

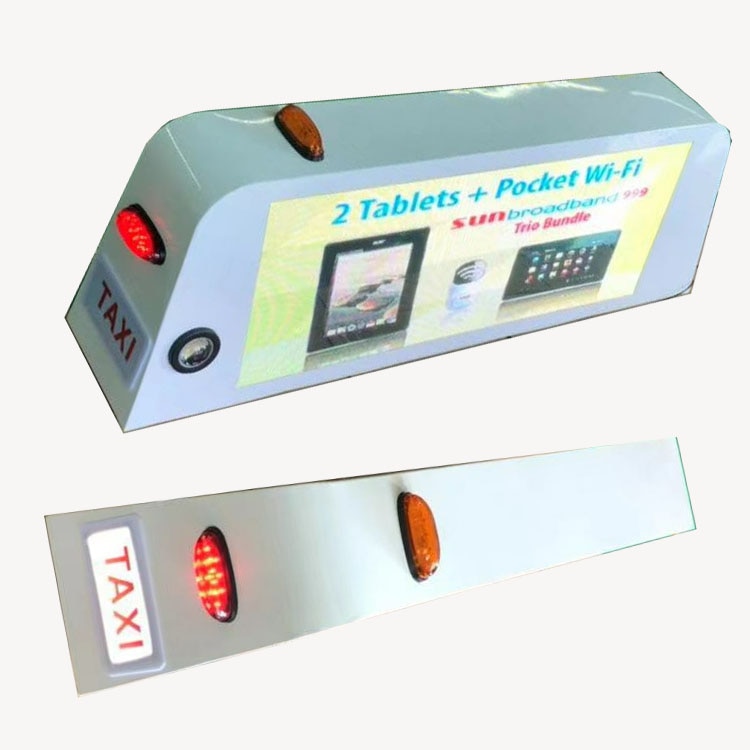

Detail images:





Case pictures for you  reference:

3G/4G internet program issue, GPS location can issue the info to any led taxi from any internate computer or app phone.



Our services:

B: Real Taiwan Chip + High quality suit, CE,ROHS,FCC certification factory.
C: Sure Dispaly from factory is 100% test done and not any quality problems, we will responsibile it if have any quality problems.
D: We offer 2 years warranty to our product.
E: Customized design is available.
F: Special discount are offered based on order quantity.
