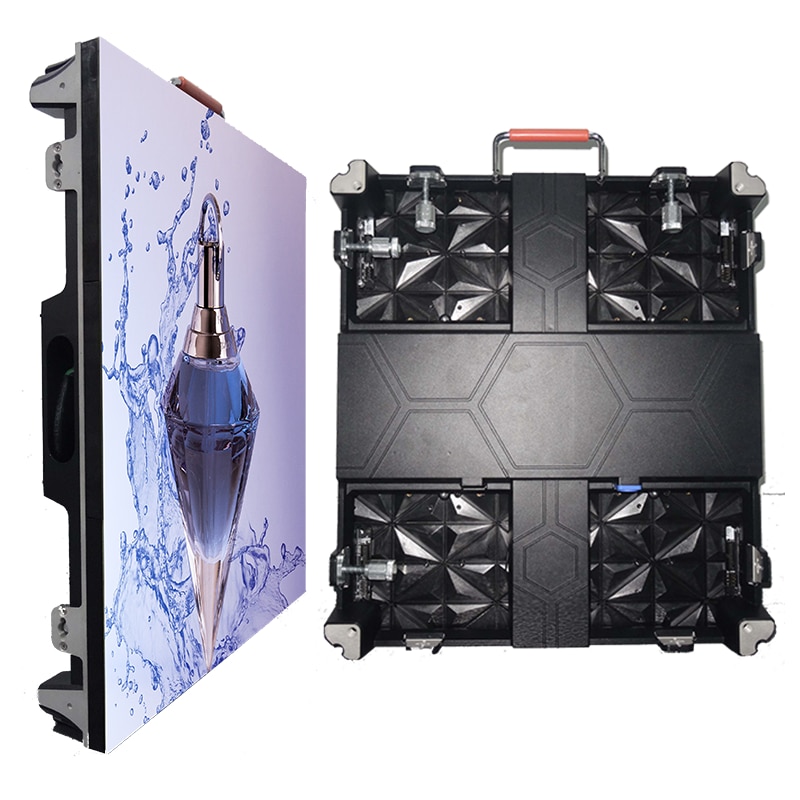

P2.0 high resolution led screen video panel

P2.0 high resolution led screen video panel

P2.0 high resolution led screen video panel


Main Technical Parameters:

Model

p2.0

Pixel pitch(mm)

2.0mm

LED configuration

1R1G1B

LED type

SMD

Module size(mm)

240(W)*180(H)

Module resolution

120*90

Scanning mode

1/30

Brightness(CD/square meter)

800

Grey scale

16bit

Refresh rate(HZ)

3840

Drive mode

constant current drive

Viewing angle(Deg)

160/150

Cabinet size(mm)

480(W)*540(H)

Cabinet resolution

240(W)*270(H)

Cabinet power consumption(Max)

160

Cabinet power consumption(Average)

55

Cabinet weight(KG)

10

Cabinet material

Die casting aluminum

Display color(Million)

16.7

Input voltage

AC110V-220V +/-10%

Refresh frame frequency(HZ)

50-60

Protection level

IP45

Working temperature(℃)

-40-+60

Storage humidity(RH)

40%-60%

Features:

1. High resolution and high refresh rate,3840HZ.
2. The cabinet is strong and lightweight because it’s made of die-casting aluminum.
3. Be assembled 16:9 ratio. Ultra high definition 1080P, 2K or 4K.
4. Pure black LEDs.
5. It supports front service.

Fully front service:

No delay.

High grey scale under low brightness.

Aging test:

Company Information

Certifications

Production Process

Our Advantages

1. Providing excellent customer service and technical support.
2. We have very strict quality control system for every production procedure.
3. We introduced advanced technology equipment, we can deliver products on time. No matter samples or customized products.
4. We have experienced the technology engineers team and sales team to answer and solve all your concerns matters.
5. Our products passed CE, FCC and RoHS certificates.
6. The best price. If you wanna get a completed quotation welcome to contact me. Thank you!
