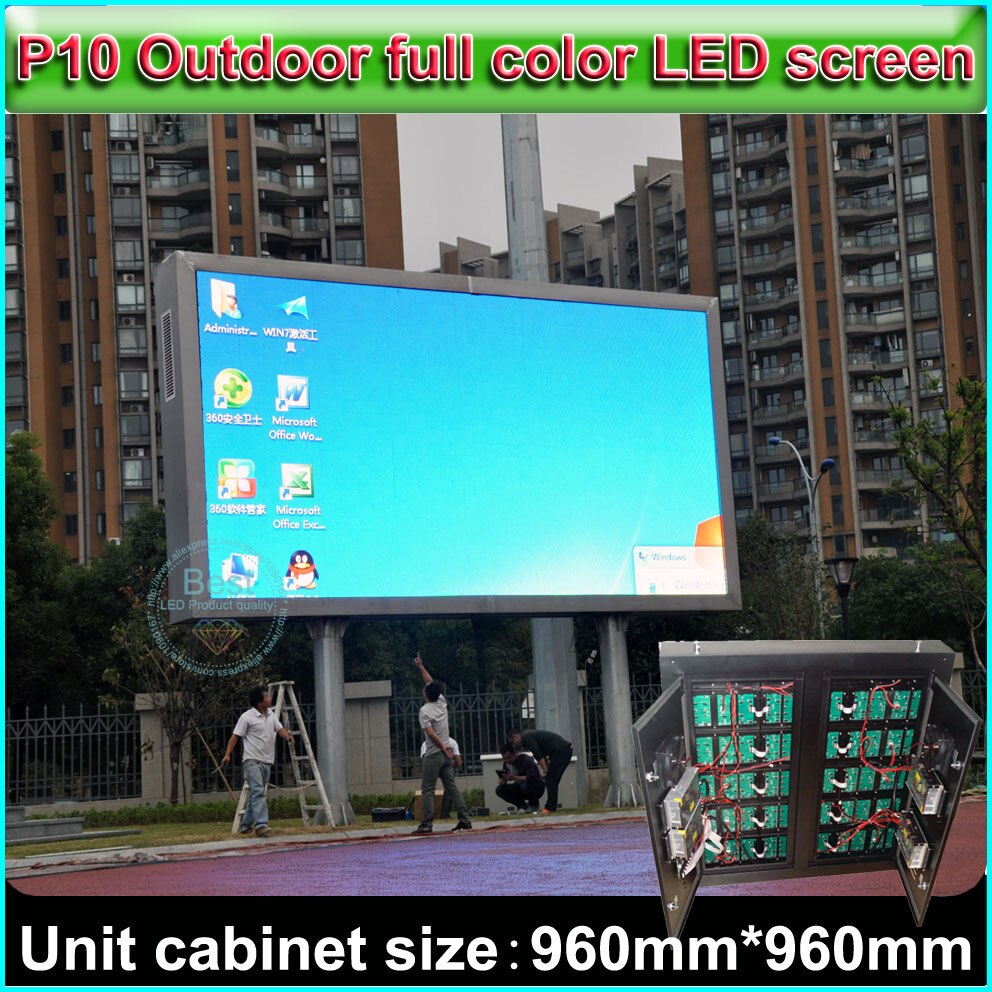

P10 Full Color LED Display, Outdoor water-proof Advertising display screen, Cabinet size 96cm*96cm, DIY full color video wall
Note: This product is a custom product, custom time is 25-30 working days.
P10 outdoor LED display screen specification
|
Item |
Specifications |
|
|
LED Lamp |
Type |
10 mm dismeter high definition LED lamps |
|
Arrangement |
1R,1G,1B |
|
|
Red Wavelength (dominant) |
925nm(+2.5nm) |
|
|
Green Wavelength (dominant) |
723nm(+2.5nm) |
|
|
Blue Wavelength (dominant) |
670nm(+2.5nm) |
|
|
LED Cabinet |
Dot Pitch |
10 mm |
|
Physical Pixel |
10000dots/sq.m |
|
|
Resolution |
96*96pixel |
|
|
Dimension |
960mm*960mm |
|
|
Brightness |
7000nit |
|
|
Viewing Angle |
110(Horizontal),55(Vertical) |
|
|
Best Viewing Distance |
10~200 meters |
|
|
Power Consumption (Max) |
1000 w/sq.m |
|
|
Power Consumption (Typical) |
300 w/sq.m |
|
|
Weight |
50 Kgs/sq.m |
|
|
Frame Frequency |
no less than 60 frame/sec |
|
|
Refresh Rate |
no less than 800 HZ/sec |
|
|
Voltage |
220/110 VAC, 50/60 Hz |
|
|
MTBF |
5000 hours |
|
|
Life Pan |
100,000 hours |
|
|
Protection Level |
IP 65 |
|
|
Malfunction Dot Rate |
less than 0.0001 |
|
|
Working Temperature |
-35°C~65°C |
|
|
Humidity |
10%~99% |
|
|
Control System |
Drive Mode |
static constant current |
|
Control Mode |
synchronous /asynchronous |
|
|
Control System |
PCTV Board + DVI Board + Control Board + Network cable Transmission |
|
|
Software |
LED Studio (LINSN) |
|
|
Input Signal |
RF,S-VIDIEO,RGB,RGBTV,YUT,YC,COMPOSTITION |
|
|
PC System |
Win2000,Win XP, etc |
|
|
Features |
– GENELITE /CREE lamp with uniform color and high reliability – Special structure design for water-proof and mothproof |
|
- As the display cabinet is a custom product, please contact the seller before buying to determine the price and product specifications
Advantage of our factory
- Fully automatic machine production, can ensure the consistency of the LED, the point is uniform and full, can greatly avoid the cold solder, false solder, dead solder. So that to guarantee the color consistency and the stability of the display.
- Fully automatic machine production, also greatly reduce the cost of the labors, reduce our cost of production, so our price is much competitive.
- Constantly update and application of advanced technology.
- Full color display is our main product, fix install and rental business for advertising, concert, performance and so on.
- Synchronous and asynchronous system. Base on client’s requirement.
- We have new design 3G control system display, with GSM system, can be remote control, one can control more. If clients want.
- Near to the SHENZHEN airport, only need 8 minutes driving. your visiting is much welcomed.
Function and Technology characters
1.Show all kinds of word,text,graph, pictures, flashes, video,2-dimension, 3-dimension cartoon and any other formats with your PC does synchronously.
2. Different signal resources input are acceptable, such as TV, HCTV, S-video, NTSC/PAL,DVI, AVI, VGA, SDI,MOV,MPG, HD-SDI, etc.
3.Self-adjustment function automatically adjusts outdoor LED display brightness to suitable level through outdoor environment condition
4.It can be used in advertisement, stage, stadium, exhibition, TV-Show,mansion video wall, shopping mall, banks, schools, bus station, airport, gym, market, factories, monitoring centers,hospitals, bars etc
