outdoor Rental P5.9 p3.9 p4.8 LED display / die casting aluminum led display
Our Product line:
1) Rental led display:p2.6P3.91,P4.81 p5.95
2)Indoor LED display: P3,P4,P5,P6,P7.62,P8,P10
3) Outdoor LED display: P4,P5,P6,p5.95 P6.25,P8,.,P10 .
Features:
1.HD
2.Ultra thin and ultra light
3.Low attenuation,high gray level,good stability,anti-static

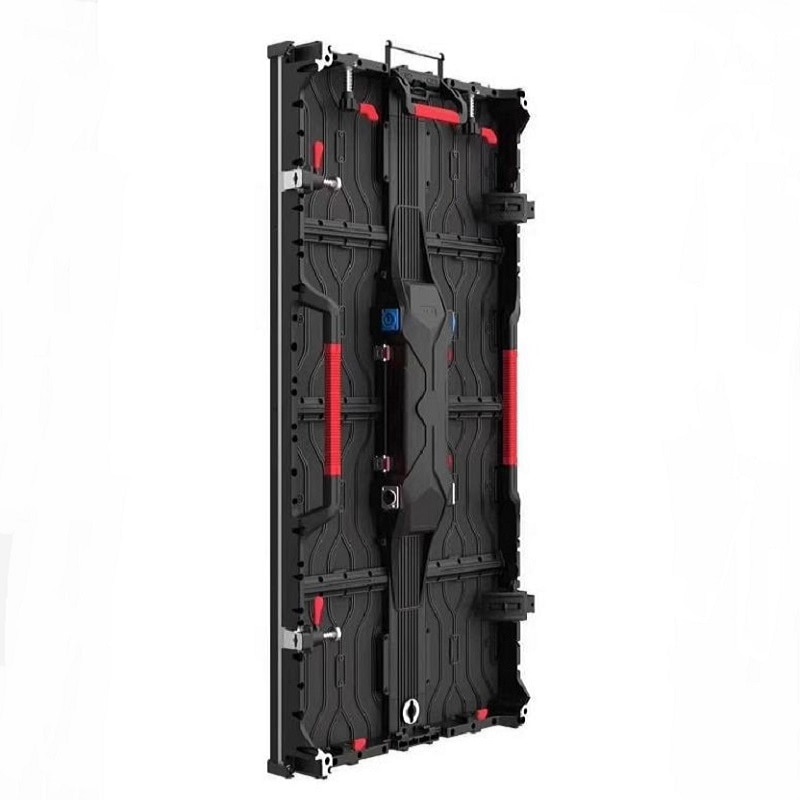

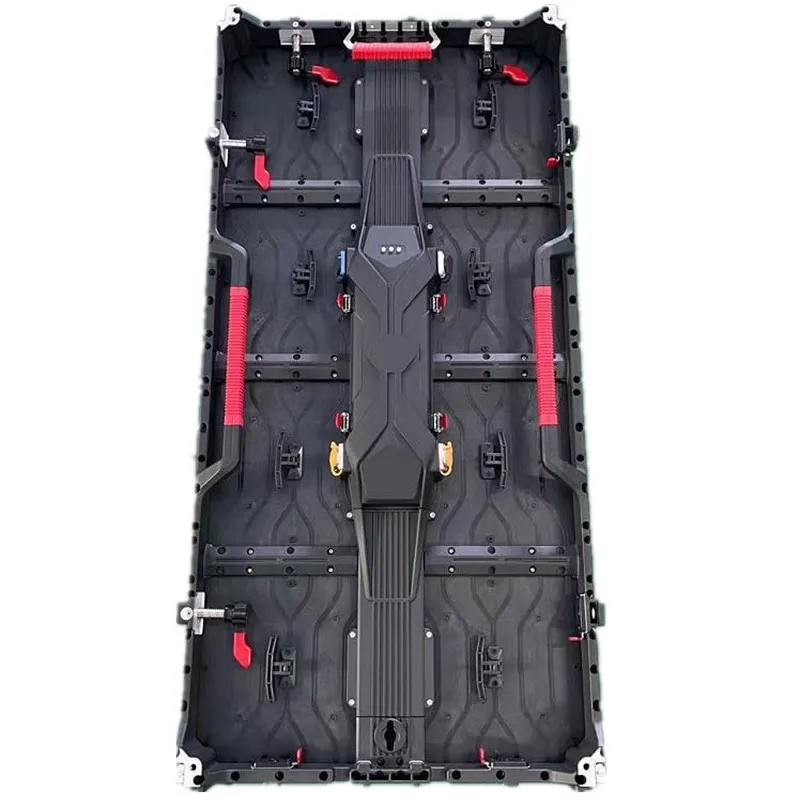

4.Entire die casting aluminum cabinet 500*500mm or 500*1000mm
Product parameters
|
Item |
P2.6 3.9 4.8 |
|
Chip |
Epstar |
|
Chip size |
Red 9 mil, Green 12. Blue 12mil |
|
Light type |
SMD |
|
Pixel Pitch |
2.6 /3.9 /4.8mm |
|
Module Size |
250mmX250mm |
|
Module Resolution |
96*96 64*64 52X 52(dots) |
|
Density of pixel |
28224dots/m2 |
|
Pixel configuration |
1R1G1B |
|
Red wavelength |
625±2nm |
|
Green wavelength |
525±2nm |
|
Blue wavelength |
470±2nm |
|
Colors |
16777216 |
|
Best viewing distance |
≥2m |
|
viewing angle |
120°/90° |
|
Maximum power consumption |
22W |
|
Brightness |
6500cd/m2 |
|
Gray scale |
14bits per color |
|
Color temperature |
6500k |
|
Control method |
Synchronization or Asynchronization |
|
Driving method |
1/48 32 26 scanning |
|
Frame frequency |
60Hz |
|
Refresh frequency |
≥600Hz |
|
Working Voltage |
DC5V |
|
IP grade |
IP65 |
|
MTBF |
More than 8000hours |
|
Life Span |
80,000hours |
For die-casting aluminum cabinet of LED rental stage display screen, we use flight case to pack.
One wooden case include 2 cabinets, one flight case include 6 die casting aluminum cabinets
By air or by sea! FOB or CIF
ASLLED Co., Ltd. was founded in June 2002 of which headquarter is located in PingHu High-tech Development Zone of ShenZhen China.ASlled specialized in LED display. From manufacturing, R and amp;D to engineering installation, we provide one-stop service.
At present,annual production of LED display module amounts to 300 thousand and still being sustainable cincreasing .
Our products have obtained silver medal of Chinese Famous Brand Exposition,GuangDong Province Famous Brand Product and ShenZhen Famous Brand.
And our company has passed ISO9001 quality system certificate; products have passed CCC, CE, RoHS, UC certificate.
ASLLED has won wide trust and good repute due to its stable quality, reasonable price and professional service.
In the path of development, we have realized that it is important to regard customer as the center.
We will as always carry on the spirit of enterprise- dedication, teamwork, innovation.
Welcome to ASLLED TECHNOLOGY!
