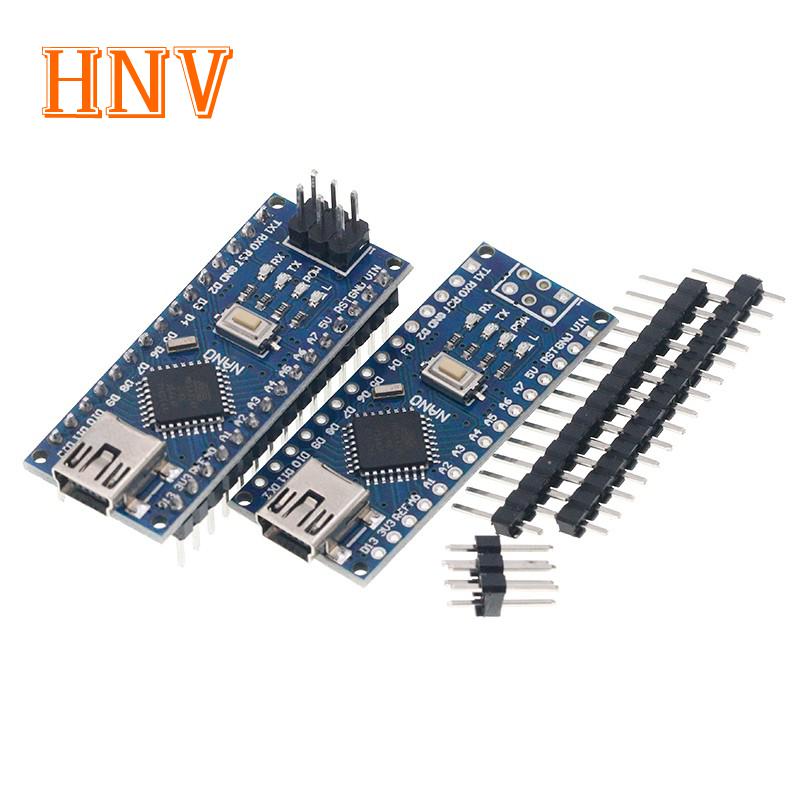

NANO V3.0 Controller Terminal Adapter Expansion Board NANO IO Shield Simple Extension Plate For Arduino AVR ATMEGA328P

SALE 5% OFF

NANO V3.0 Controller Terminal Adapter Expansion Board NANO IO Shield Simple Extension Plate For Arduino AVR ATMEGA328P




CH340 USB Driver, atmega328P main IC, bootload has been written to the board.



CH340G Replace FT232RL

8 analog inputs ports:A0 ~ A7

14 Digital input / output ports:TX,RX,D2 ~ D13

6 PWM ports:D3, D5, D6, D9, D10, D11

1 pairs of TTL level serial transceiver ports RX / TX

Using Atmega328 MU/     Atmega328 AU

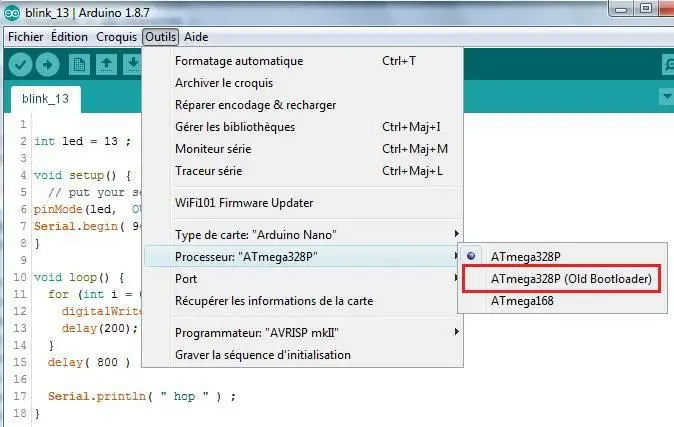

There is bootloader installed in it

Support USB download and Power

Support for external 5V ~ 12V DC power supply

Support power supply by 9V battery

Support ISP download
Atmega328P-AU and  Atmega328P-MU Chip is same function
