Feature

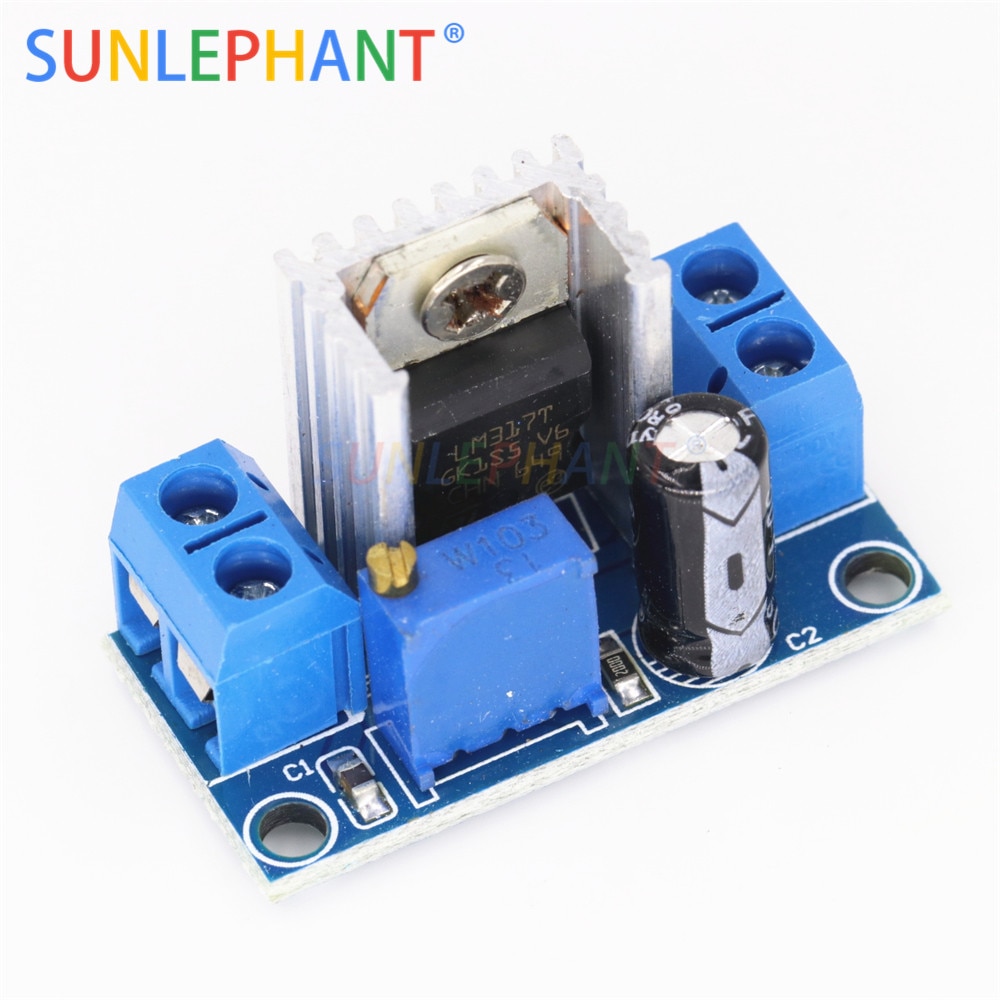

Name: Adjustable Linear Regulator
Output Current: 1.5A (minimum), 2.2A (typ)
Input and output voltage difference (VI-VO): 40Vdc (max)
Adjustable output voltage range: 1.2 ~ 37V
Operating temperature: -55 to +150
Output Current: 1.5A
Input voltage: 4.2 ~ 40 V
Characteristics Frequency: 100 (MHz)
Module size: 35.6 (mm) x16.8 (mm)
Input: VIN positive input stage, GND negative input
Output: VOUT output positive level, GND output negative
Maximum output current: maximum output current = 3 / (Input voltage – output voltage)
Applications
Mobile phone, MP3, MP4, PSP and many other charging equipment
