Main Feature

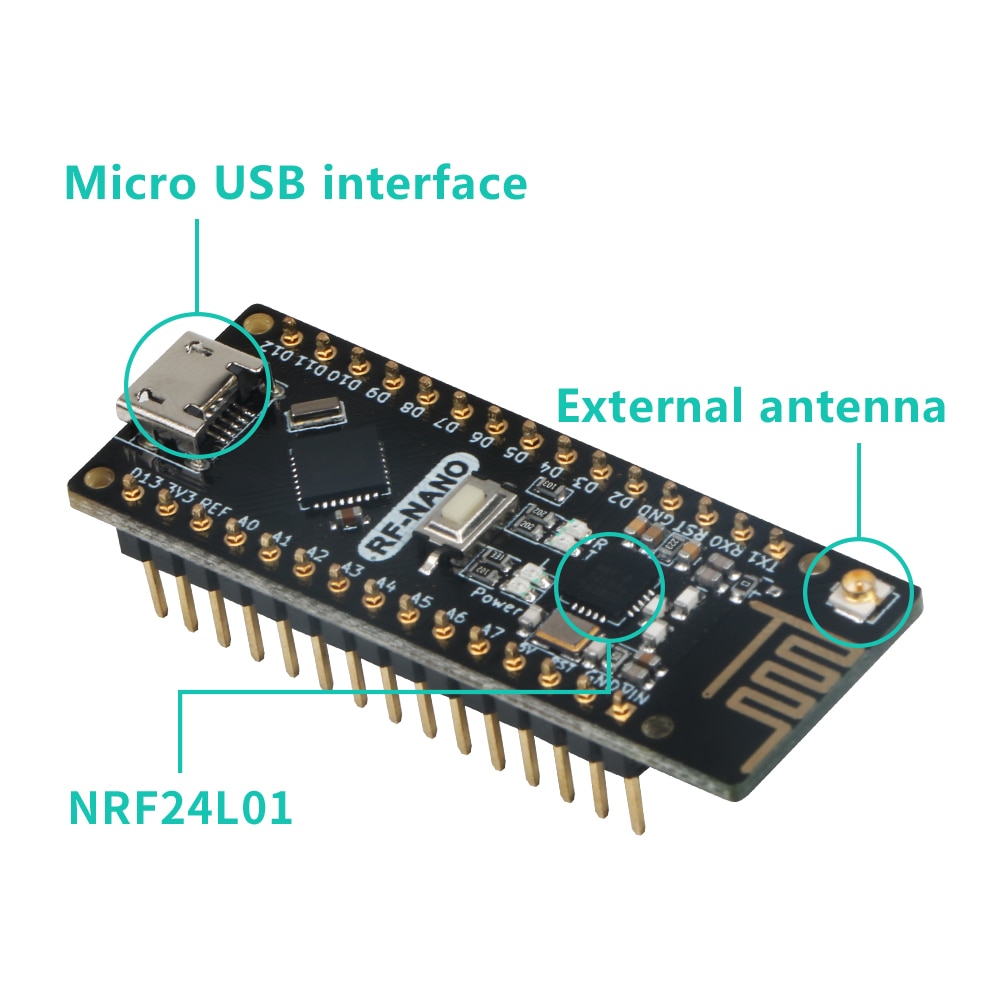

1.Creative products, RF-Nano-Board: Keywish Upgraded nano board for arduino, The main chip is ATMEGA328P-MU QFN32,the latest bootloader (Arduino IDE 1.8.8) was burned down. It is fully compatible with the common nano board. RF-Nano-Board is PIN-PIN with Arduino Nano V3.0,and share the same codes.
2.More convenient for application: Emakefun RF-Nano-Board integrates a NRF24L01+ module with arduino nano v3.0 board, which is very convenient for 2.4G wireless connect application.
3.High quality material and Technology: We used high quality PCB original material and Immersion Gold Technology to make sure every board has smooth edge and more reliable.
4.Super small volume design, more convenient to use: The PCB size is only 48mm*19mm, the pin is fully compatible with Nano V3.0,No Soldering needed. The micro usb port is more convenient to use.
5.Complete Information reference: Keywish RF-Nano-Board using CH340 chip to UART, you can download mac, windows, linux three system drivers, data sheets and schematics and other informations from , we provide quick and free support.
Specification:
Microcontroller ATmega328P
Nrf24L01+ 2.4G wireless
Architecture AVR
Operating Voltage 5 V
Flash Memory 32 KB of which 2 KB used by bootloader
SRAM 2 KB
Clock Speed 16 MHz
Analog I/O Pins 8
EEPROM 1 KB
DC Current per I/O Pins 40 mA (I/O Pins)
Input Voltage 7-12 V
Digital I/O Pins 22
PWM Output 6
Power Consumption 19 mA
PCB Size 48 x 18mm
Weight 7 g
Package including:
Keywish Nano x1
Note: Please use Arduino IDE1.8.6or higher version, First,install the CH340 driver,thenfollow this selection path in Arduino IDE：Tools – Board“Arduino Nano” Processor “ATmega328P”,
otherwise you’ll find that you can’t burn any program. Please refer to our github link,it can help you to slove any problem.

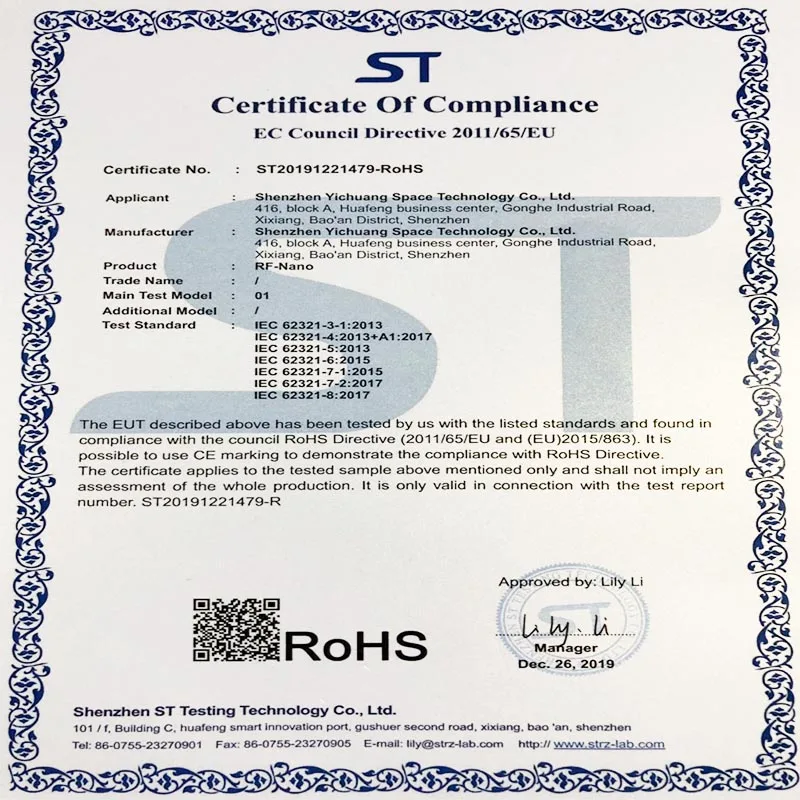

RoHS Certificate
