Indoor Full Color LED Display Screen 500x1000mm Size 4.81mm Pixel Pitch HD RGB LED Panel Rental LED Matrix Screen Free Shipping

Indoor Full Color LED Display Screen 500x1000mm Size 4.81mm Pixel Pitch HD RGB LED Panel Rental LED Matrix Screen Free Shipping

P4.81 Indoor LED Display panel

500x1000mm die cast aluminum cabinet

Product parameter:

  1. Module Size: 250mmX250mm.

  2. Module Pixel Pitch: 4.81mm.

  3. Module Resolution: 52dotsX52dots.

  4. Pixel Density: 43264dots/sqm.

  5. Color Configuration: 1R1G1B 3 in 1.

  6. LED Package: SMD2121.

  7. Drive Mode: 1/13Scan Constant Current.

  8. Cabinet Size: 500mmX1000mm.

  9. Cabinet Resolution: 104X208 pixels.

  10. Cabinet Material: Die casting aluminum.

  11. Cabinet Weight: 13KG.

  12. Refresh Rate: 1920HZ(adjustable).

  13. Frame Rate: 120frame/sec.

  14. Grey Scale: 16.7M colors.

  15. Interface: Aviation plug.

  16. Brightness:800-2500 cd/sqm (adjustable).

  17. Best Viewing Distance:3m-30m.

  18. Viewing Angle: H: 160°; V:160°.

  19. Color Temperature: 256 level(adjustable).

  20. Power Input: AC110V/ 220V, 50HZ/60HZ.

  21. Ave Power Consumption: 280W/sqm.

  22. Storage Temperature: -30~+70 degree.

  23. Working Temperature: -20~+50 degree.

  24. IP grade:IP50/Not waterproof.

  25. Operating Humidity: 10%~95%.

  26. Blind Spot Rate: and lt;1/10000.

  27. Life Span: and gt;100,000 Hours.

  28. Warranty: 3 Years.

  29. Control Method: Synchronous, Asynchronous, 3G,WIFI,USB.

  30. Video Signal Mode: RF, S-Video, RGB, RGBHV, YUV, YC etc.

  31. Certificate: CE, FCC, PSE, RoHS.

product Features:

The product adopts high-strength structural die-cast aluminum,

light structure, good heat dissipation, energy saving and power saving,

convenient installation, uniform gray scale, and high refresh rate,

the module can be magnetically fixed for front maintenance.

Product display

There are many styles of 500X1000 die-cast aluminum cabinets to choose from. If the buyer does not specify which one is needed, we will ship it randomly.

LED display distinguish between indoor and outdoor,

Outdoor LED display:With waterproof rubber ring,PCB board sealing,waterproof,High brightness.

Indoor LED display:No waterproof rubber ring,PCB board exposed,Not waterproof,cheap price.

if you need Outdoor LED display, please click the picture below to buy, or contact us.

If you need Indoor 500X500mm size die-cast aluminum cabinet , please click the picture below to buy, or contact us.

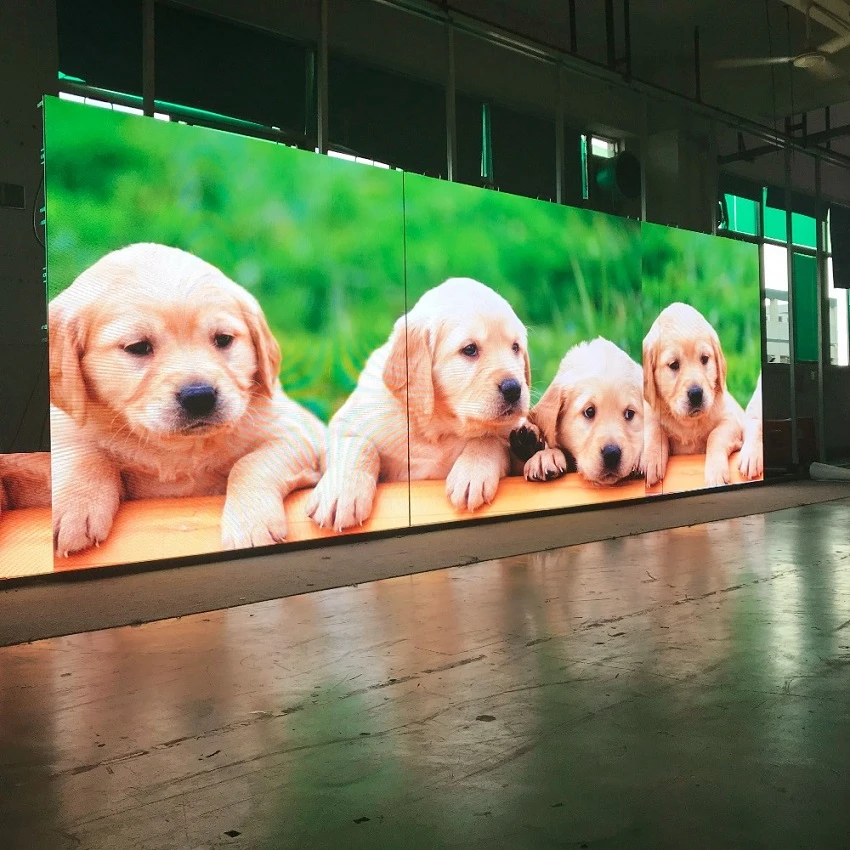

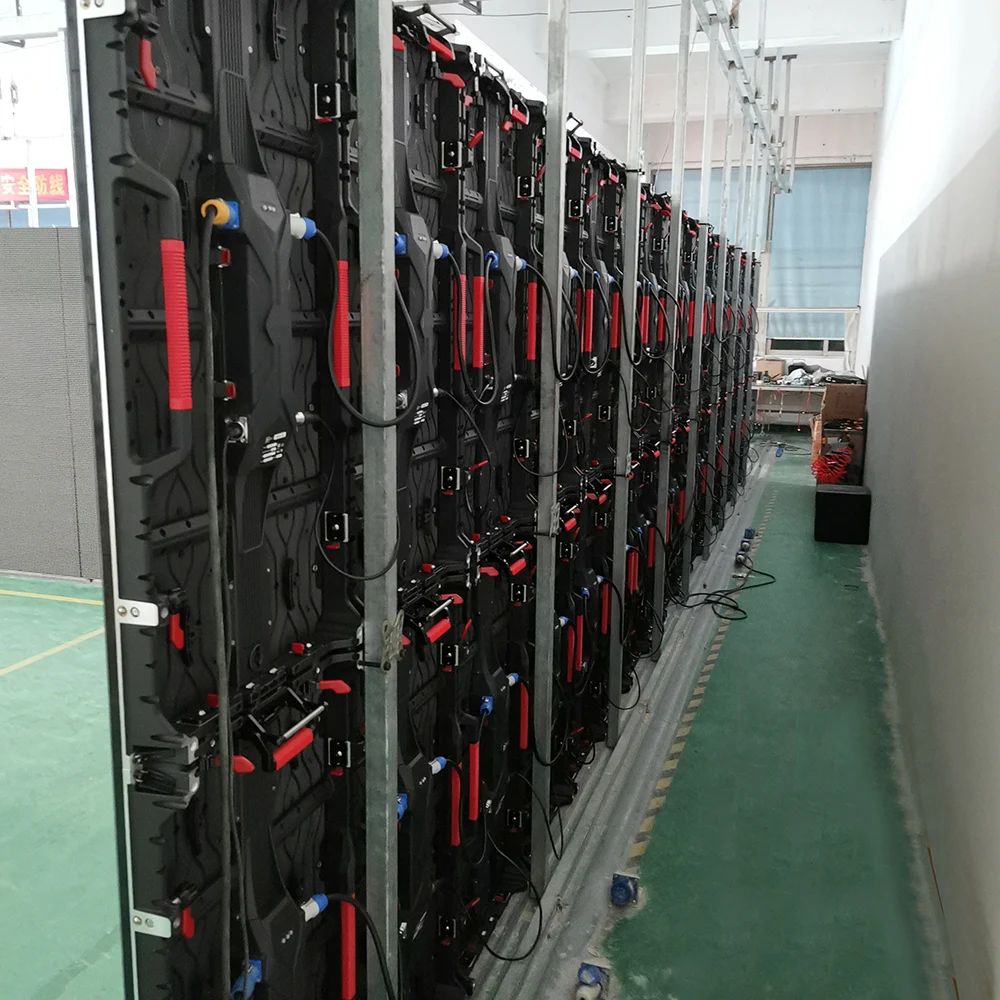

LED display pre shipment test:

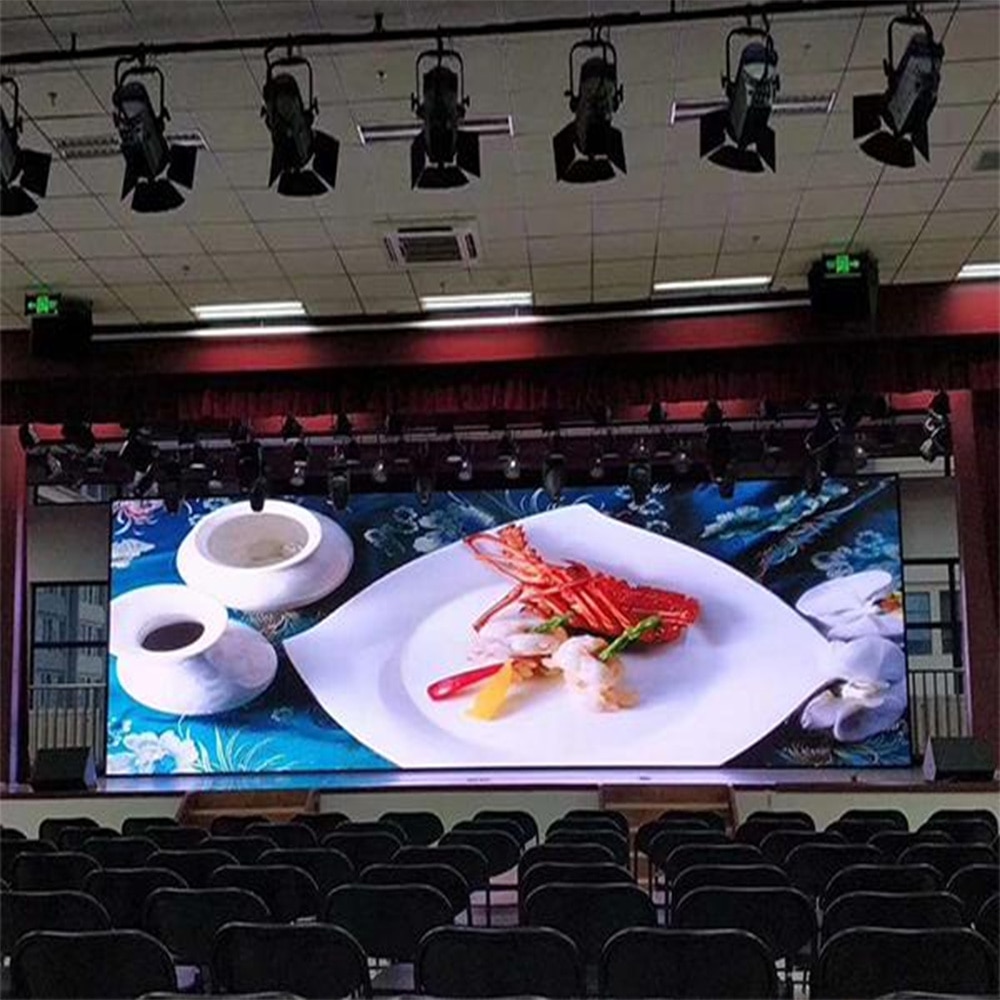

Project display:

Products Recommended:

We have different types of LED cabinets for indoor and outdoor use. If you need other specifications, please contact us. We can customize the LED display you need.

Display installation method:

Tips:

1. About LED controlle

  1. The price does not include the sending card and video processor, please contact us to buy if you need it.

  2. The screen panel power supply and receiving card will be replaced according to customer needs, so it may be different from the picture.

2. About different batches of LED displays

  1. Due to product upgrades, the batches of LED modules are different, and the module plastic casing, chip IC, PCB board, screw position, LED color, cabinet and other components may be different from the picture.

  2. LED displays of different batches or LED displays of different companies are not compatible, please do not mix them together.

  3. If you buy LED displays at different times, we will not guarantee that their appearance is the same.

  4. If you buy it for repair, please contact us to confirm whether it is the same batch before placing an order.

  5. If you want buy multiple LED modules to build a large screen, but had to buy multiple times separately, in this case, please contact us at the first purchase, so that we can Mark batch number of the LED modules for you, and let us confirm whether it is possible Keep enough of the same batch of LED modules for you to purchase multiple times, and complete the purchase within a specific time.

our company:

1.We are a LED display manufacturer integrating R and amp;D, production, sales and after-sales service.

2. We have rich professional knowledge and advanced production equipment, which can provide customers with low-cost and high-quality products.

3. We provide customized LED products you need.

4. We have an experienced professional technical team that can provide you with technical support,Help you solve the problem of LED display project.

5. We can reissue the goods lost due to the delivery period for free.

6. Our products are sold all over the world, and have won unanimous praise from customers all over the world with high-quality products and high-quality after-sales service.

Our packaging and delivery:

1.The best packaging method will be selected according to the quantity of different products.

There are usually cartons cases, wooden cases, and flight cases to choose from.

2. We provide air or sea freight according to the customer’s need to deliver products quickly or need a cheaper transportation method,

Logistics company usually used for delivery (DHL / FedEx / UPS / TNT / EMS / AliExpress Standard Shipping, etc.)。

3.Delivery time depends on the courier company ,the destinations, the local customs and other factors;

We hope it arrive on time, but this international delivery shipping time will be highly depends on the courier company and local customs,

hope you can understand if there are any shipping delay caused by above reasons.

If you are interested in our products, please feel free to contact us,Looking forward to a good start and a long-term partnership with you!
