This listing is a GQ brand Top Selling Model programmer.
PRG-055 Product version:
GQ Programmer Hardware version: GQ-4X4 (upgrade version of GQ-4X)
GQ Programmer Software version: 7.11 or above
Warranty:
We offer one-year factory warranty
The package includes:

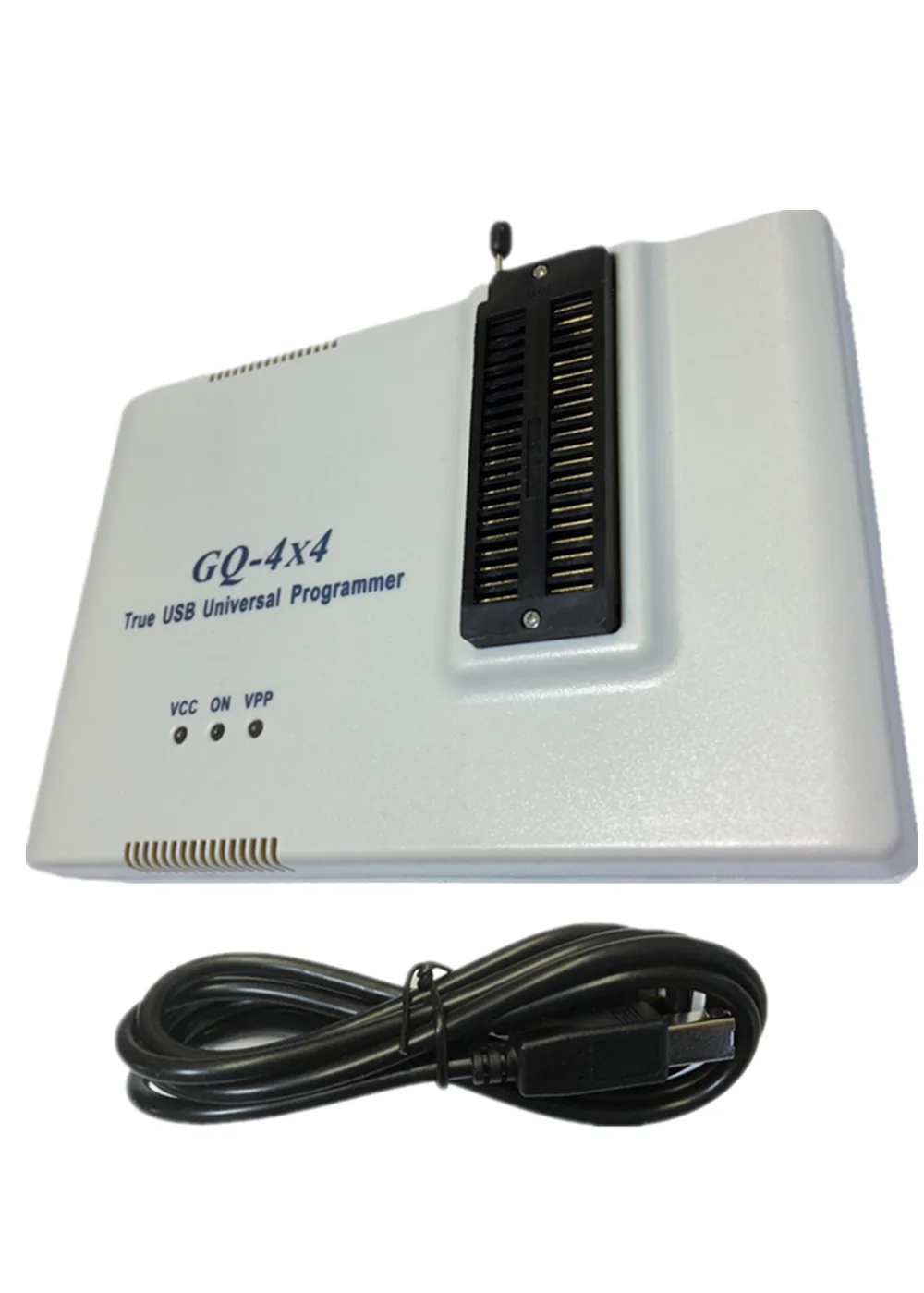

One GQ-4X4 True-USB Willem Programmer (high quality 40pin ZIF socket)
One black USB Cable (for both power supply and data communication)
Also, customers can always download the newest software at our company website
More readings:

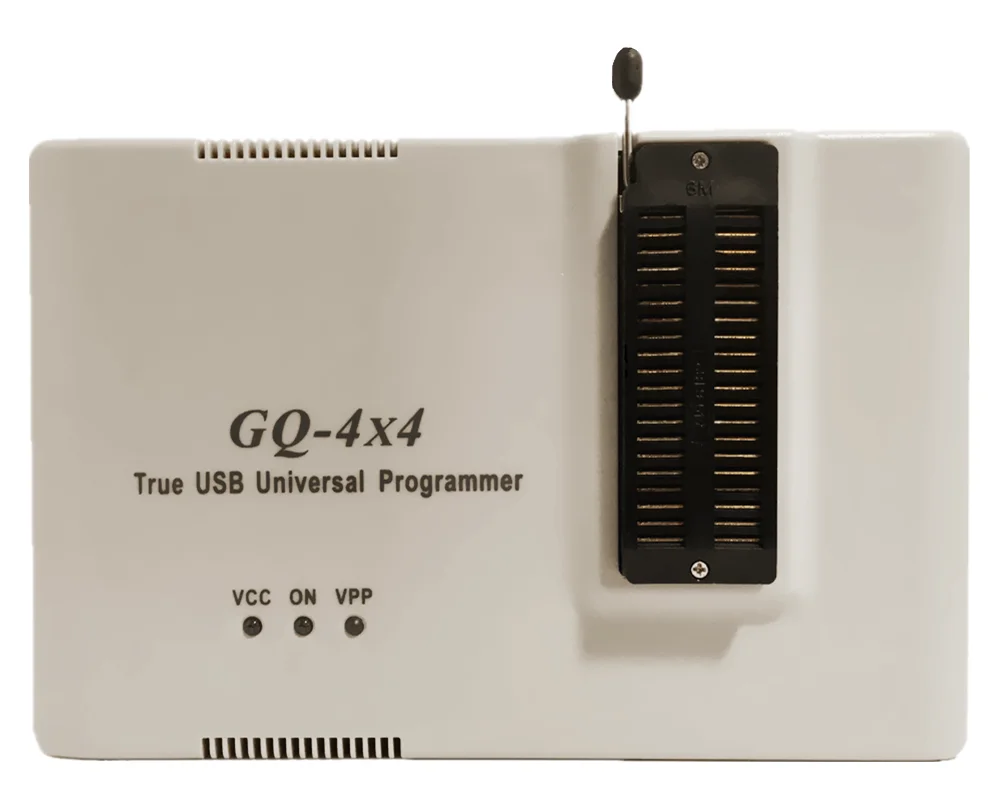

This GQ-4X V4 (GQ-4X4) programmer is the enhanced and amp; upgraded version of GQ-4X and newly launched in the market.
GQ-4X is the most popular model of True USB Willem Universal Programmer series from MCUmall Electronics Inc Canada.
With its complete new professional design, GQ brand True USB PRO 40pin Willem programmer GQ-4X is the first and amp; exclusive Willem universal programmer in the market that owns the unique features
Neat robust enclosure; 40pin ZIF socket, fully automatic; JTAG support; Fast mode SPI support
Support O/S XP 32bit, XP 64bit, Vista 32bit,Vista 64bit, Windows7 32bit/64bit; Windows 8, Windows 10 (English)
Real True USB interface for both data transfer and power supply
High speed/fastest; most-user-friendly; simple-to-use
Multi-languages support capability: Chinese, Czech, English, French, German, Spanish, Portuguese and etc.
Software update regularly; free lifetime software upgrade/download from company website;
The application-oriented and amp; application-enhanced design facilitates GQ-4X supports thousands of most popular application devices (growing) and ideally suits the portable/convenient applications that includes: car automotive field ECU chip tuning, airbag reset, mileage, satellite devices, BIOS refreshing, motherboard BIOS in-circuit upgrade, Xbox,Wii gaming machines EPROM duplicate, Altera Xilinx JTAG, PIC/MCU development, newer laptop technology and newer desktop PC etc.
It has outstanding performance which supports the devices that other similar products are not capable of supporting: such as 25LF SPI series, PSOP44, TSOP48, 25VF SPI series, Altera Xilinx CPLD JTAG, PLCC84, SST39VF3201, TE28F102, 27C1024, 27C1028, HD6475,29F800, 29LV800, 29F032…
Features:
1. Complete new professional design with own robust enclosure and 40pin ZIF socket
Neat robust enclosure is designed to suit the portable and field convenient applications
40 pin of the ZIF socket supports more chips without the adapter
First and only Willem programmer with 40pin ZIF socket, other models use 32pin ZIF
The software and amp; hardware are Designed/developed by MCUmall Electronics Inc. Canada
Assembled in Canada and post-sales support by MCUmall Electronics Inc.
2. Fully automatic and amp; no manual set-up needed (eliminate all jumpers and amp; DIP-switch)
Fully automatic for efficient use and extends the programmer lifetime
Eliminates all jumpers on board, manual set-up for jumpers is no longer needed (all non-USB Willem use jumpers: 16 jumpers on PCB5.0C, 48 jumpers on Willem 1.5)
Eliminate the on-board DIP switch, manual set-up for DIP switch is no longer needed.
This also makes much easier and amp; very simple to use for end users.
Plug-and-play reduces the learning curve and save your precious time.
3. Fast mode SPI programming and amp; JTAG support wider the application
Useful for motherboard BIOS in-circuit upgrade Altera Xilinx CPLD JTAG support
4. True USB data transfer interface with PC/Laptop for newer laptop use as well as portable application.
Uses only one USB cable to connect with PC/Laptop USB port for both data transfer and power supply. The bulky DB25 data cable is eliminated and amp; no longer needed for data transfer between PC and programmer board.
It is True/Real USB data transmission protocol (USB-USB), Not via Fake/Pseudo-USB data communication.
Fake/Pseudo USB data transfer needs the middle serial or parallel port conversion: USB-Serial-USB conversion or LPT-USB conversion, this limits the programming speed significantly.
GQ-4X features the same revolutionary data interface as GQ-3X, the True USB data transmission with PC/Laptop.
5. Exponentially speed increase up to 20 times faster
Connects PC via high-speed USB link, provides the fastest possible data transfer rates for programming/reading data from target IC’s.
It is capable of being up to 20 times faster than other existing printer port Willem (parallel LPT Willems: PCB6.xx, PCB5.0C, PCB4.5C) programmers on reading and amp; verification a high-density flash device, this significantly saves your time and increases work efficiency as well as facilitates small scale production.
Assembly language written programming algorithms run fast and reliable. Not affected by the PC speed changes and Windows 0/S variations.
6. Dual power supply capability: USB port and amp; AC/DC and automatic voltage control,
Vcc supported among: 3.6V, 5V, 5.5V, 6.5V
On-Board MCU for stable performance and amp; automatic/accurate voltage control.
Works best among other programmers for EPROMs,
7. The GQUSB software is especially developed for True USB Willem programmers GQ-4X4, GQ-4X,GQ-3X, GQ-2X
Free Lifetime software download/upgrade, please click here for software revision history
Updates software and device algorithm regularly
Free IC device updates via web
Supports O/S: Win98SE, Me, XP, NT, 2000 and amp; WinXP 64bit, Vista 32bit, Vista 64bit Windows7 32bit 64bit, Windows 8, Windows 10 (English)
Advanced software engineered to provide most user-friendly interface and amp; simplest and easiest-to-use Willem programmer version to save time and comfort to use
Multi-language support, such as: English, German, Spanish, Chinese, French, Czech, Portuguese
Programming history memory function on-board
Supports most popular ECU, Satellite, Xbox, Wii, BIOS, EPROM chips: SST39VF3201, TE28F102, 27C1024, 29F800, 29LV800..
Supports the chips that LPT Willem are not capable of supporting, like 24RF08,28F102,87C257 and more
Supports TSOP48, PSOP44, 16bit EPROM chips that 40 pin TOP, EasyPro, Wellon are not capable of supporting
Supports 25LF SPI series, 25VF SPI series, Altera Xilinx CPLD JTAG, PLCC84,29F032…
Allows end users to add in their own chips/devices easily (editing .txt file)
8. Working with the adapters further expands the supported devices list.
Accommodate the adapters (GQ-3X/2X and parallel LPT Willem adapter).
Packaging supported: TSOP48 (16bit and amp; 8 bit), TSOP32, PSOP44, DIP8 to DIP40, PLCC, SOP,SOIC, MCS-51+, PLCC84, and etc.
9. Covers the widest application areas amount all Willem programmers.
Car/automotive ECU chip tuning, airbag reset, mileage, memory device code read/write/program
Satellite large capacity device applications
On-spot/Field/portable applications and amp; Small scale production
Motherboard BIOS in-circuit upgrading
XBox, Wii gaming chip fresh and amp; upgrading
PIC and amp; MCU programming and amp; development
Duplicate EPROM chips and amp; Game machine repairing
Copier/Fax machine/printer main board repairing
VCD, DVD, color TV maintaining and amp; repairing
