Full color taxi advertising screen P2.5 led signs car roof led display outdoor
Model Type: TS3OT
Pixel Pitch 2.5 mm
LED Type SMD
Module Size 320*160 mm
Frame Materials Aluminum
Screen Size 960mm*320mm
Screen Resolution 384*128 dot
Brightness and gt;=3500 nit
Contrast and gt;8000:1
View Angle 150°(H)/150°(V)
Scan Mode 1/32 scan
Power Supply Input DC9–24V
Max Consumption 240w
Average Consumption 80w
Frame Frequency 60-85Hz
Fresh Frequency and gt;1920Hz
Optimal Viewing Distance 3–30m
Life Span 100,000 Hours
MTBF 10,000 Hours
Control Method Asynchronous
Control Mode 3G/4G/WIFI/ Ethernet/ USB
Temperature Operating -40°~+70°
Working Humidity 10%–90%RH
Screen Protection Waterproof, rust-proof, dust-proof, anti-static, anti-mildew
Power Protection over-temperature/over-current/ over-voltage protection
Screen Weight 20 kg
Package Honey-box
Certificates CE. ROHS
Cabinets of taxi displays are suitable for outdoor usage, adopting aluminum sheet metal,and endowed with excellent anti-rust effect by virtue of electrostatic spraying process. Actual dimensions could be customized.
Features
—Vivid video, vivid light. Easy install, easy show
—Support video, graph, text and most popular formats
—Aluminum mask with anti-UV, anti-pulverization painting, anti-aging resistance.
—Control by 3G/4G/WIFI/ Ethernet/ USB
—Transparent PC with 50um anti-UV painting, it will keep the original performance within 10 years.
—Special developed high performance power supply, with overvoltage, overload, short circuit, delay power on/offfunction, apply in -4OC~+ 70C environment.
—Realizing network cluster control manage which can operate for the terminal interface at any time and place,using browserto visit the service to manage and control the terminalwith no need to install software.
— With equipped standard mounting rack, which reduce the cost for its fast installation.
—Customized for its metal plate made.
—Two years warranty, IP65

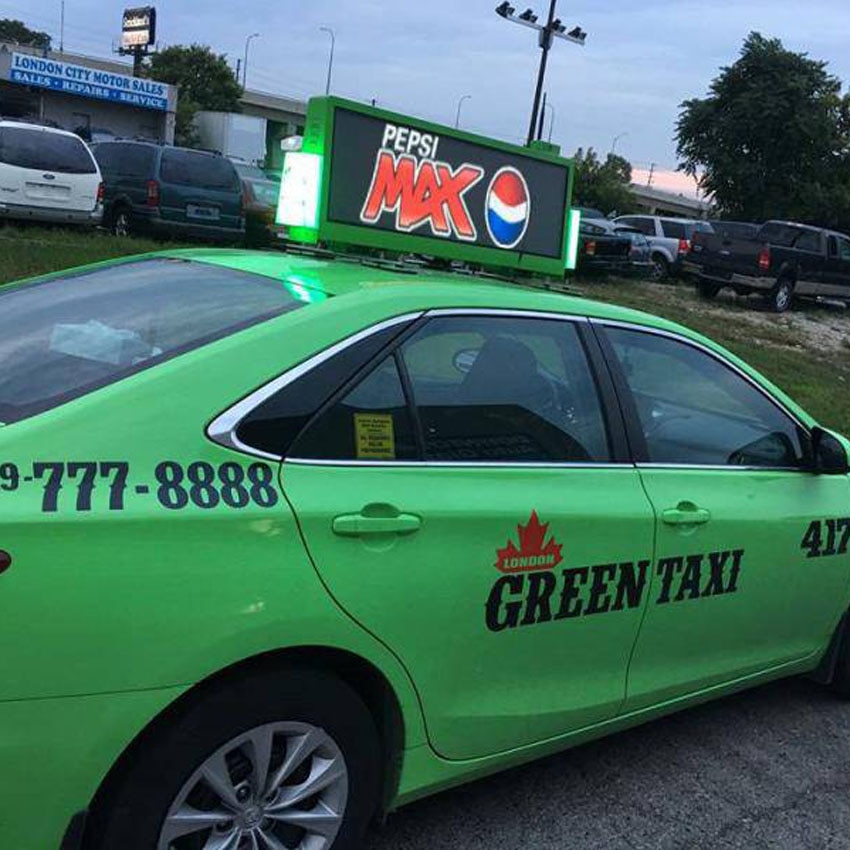

Taxi ad is a new product, with giant commercial value in the market now. It could show video, text, animation, picture, etc. It could be controlled by 3G, USB etc, convenient to operate.
Packing list:
led tax display 1 Unit (Controller and power supply has been assemble inside of the led display)
