outdoor Front repair P8 LED display , future serviceability that never requires access to the rear of the screen once installed.
die casting aluminum led display 8mm
Our Product line:
1) Rental led display:P8 960*960mm
2)Indoor LED display: P3,P4,P5,P6,P7.62,P8,P10
3) Outdoor LED display: P4,P5,P6,P6.25,P8,P8.9,P10 ,P20
Features:
1.HD
2.Ultra thin and ultra light
3.Low attenuation,high gray level,good stability,anti-static

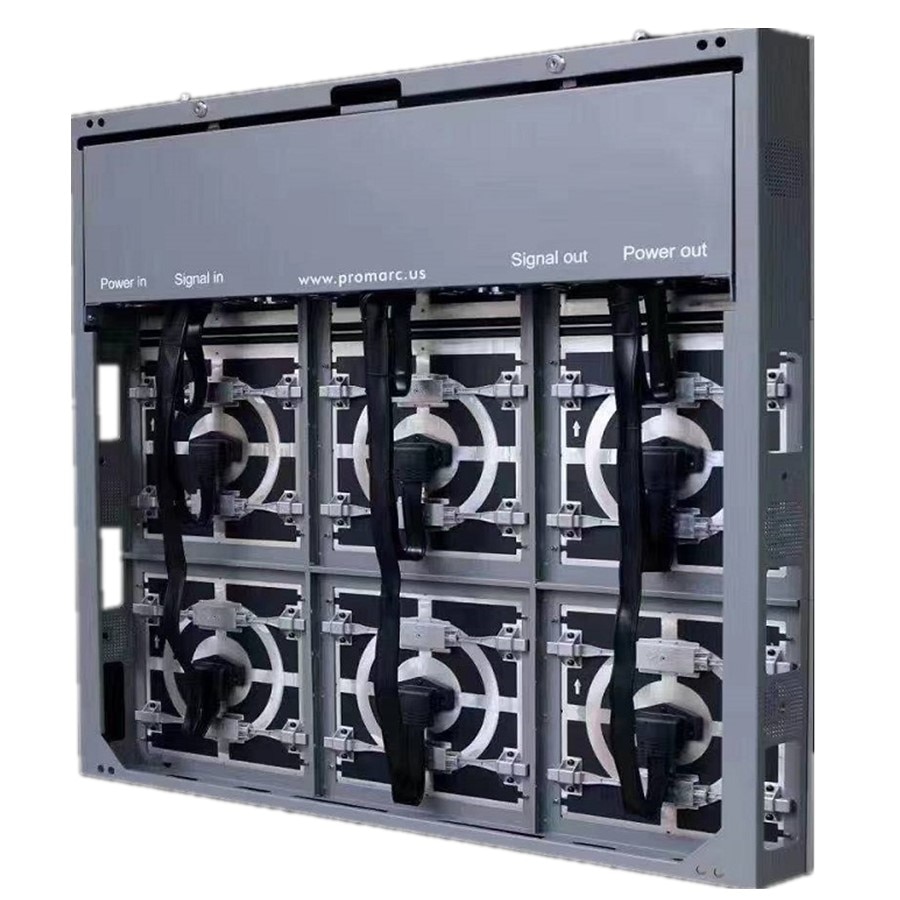

4.Entire die casting aluminum cabinet 960*960mm
Product parameters
|
Item |
P8 |
|
Chip |
Epstar |
|
Chip size |
Red 9 mil, Green 12. Blue 12mil |
|
Light type |
SMD |
|
Pixel Pitch |
8mm |
|
Module Size |
320mmX320mm |
|
Module Resolution |
40X 40(dots) |
|
Density of pixel |
15625dots/m2 |
|
Pixel configuration |
1R1G1B |
|
Red wavelength |
625±2nm |
|
Green wavelength |
525±2nm |
|
Blue wavelength |
470±2nm |
|
Colors |
16777216 |
|
Best viewing distance |
≥2m |
|
viewing angle |
120°/90° |
|
Maximum power consumption |
400W |
|
Brightness |
6500cd/m2 |
|
Gray scale |
14bits per color |
|
Color temperature |
6500k |
|
Control method |
Synchronization or Asynchronization |
|
Driving method |
1/5 scanning |
|
Frame frequency |
60Hz |
|
Refresh frequency |
≥600Hz |
|
Working Voltage |
DC5V |
|
IP grade |
IP67 |
|
MTBF |
More than 8000hours |
|
Life Span |
80,000hours |
For die-casting aluminum cabinet of LED rental stage display screen, we use flight case to pack.
One wooden case include 2 cabinets, one flight case include 6 die casting aluminum cabinets
By air or by sea! FOB or CIF
