Module Specification:
Pixel Pitch 10 mm
Module Size 320 x 320 x 16mm
LED Encapsulation SMD2727, 3IN1
Module Power Consumption ≤23W
Cabinet Specification:
Cabinet Size 960mm x 960mm x 120mm
Cabinet Resolution 96dots x 96dots =9216dots
Pixel Density 10,000 dots/sqm

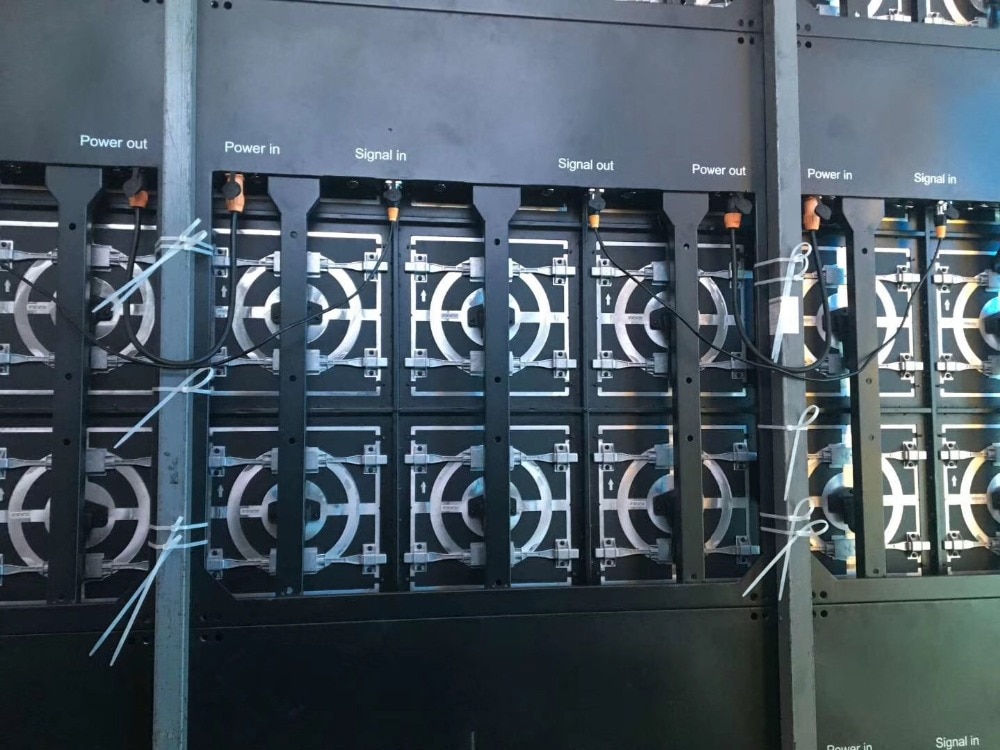

Cabinet Material iron front back open maintainance
Cabinet Weight 35Kg/sqm
Brightness 7500 cd/sqm
Optimal Viewing Distance ≥3.9m
Driving Method 1/2scan, constant current
Max. Power Consumption 300 W/sqm
Ave. Power Consumption 210 W/sqm
Input Voltage 110~220VAC±10%
Life span ≥100,000 hours( 50% brightness)
