Diagnostics for Webasto and Eberspacher heaters.
With this device you can:
– make complete for diagnostic of SUZUKI and YAMAHA outboard engines;
– read and delete error codes on Webasto and Eberspacher heaters.
We provide all necessary original software for Suzuki, Yamaha, Webasto and Eberspacher:
– For Suzuki 8.0 Diagnostic software (NEW, the latest version).
– For Yamaha YDS 1.33 Diagnostic software.
– Webasto Thermo Test 2.16.1 (with a full engineering menu).
– EDiTH S4V1-f.
Supported functions for SUZUKI and YAMAHA outboard engines (depend on engine type):
– read all engine diagnostic codes and records,
– reset the fault code(s),
– engine hours,
– activate low and high pressure fuel pumps,
– test individual injectors and ignition coils,
– set tilt-limit,
– de-activate most engine sensors for testing,
– view all sensor readings (TPS, IAC, battery voltage, charging voltage, RPM, oil pressure, MAP, etc.),
– stationary and static diagnostic tests,
– read technical parameters in real-time,
– read of temperature and voltage of the TPS,
– read the serial numbers of the injectors,
– printing or export of diagnostic data to PDF files.
– current service (self-diagnostic) codes,
– service data display and save,
– BCM simulator,
– data logger save and graph printing,
– SPC system calibration,
– SPC system initialization,
– BCM service data display and save,
– SPC system check
and other functions.
All data from your engine can be saved to your computer for future reference using Microsoft Excel.
Supported functions for Webasto and Eberspacher (depend on heater type):
- Heater information
- Display error list (in case errors occur)
- Delete error memory
- Overview of heaters’ parameters and components
- Graphs of actual values of components
- Overview heaters’ operating data
- Component test
- Fuel prime
- CO2 calibration
- Protocol of the measured values
- Creation of a summary
- Visual control of diagnostic line
- Program start of DTR line (pin 6)
- and other functions.
PC, Laptop or Tablet hardware requirements:
– Windows Based Operating Systems (XP, VISTA, 7, 8, 10) (32 or 64 bit).
– One available USB port.
Supported YAMAHA models:
For All Yamaha HPDI OUTBOARD MODELS
Z150 , LZ150 , VZ150 , Z175 , VZ175 , Z200 , LZ200 , VZ200 , VZ200 , Z225 , VZ225 , Z250 , LZ250 , VZ250 , Z300 , LZ300 , VZ300
For All Yamaha EFI 4-STROKE OUTBOARD MODELS
F30 , F40 , F50 , T50 , F60 , T60 , F70 , F75 , F90 , F115 , LF115 , F150 , LF150 , F200 , LF200 , F225 , LF225, 250, LF250 , F300 , LF300 , F350 , LF350
(International Models)
For All Yamaha HPDI models
Z150 , LZ150 , Z175 , LZ175, Z200 , LZ200 , Z225 , LZ225, Z250 , LZ250 , LZ300 , Z300
For All Yamaha EFI 4-Stroke Models
F30 , F40 , F50 , FT50 , F60 , FT60 , F70 , F75 , F80 , F90, F100 , F115 , FL115 , F150 , FL150 , F200 , FL200 , F225, FL225 , F250 , FL250 , F300 , FL300 , F350 , L350
For All Yamaha YDS-compatible Personal Watercraft (Jet-Ski’s/ Jet-Boat’s)
JET-SKI MODELS
GP1300R , VX , VX CRUISER , VX DELUXE , VX SPORT, FX , FX CRUISER , FX HO FX CRUISER HO , FX SHO , FX CRUISER SHO , FZR , FZS , VX18R , VX18S
JET-BOAT MODELS
SR230 , SR230 HO , SX230 , SX230 HO , AR210 , R230 , AR230 HO , SX210 , 212X, 212SS , 232 LIMITED , R240, AR240 HO , SX240 , AR190 , SX240 , SX240 HO, 242 LIMITED
MERCURY MARINE 225 (EFI 4-STROKE)
ALL MERCURY MARINE 75, 90, 115, and 225 EFI 4-STROKES MANUFACTURED BY for YAMAHA MARINE
Important: The software will NOT work on for Yamaha OX66 fuel injected engines, for Yamaha carbureted engine,
or MAC computers!
Suitable only for engines up to 2011
Supported SUZUKI models:
DF40/50 – 1999 and later
DF9.9B EFI
DF15A/20A EFI
DF60/70 – 1998 and later
DF70A/80A/90A – 2009 and later
DF90/115 – 2001 and later
DF100 – 2009
DF140 – 2002 and later
DF150/175 – 2006 and later
DF200/225/250 – 2004 and later
DF250S – 2008 and later
DF300 – 2007 and later
DF25A/30A – Serial number: 510001 and later
DF150TG/ZG/175TG/ZG – Serial number: 410001 and later
DF200A – Serial number: 510001 and later
DF200AP – Serial number: 510001 and later
DF250AP/300AP – Serial number: 310001 and later
Supported WEBASTO models:
- Thermo Top C, E, Handel, P, C/Z MB/DC
- Thermo Top C/Z BMW
- Thermo Top Audi
- Thermo Top C/Z Fiat
- Thermo Top PSA
- Thermo Top Rover
- Thermo Top (98)
- Thermo 50 (67339A), (67339B), 90 (S)
- Thermo 230/300/350 (E1), (E2), (SG1572)
- AT2000/3500/5000
- RHx-100/MHx-100
- DBW/BBW 46S, DW/BW 80
- W-Bus
- …and other…
Supported EBERSPACHER models:
- Airtronic M/L
- B/D 1/3 C/P Compact
- B/D 1/3/5LC, D8LC
- D2L, D12W
- D7W (D2H)
- D9W, Hydronic 10
- Hydronic 10 M/MII, L/LII
- Hydronic 16/24/30/35
- Hydronic B/D 3/5 WZ
- Hydronic B/D 4/5W SC/S
- Hydronic II-H/F, II, II-C
- …and other..

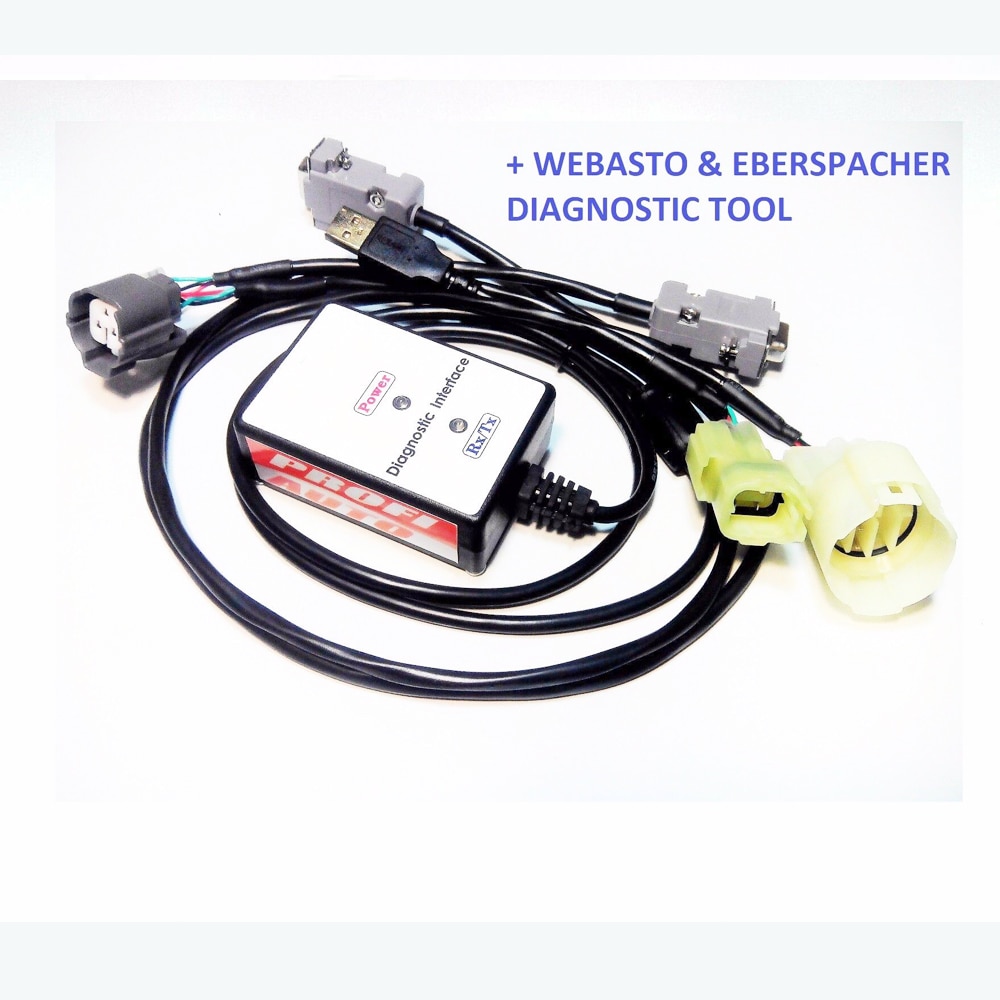

= P A C K A G E =
- 1 x USB Diagnostic adapter.
- 1 x Cable with 3 pin diagnostic connector.
- 1 x Cable with 4 pin diagnostic connector.
- 1 x Cable adapter 4 pin to 10 pin diagnostic connector.
- 1 x Cable for Webasto and Eberspacher heater diagnostic.
- 1 x LINK to download the software and drivers (via message)
