Our product is the latest upgraded version, which is improved based on the defects and problems of the same type of products on the market.
1. The signal of FPC cable is weak, so we changed FPC cable to 1.0 silicone cable with lower resistance,better shielding,better signal and better power supply.
2. We offer three separate Sam connectors,you can buy separate Sam connector according to your actual needs, and you can easily change the head.
3. Our Sam connector is small enough in size and can support 1706 1707 1708 space perfectly.

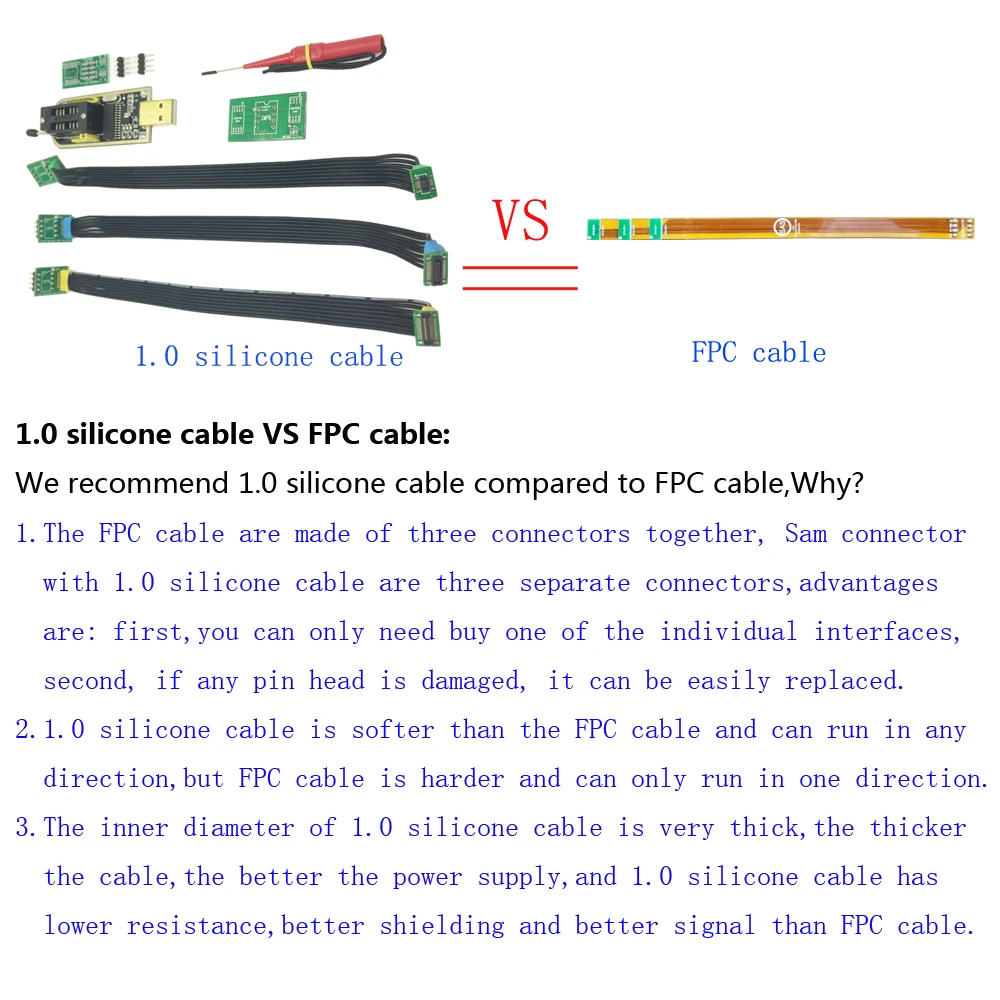

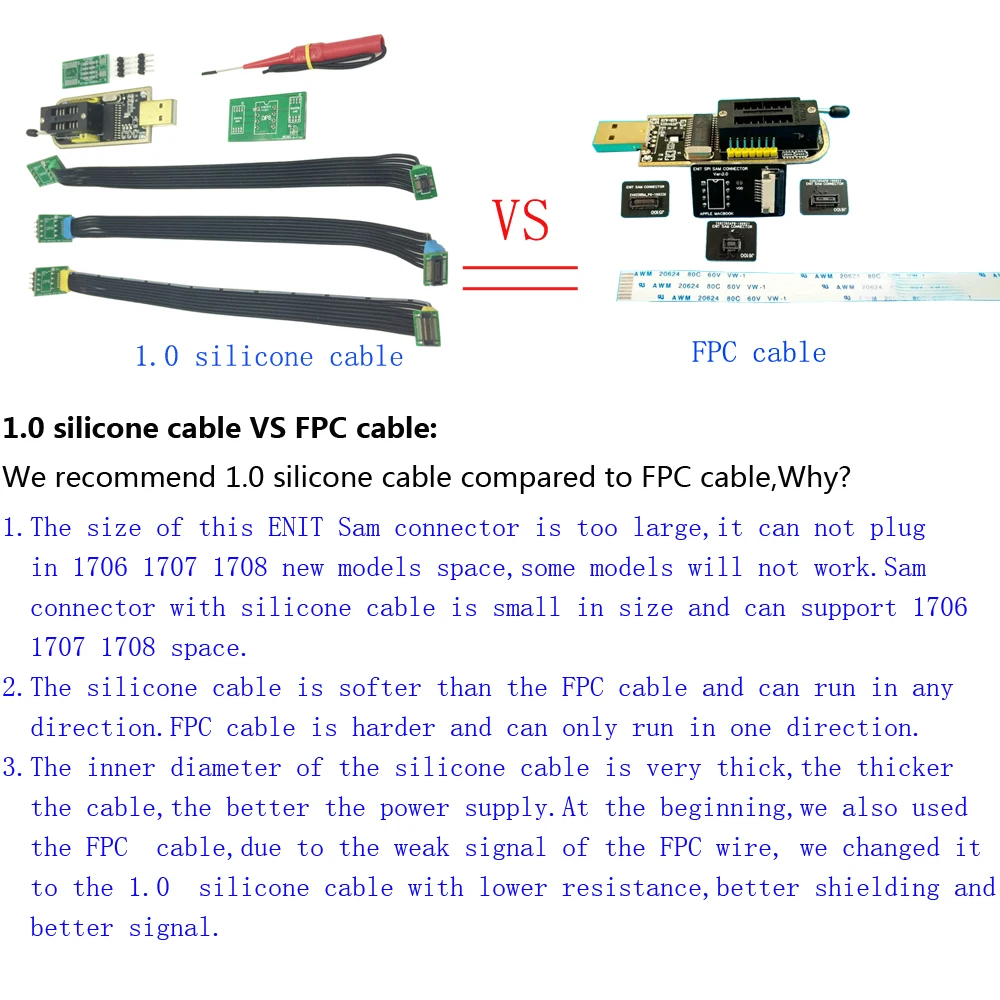

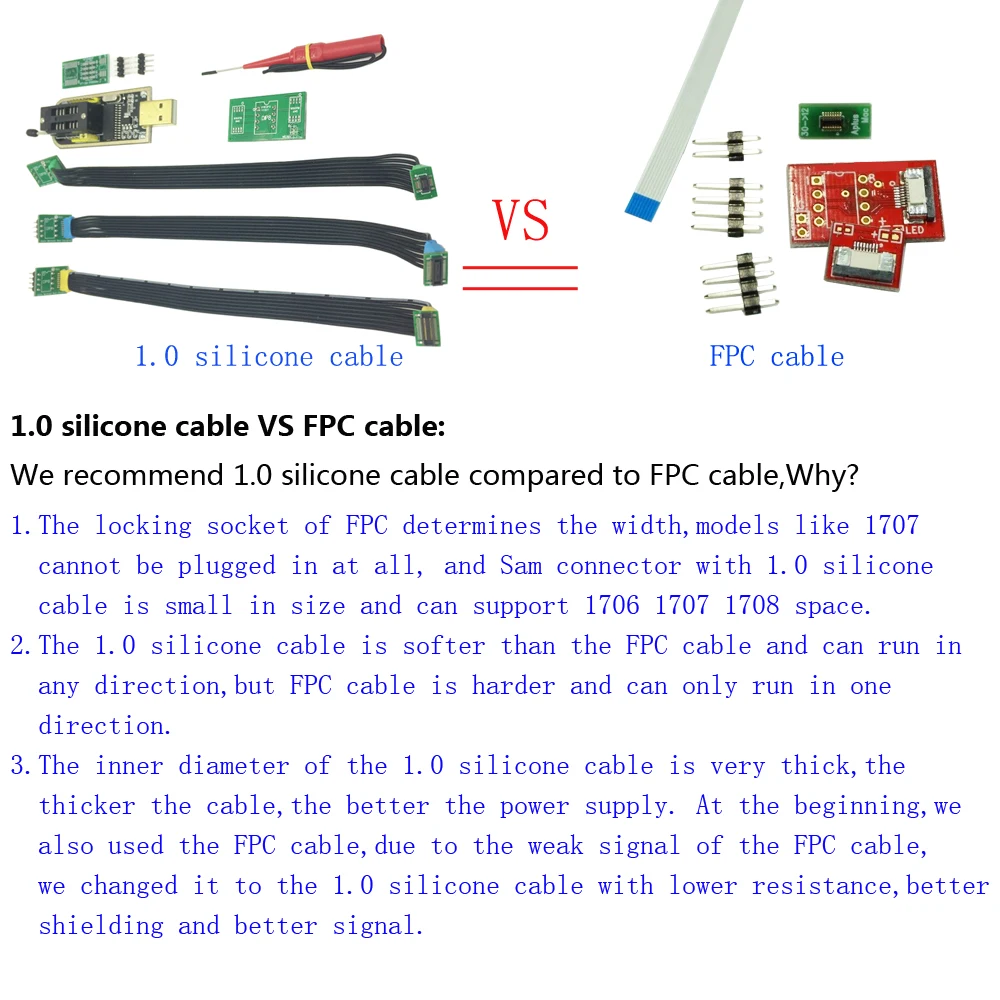

Please click below photos of new 1.0 silicone cables to enter the purchase links:
What is Enit Sam connector ?
With this professional Enit Sam connector module you can read bios chip without desordering from the Apple logic board(For A1278,A1286,A1181,A1369 you still have to desolder bios chip).Can clearing ME region, apple bios and I cloud password also other corrections.(clearing ME region and also clearing icloud firmware password Method isn’t included ).
Enit Sam Connector is a set of tools that enable you to flash the on-board EFI-ROM (BIOS).
This board plugs into the J6100 connector of the motherboard of a MacBook. It comes with a cable that connects to a DIP-8 header on the other side for easy connection to your programmer.
If you do not understand its purpose – please do not buy ,we will not bear any responsibility for damaging your mac
This Enit sam connector used for Macbook, MacBook Air and new MacBook Pro models from 2010 to 2017
It has three connectors for the years 2010 – 2011, 2012 – 2014 and 2015 – 2017
This connector helps you to read and write SPI bios(firmware chip) without removing them from the Apple logic board
Important Information:
Q: How to find sam connector in motherboard?
A: Open Apple board view or schematic and search for J5100 or J6100, this two notation number is used for SPI sam connector
Q: How many types of sam connector use apple motherboard?
A: Apple’s Year 2010 to 2017 models have only 3 types of sam connector (12dp, 30dp, 30dp)
Q: How to identify 30dp connector? Because of there is two 30dp connector.
A: The internal layout and design of both connectors is different
Q: Is that require external PP3v3 power for program bios ?
A: It’s depending on programmer. use CH341A programmer, you doesn’t need external power just remove battery connector , and plug adapter , Some Apple laptops directly power on without internal battery connection so you have to switch off your laptop and leave it in suspend mode , and program it
Q: Which programmer you have suggested?
A: We suggest the CH341A programmer (this programmer does not require external PP3V3).
Q: When I open the file and press AUTO,it says: Chip Memory is not null.
What do i do?
A: Please try it with different version of ch341a software,we will offer you ch341a software by email,you can also use asprogram.
Q: Can do it without soldering?
A: Yes.
Q: Where can I get the sam connector boards?
A: 2010 to 2017 all apple model have sam connector,seach on apple schematic with word of J5100 or J6100.
Q: Is used to programmed BIOS?
A: Yes.
Q: Can remove EFI on MacBook 2018 and later models?
A: In 2018 and later models, Apple used a new security chip to replace the firmware security system used by models between 2010 to 2017. They also removed the EFI connector from the logic boards. Therefore 2018 and later models are not supported yet. However we are working on this.
Note:
All products have been checked and packaged in good condition before dispatch.
In case the item is defective, please inform us within few days of receipt, we will replace a new one. No Refunds are offered. Buyers have to pay for the return cost and we will pay the cost for resending.
Please let us know if you have any questions.

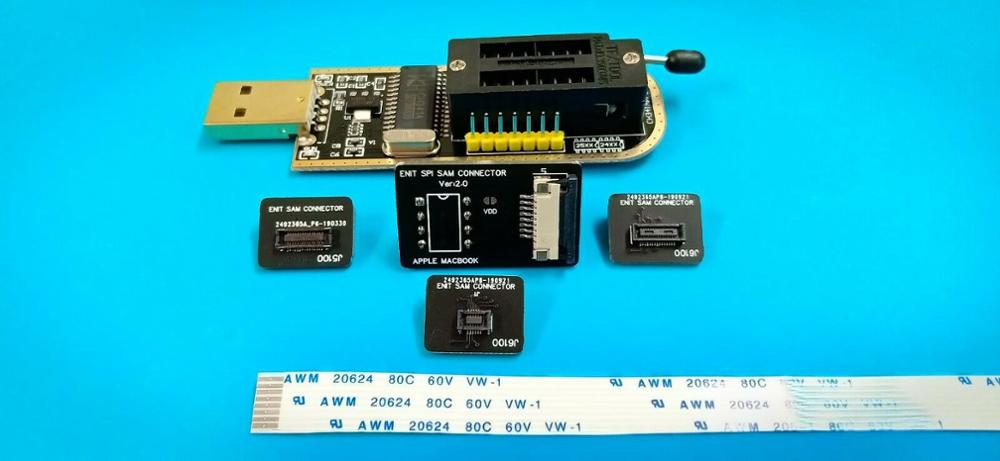

Package includes:
1 x Programmer CH341A
1x SPI cable J6100
3x Sam connectors
1x SOP8 adaptor
Tips:
Please click below photo to enter the EFI Card purchase link:
