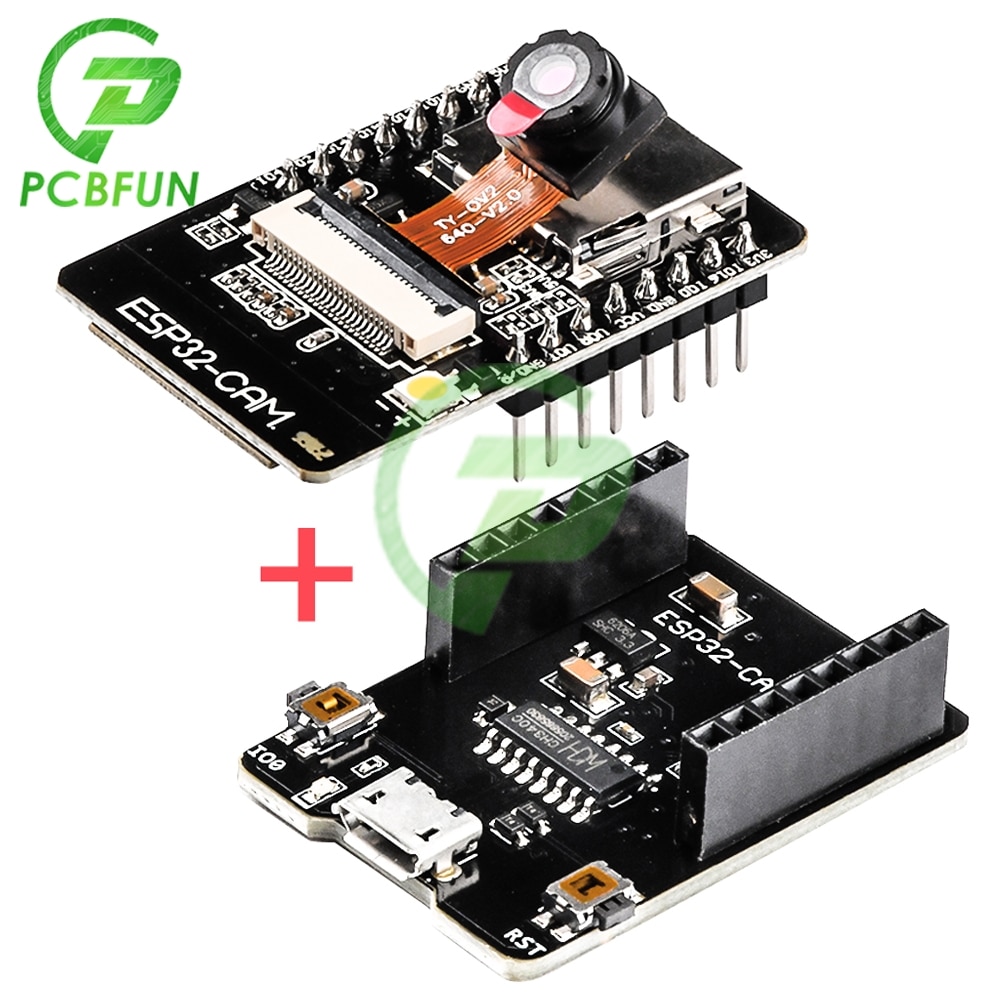

ESP32-CAM-MB WIFI ESP32 CAM Bluetooth Development Board with OV2640 Camera MICRO USB to Serial Port CH340G 4.75V-5.25V Nodemcu32MbitSPIFlash
Description
100% Brand New and High Quality
2.4G WIFI Antenna
SMA connector 2.4GHz 2dBi Wireless WLAN Antenna Aerial
Gain: 2dbi
Connector:RP SMA Male (female pin) Connector
Color:black
Antenna length :11cm
Introduction
The HK-ESP32-CAM-MB module is a small camera module with a size of 39.8*27*. This module can work independently as the smallest system. A new WiFi+Bluetooth dual-mode development board based on ESP32 design, using PCB on-board antenna, with 2 high-performance 32-bit LX6CPU, using 7-level pipeline architecture, main frequency adjustment range 80MHz to 240Mhz. Ultra-low power consumption, deep sleep current is as low as 6mA. It is an ultra-small 802.11b/g/n Wi-Fi + BT/BLE SoC module
HK-ESP32-CAM-MB adopts Micro USB interface, convenient and reliable connection method, convenient to apply to various IoT hardware terminal occasions.
Parameter
The main frequency is up to 240MHz, and the computing power is up to 600 DMIPS
Built-in 520 KB SRAM, external 8MB PSRAM
Support UART/SPI/I2C/PWM/ADC/DAC and other interfaces
Support OV2640 and OV7670 cameras, built-in flash
Support picture WiFI upload
Support TF card
Support multiple sleep modes.
Embedded Lwip and FreeRTOS
Support STA/AP/STA+AP working mode
Support Smart Config/AirKiss one-click network configuration
Support secondary development
Application Scenario
Home smart device image transmission
Wireless monitoring
Smart agriculture
QR wireless recognition
Wireless positioning system signal
And other IoT applications
Specifications
Working voltage 4.75-5.25V
SPIFlash default 32Mbit
RAM internal 520KB + external 8MB PSRAM
Wi-Fi 802.11b/g/n/e/i
Bluetooth Bluetooth 4.2BR/EDR and BLE standard
Support interface (2Mbps) UART, SPI, I2C, PWM
Support TF card, maximum support 4G
IO port 9
Serial port rate default 115200bps
Spectrum range 2400 ~2483.5MHz
Antenna form Onboard PCB antenna, gain 2dBi
Image output format: JPEG (only OV2640 support), BMP, GRAYSCALE
Packaging method DIP-16
Transmit power 802.11b: 17±2dBm (@11Mbps)
802.11g: 14±2dBm (@54Mbps)
802.11n: 13±2dBm (@MCS7)
Receiving sensitivity CCK, 1Mbps: -90dBm
CCK, 11Mbps: -85dBm
6Mbps(1/2BPSK): -88dBm
54Mbps (3/464-QAM): -70dBm
MCS7 (65Mbps, 72.2Mbps): -67dBm
Power consumption Turn off the flash:
Turn on the flash and adjust the brightness to the maximum:
Deep-sleep: The lowest power consumption can reach
Moderm-sleep: the lowest can reach
Light-sleep: the lowest can reach
Security WPA/WPA2/WPA2-Enterprise/WPS
Working temperature -20 ℃~ 70 ℃
Storage environment -40 ℃~ 125 ℃, and lt;90%RH
Weight 10g
Feature:
Product name: ESP32-CAM-CH340 camera module
Product model: HW-818
Working voltage: DC 5V
Product size: 27*48.5*4.5mm (excluding pin header)
Product application: This module can be widely used in various IoT applications, suitable for home smart devices, industrial wireless control, wireless monitoring, QR wireless identification, wireless positioning system signals and other IoT applications. It is packaged in DIP and can be used directly by plugging in the bottom plate.
Program Download
1. Download the software and set it up, select the program or burn the file
2. The module presses the FLASH button (to keep pressing), and then connect the module through the USB cable
MICRO USB port and computer USB port.
3. To download the software, select the correct download port, and then download. When the program starts to download,
FLASH button can be released
Package Include : ( we send it to you as your choose )
1 x ESP32-CAM-MB WIFI ESP32 CAM Bluetooth Development Board with OV2640 Camera MICRO USB to Serial Port CH340G 4.75V-5.25V Nodemcu
