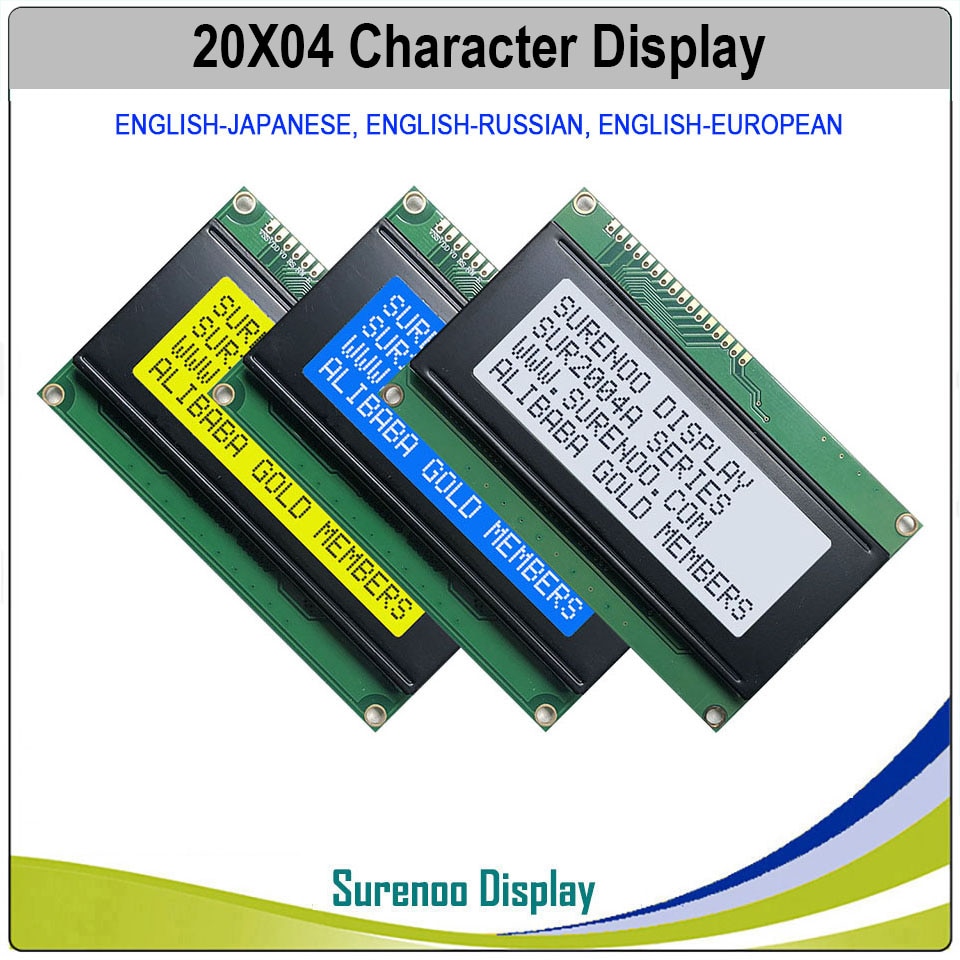

English / Japanese / Russian / European 204 20X4 2004 Character LCD Module Display Screen LCM with LED Backlight

English / Japanese / Russian / European 204 20X4 2004 Character LCD Module Display Screen LCM with LED Backlight

☛ () ☚

Important Note for RU language Display work on Arduino

Стандартна бібліотека ардуино іде виводити тільки англійські символи а російські палички та ієрогліфи, прийшлося шукати конвертор для кирилиці.

SLC2004A1 Character LCD Module

Basic Information

➤ Model No.: SLC2004A1

➤ Product Type: Character LCD Module

➤ Brand: Surenoo

➤ Display Format: 20*04 Characters

➤ Interface: 6800 4-bit Parallel, 6800 8-bit Parallel

➤ IC or Equivalent: AIP31066, HD44780, KS0066, SPLC780D

➤ Font: 1. English/Japanese; 2. English/Russian; 3. English/European

➤ Outline Dimension: 98.00(W)x60.00(H)x14.00(T)mm

➤ Visual Area: 77.00×25.20mm

➤ Active Area: 70.36×20.44mm

➤ Viewing Direction: 6:00

➤ IC Package: COB

➤ Power Supply (Type): 5.0V

Datasheet Download ()

➤ Please browse “” support website.
➤ Select “
MONO-Chrome LCD Series“;
➤ Click “
Standard Character LCD Module” to download Selection Guide;
➤ Search “
SLC2004A1” to direct it, and then download the datasheet.

➤ SLC2004A1 Series Table

➤ SLC2004A1 Outline Drawing

➤ SLC2004A1 Pin Configuration

SLC2004A3 Character LCD Module

Basic Information

➤ Model No.: SLC2004A3

➤ Product Type: Character LCD Module

➤ Brand: Surenoo

➤ Display Format: 20*04 Characters

➤ Interface: 6800 4-bit Parallel, 6800 8-bit Parallel

➤ IC or Equivalent: AIP31066, HD44780, KS0066, SPLC780D

➤ Font: English/Japanese

➤ Outline Dimension: 116.00(W)x40.00(H)x13.70(T)mm

➤ Visual Area: 77.00×25.20mm

➤ Active Area: 70.36×20.44mm

➤ Viewing Direction: 6:00

➤ IC Package: COB

➤ Power Supply (Type): 5.0V

Datasheet Download ()

Please browse “” support website.
Select “MONO-Chrome LCD Series“;
Click “Standard Character LCD Module” to download Selection Guide;
Search “SLC2004A3” to direct it, and then download the datasheet.

➤ SLC2004A3 Series Table

➤ SLC2004A3 Outline Drawing

➤ SLC2004A3 Pin Configuration

➤ SLC2004A Font
