Product Overview
If you need to control the AC power (lights, home equipment’s), a thyristor can help you with that. This is a very common module with very low on-resistance and a control voltage, which is compatible with any 3.3V or 5V micro-controller or mechanical switch. Thyristor allows you to control high-power devices with very low-power control mechanisms. This board has an optoisolator to protect your micro-controller from high AC currents. We also left more space, if you need to install the heat sink for thyristor.
EMBED 16ASpecification
|
VAC |
AC 600V/16A |
|
Operating voltage |
3.3V/5V |
|
Signal level |
DC 3.3V/5V 10mA |
|
Thyristor BTA16 |
600V |
|
Optoisolator |
MOC3042 |
|
PCB size |
27x34mm |

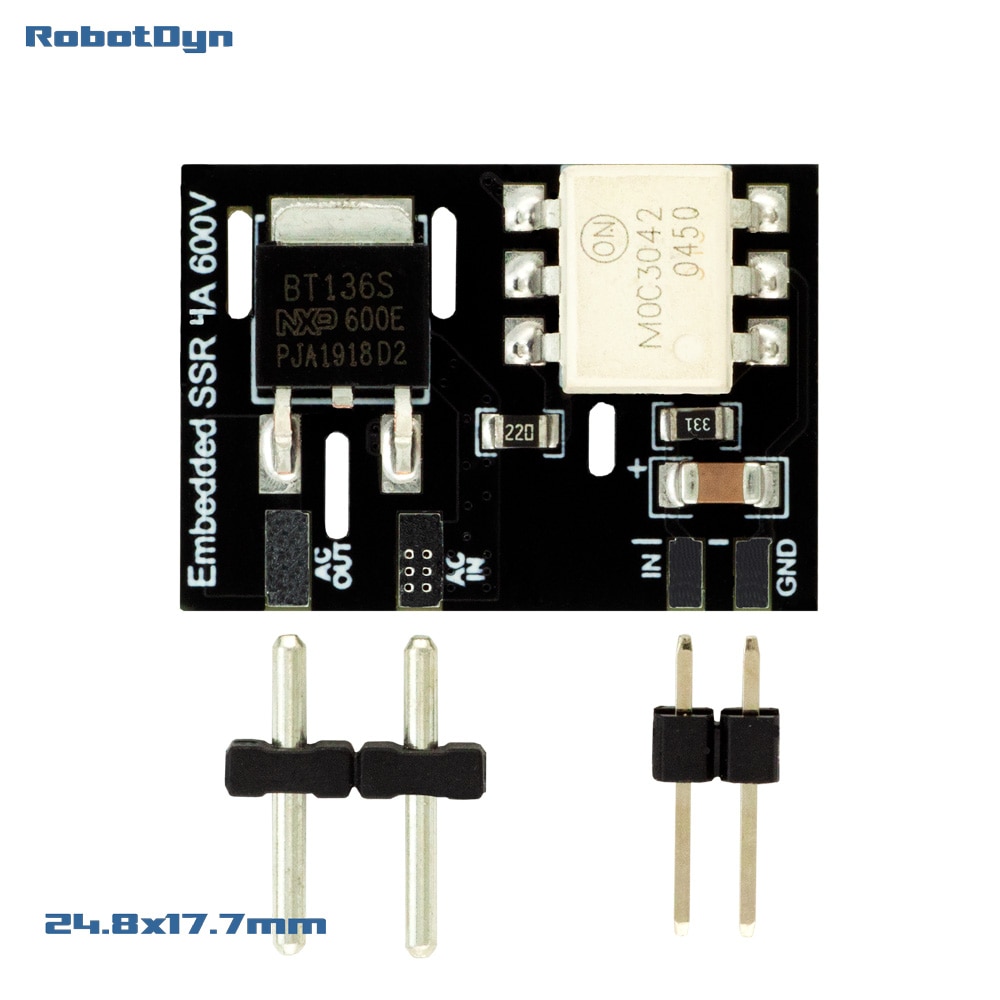

EMBED 4A Specification
|
VAC |
AC 600V/4A |
|
Operating voltage |
3.3V/5V |
|
Signal level |
DC 3.3V/5V 10mA |
|
Thyristor BT136 |
600V |
|
Optoisolator |
MOC3042 |
|
PCB size |
17.7×24.8mm |
