Welcome to SZLightall Electronic store!
1. We are professional product and sale LED display
2. We are provide low price and high quality on Aliexpress
3. Welcome to our factory for inspection in China
Packing list
P10 outdoor 960*960mm 1 sqm
Model available:indoor p2.5,p3,p3.91,p4,p4.81,p5,p6,p7.62,p10;outdoor p3.91,p4.81,P5,P6,P7,P8,P10,P12,P12.5,P16,P20
P10 outdoor Full color LED display technical parameter list
|
Item |
Outdoor full color led display |
|
Model Number |
P10 |
|
Pixel Pitch |
10mm |
|
Pixel Density(dots/m⊃2;) |
10000 |
|
Pixel Configuration |
RGB |
|
LED Type |
DIP346 |
|
Module size(mm) |
160*160 |
|
Module Resolution(dots) |
16*16 |
|
Min.Viewing Distance(m) |
≥8 |
|
Brightness(cd/m⊃2;) |
≥7500 |
|
Viewing Angle(degree) |
≤180° |
|
Average Power Consumption(w/m2;) |
180 |
|
Scan Mode |
1/4 |
|
Protection Level |
IP65 |
|
Cabinet Size(mm) |
960*960 |
|
Color Temperature |
The brightness of R.G.B.is adjustable according to software 100level;Color temperature is adjustable in terms of detailed requirements |
|
Input Voltage |
AC220 V/50HZ or AC 110V/60HZ |
|
Refresh Rate |
LED screen refresh frame freauency recommended is no less than 1200HZ(recommended) |
|
Color |
64g color(on the condition of 4096 gray scale) |
|
Horizontal/Vertical viewing angle |
160° |
|
Gray Scale |
Recommended 14BIT |
|
Effective Communication Distance(without relay) |
Unshielded twisted-pair net line transmission distance is 100 meters,max transmission distance is 130 meters. |
| Power Supply | Domestic Power Supply |
| Printed Circuit Board(PCB) | 2 Layer |
| Cabinet weight | 55KG |
| Cabinet resolution | 96*96 dots |
| Cabinet | Iron Cabinet |
| Warranty | 3 Years |
Outdoor LED Display Detail and Usage:
Cabinet structure :
Display operation diagram:
Project cases:
advertising led displays
stage and amp;rental led display

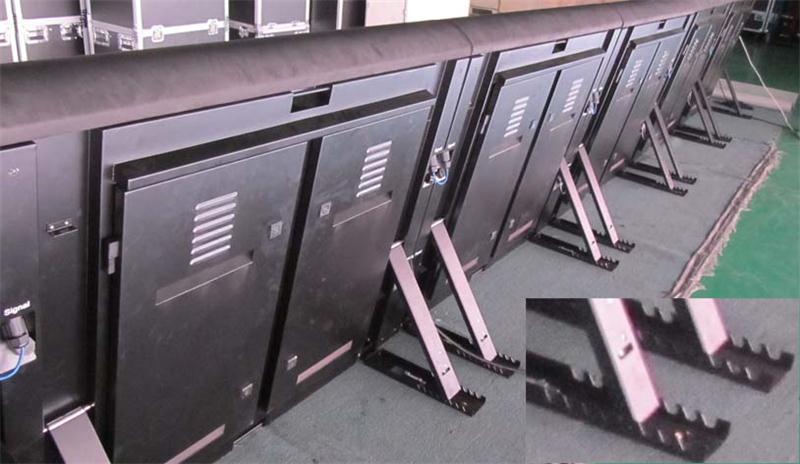

stadium and amp;perimeterled display
other type led display(turck,taxi,led player,front open,double side,mesh)
Factory Visit:
Company Profile
1. With professional technical and development team, we are a direct Factory specialized in led display control card, led display module, power for led display, led display, and other led display accessories etc.
2. With more than 10 years’ experience, modern production and test equipment,perfect enterprise management system,high quality research and management team, high quality led display controller, all above make us become popular supplier.
3. With our high quality and service our products have been exported to various countries and regions in Southeast Asia, Australia, Europe and America etc.
Shipping by Express
1. We Ship to Worldwide.
2. Items are shipped from China via EMS, UPS, FedEx, DHL, TNT and airmail (with tracking number) etc.
3. Delivery time depends on the courier company ,the destinations, the local customs and other factors; We hope it arrive on time, but this international delivery shipping time will be highly depends on the courier company and local customs, hope you can understand if there are any shipping delay caused by above reasons.
Shipping by Sea
If you want to deliver the led display board by sea pls tell us, we will quote you the ocean freight.
ATTENTION!!!
1. Different batch or different company’s led module , they can’t be used together because the color ,brightness,signal direction of PCB board are different.
(Different batch screw holes position on the housing might be diferent with the picture, pls confirm with us before order if you are repaird order.)
2.As thest products easy to broke, so we suggest you choose express(DHL,Fedex, UPS, TNT) shipping ensure folwless and prefect.
3. All the series modules are 5V power ,220V voltage,make sure your switch power supply suitalbe.
Relavent:
curved led diaplay
