AD-FMComms3-EBZ: “AD9361 software development package”

AD-FMCOMMS3-EBZ is a high-speed analog module designed to display AD9361, a high-performance, highly integrated RF transceiver designed for RF applications such as 3G and 4G base stations, test equipment applications, and software defined radio. The programmable and wide-band capabilities of the device make it an ideal choice for many transceiver applications. The device sets the RF front end and the flexible baseband part of the mixed signal, integrating the frequency synthesizer, providing a configurable digital interface for the processor or FPGA, thus simplifying the design import. The AD9361 chip operates from 70 MHz to 6 GHz, covering most of the licensed and unlicensed bands, by changing the sampling rate, digital filter, and extraction parameters of the AD9361 itself programmatically, so that the channel bandwidth of the chip is less than 200 kHz to 56 MHz.

AD-FMCOMMS3-EBZ provides a single platform for software developers and system architects, and does conform to the 2.4 GHz specifications of the data handbook, but not the entire radio frequency tuning range that the board supports. The platform’s typical performance data of the whole range (70 MHz – 6 GHz) can be seen in the relevant documents of the board.

Delivery list:

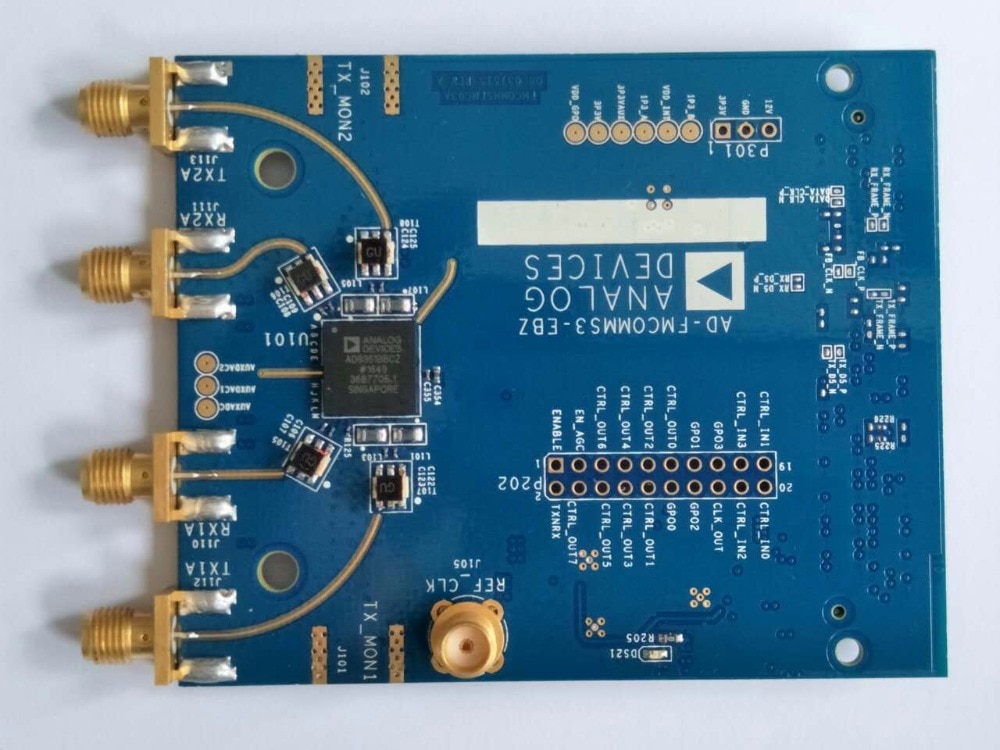

FMC interface AD9361 development board.

The 2.4G antenna is 4.

SD card has a LINUX image, which can run LINUX directly in ZEDBOARD and ZC706.



 以下是网友提供的运行实例:
