Product Description

STVI050WT-01



The STVI050WT-01 is the intelligent TFT LCD Module with UART PORT which can be controlled by ANY MCU via Simple Powerful Command Set. So it can be used as colourful TFT Display and amp; Touch controller in various electronic equipment.



The STVI050WT-01 include CPU , TFT Driver,Flash Memory,UART port,power supply and so on,the important is that it  has the ready-made Basic Control Program and Powerful Design Software,so that it can reduce much development time and cost for engineers.



Product Parameters

Physical Parameter

 Model  STVI050WT-01
 Size (Inch)

 5.0″

 Resolution  480×RGB×272
 Color  65536 colors (16 bit)
 Viewing Area  110.9 mm × 62.8 mm
 Pixel Spacing  0.1905 mm × 0.0635 mm(H×V)
 Overall Dimension  140mm×80.9mm×13.9mm(N)/15.2mm(T)
 Net Weight  195 g(N)/ 200 g(T)
 TFT Panel  A+ Class Industry Panel
 Touch Screen  Industry Level 4 wire resistance Or without touch screen is optional.

Backlight Parameter

 Backlight Type  LED
 Brightness  400 cd/m2(Brightness can be adjustable in 100 levels.)
 Contrast  500:1
 Backlight life  30,000 hours
 Viewing Angle  70°/ 70°/ 50°/ 70° (L/R/U/D)
 Working Temperature  -20°C ~ +70°C
 Working Humidity  55°C, 85%
 Storage Temperature  -30°C ~ +85°C
 Screen Mode  Digital

Performance Parameter

 CPU  CortexM4
 LCD Controller  CPLD EPM240
 Refresh Rate  200MHz
 Picture Switching Speed  19 ms/picture (53 pictures/s)
 Flash Memory  Standard 128m, Extension 1GB
 Memory Amount for picture  According to the capability of the image, Suggest “JPG” format
 Interface  RS232/ USB Interface
 Pictures downloading  USB2.0 (12Mbps) and amp; U storage Disk downloading
 Voltage Range  DC5.0V ~ 35V (typical value: 12V)
 Power  1.3W

 Test Report

 MTBF  4,250,000H
 Working Temperature  -20°C ~ +70°C
 Air Humidity  60°C, 90%
 Continuous Vibration Testing  10-55Hz, 1.5mm, 10G
 Impact Acceleration Testing  6ms, 100G
 ESD Testing  10KV
 Radiation Reliability Testing  44W

Main Size of TFT LCD Module

 Size  Resolution
 3.5”  320*240;
 4.3”
 5”  480*272;
 5.6”
 5.7”
 7” ;
 8” ;
 9.7”
 10.1”
 10.4”
 12.1”
 15.1”

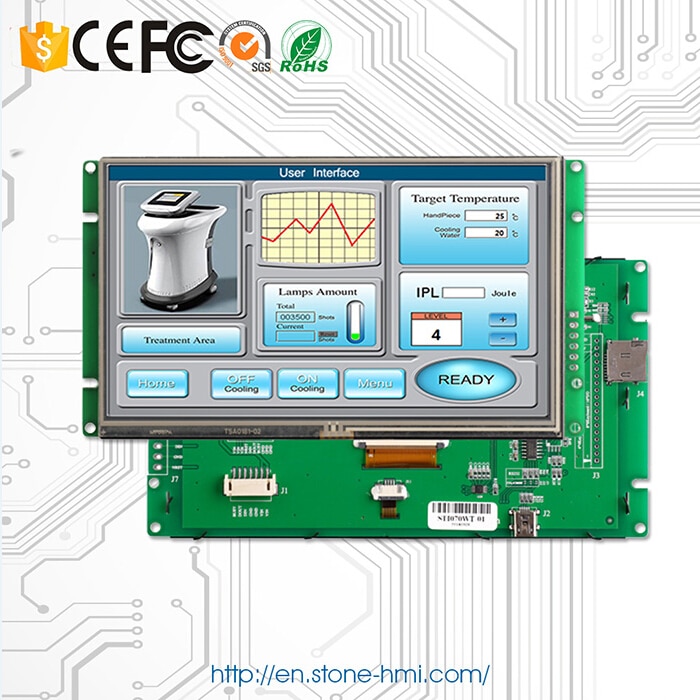

Product Picture





WHY STONE TFT LCD MODULE IS INTELLIGENT?

Item

Hardware

Software

Operation

Comparison



TFT Panel         and amp;Driver             and amp;Memory Flash       and amp;UART/USB Port       and amp;5-40V Power Supply

GUI Design Software     and amp;Hex Command Set

Easy to operate,use simple instruction         (Hex code)to control TFT module by any junior engineer.

1.Easy!Pwerfull!Saving!

2.Plug and Play.                       3.Working fast. 4.Industrial class.         5.Components from Well-known Brands.

PC

Operation System

Develop application programs by professional software engineer.

1.Need professional operation.                                     2.Long startup time.

3.Working slowly.

4.High cost.

Panel and amp;Driver

None

Write plenty of control programs for TFT module by professional engineer.

1.Need tedious and amp; Professional work.

2.Cost lots of development time. 3.Unstable working system.

4.Poor quality components.

Just panel

None





1.Develop hardware and driver.

2.Write programs by professional engineer.

1.Need tedious

and amp; Professional work.

2.Cost even more development time.     3.Unstable working system.

4.Cheap imitated components.



Our Services



Payment and amp;shipping



About Us



Beijing STONE Technology Co.,Ltd. is a leading manufacturer of HMI product (Intelligent TFT LCD Module and Industrial PC).Characterized with cutting-edge technology and reliable support for customers from over 80 countries, And having specialized experience in TFT LCD Module and industrial PC’s R and amp;D, manufacture and market for more than 14 years from 2004.We always following the STONE spirit of “Professional Reliable Successful” these years, and have achieved tremendous success in the global market due to leading technology, reliable service and price domination.





FAQ

1.      Does your product include program software?
A:   Yes. The free graphic user interface software is included.

2.      How do you program the display?
A:   We don’t have to write any code for the display or program the driver. Our display set include CPU and memory, you can directly use .jpg file to generate a GUI and use it to send HEX command set to communicate with your micro control unit.

3.      What kind of interface does this display have?
A:   The display set is using UART serial port (RS232/RS485/TTL) to communicate with any kind of MCU unit by HEX command sets.

4.      Can the display play video/audio files?
A:   Yes. The basic display set have 128 MB memory space and you can storage any video/audio file in it. The display can play the files directly.

5.      Are you using resistive touch or capacitive touch display?
A:   We have resistive touch, capacitive touch and non-touch display available.

6.      What else do I need to use this display set?
A:   We provide the cable, converter, software and manual. You just need a PC with windows system, and a 12V DC power supply to work with the display.

7.      I don’t know how to design the GUI or communicate with my device. Where can I get help?
A:   We provide a specific English manual and development guide for you. You can get any knowledge required for the developing. You can also check our YouTube channel for the instruction video, or directly contact with our sales to get some assistance.

8.      What if the display was broken or failed?
A:   We provide 3 years unconditional warranty for our I-serial and A serial display, 1 year unconditional warranty for the C-serial display. You can get a free replacement if your display was damaged or failed.
