5.0 inch LCD Display Controller with Touch Screen Support Any MCU/ Microcontroller 100PCS
Product Description
|
|
STVC050WT-03

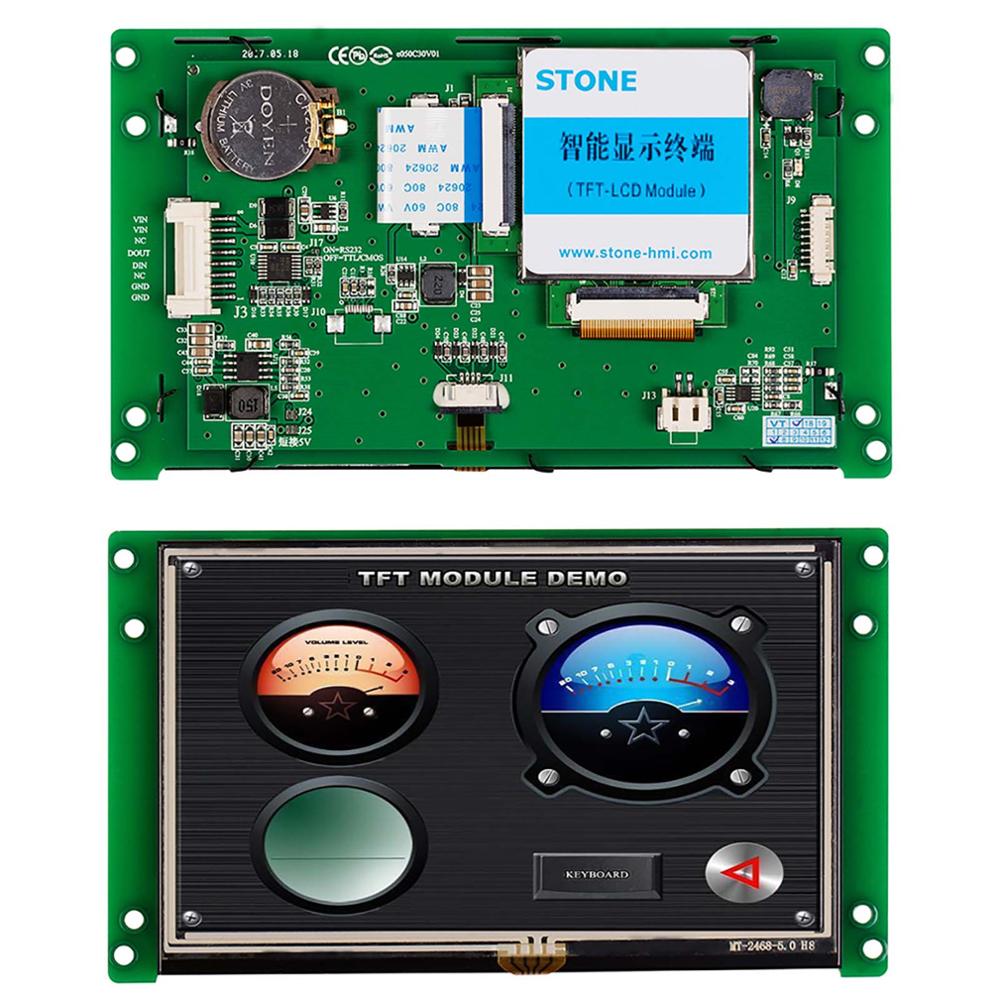

The STVC050WT-03 is the intelligent TFT LCD Module with UART PORT which can be controlled by ANY MCU via Simple Powerful Command Set. So it can be used as colourful TFT Display and amp; Touch controller in various electronic equipment.
The STVC050WT-03 include CPU , TFT Driver,Flash Memory,UART port,power supply and so on,the important is that it has the ready-made Basic Control Program and Powerful Design Software,so that it can reduce much development time and cost for engineers. |
Software Operation
|
|
1.Design a group of individual Graphic User Interface!
2.Connection by RS232/RS485/TTL/Level Directly!
3.Write the C or C++language program for ANY MCU to control the TFT-LCD Module via Simple and amp; Powerful Hex Command Set! |
Function
Physical Parameter
| Model | STVC050WT-03 |
| Size (Inch) | 5.0″ |
| Resolution | 800×RGB×480 |
| Color | 65536 colors (16 bit) |
| Viewing Area | 108 mm × 64.8 mm |
| Pixel Spacing | 0.1905 mm × 0.0635 mm(H×V) |
| Overall Dimension | 140mm×80.9mm×15.1mm(N)/16.4mm(T) |
| Net Weight | 195 g(N)/ 200 g(T) |
| TFT Panel | A+ Class Industry Panel |
| Touch Screen | Industry Level 4 wire resistance Or without touch screen is optional. |
Backlight Parameter
| Backlight Type | LED |
| Brightness | 400 cd/m2(Brightness can be adjustable in 100 levels.) |
| Contrast | 500:1 |
| Backlight life | 50,000 hours |
| Viewing Angle | 70°/ 70°/ 50°/ 70° (L/R/U/D) |
| Working Temperature | -20°C ~ +70°C |
| Working Humidity | 55°C, 85% |
| Storage Temperature | -30°C ~ +85°C |
| Screen Mode | Digital |
Performance Parameter
| CPU | CortexM4 |
| LCD Controller | CPLD EPM240 |
| Refresh Rate | 200MHz |
| Picture Switching Speed | 40 ms/picture (25 pictures/s) |
| Flash Memory | Standard 128m, Extension 1GB |
| Memory Amount for picture | According to the capability of the image, Suggest “JPG” format |
| Interface | RS232/ RS485/TTL/USB Interface |
| Pictures downloading | USB2.0 (12Mbps) and amp; U storage Disk downloading |
| Voltage Range | DC6.0V ~ 35V (typical value: 12V) |
| Power | 2.4W |
Test Report
| MTBF | 4,250,000H |
| Working Temperature | -20°C ~ +70°C |
| Air Humidity | 60°C, 90% |
| Continuous Vibration Testing | 10-55Hz, 1.5mm, 10G |
| Impact Acceleration Testing | 6ms, 100G |
| ESD Testing | 10KV |
| Radiation Reliability Testing | 44W |
Main Size of TFT LCD Module
| Size | Resolution |
| 3.5” | 320*240; |
| 4.3” | |
| 5” | 480*272; |
| 5.6” | |
| 5.7” | |
| 7” | ; |
| 8” | ; |
| 9.7” | |
| 10.1” | |
| 10.4” | |
| 12.1” | |
| 15.1” |
Why STONE TFT LCD Module Is Intelligent?
|
Item |
Hardware |
Software |
Operation |
Comparison |
 |
TFT Panel and amp; Driver and amp; Memory Flash and amp; UART/USB Port and amp;5-40V Power Supply |
GUI Design Software and amp; Hex Command Set |
Easy to operate,use simple instruction(Hex code)to control TFT module by any junior engineer |
1.Easy!Pwerfull!Saving! 2.Plug and Play. 3.Working fast. 4.Industrial class. 5.Components from Well-known Brands. |
|
PC |
Operation System |
Develop application programs by professional software engineer. |
1.Need professional operation. 2.Long startup time. 3.Working slowly. 4.High cost. |
|
|
Panel and amp;Driver |
None |
Write plenty of control programs for TFT module by professional engineer. |
1.Need tedious and amp; Professional work. 2.Cost lots of development time. 3.Unstable workin system. 4.Poor quality components. |
|
|
Just panel |
None |
1.Develop hardware and driver.2.Write programs by professional engineer. |
1.Need tedious and amp;Professional work. 2.Cost even more development time. 3.Unstable working system. 4.Cheap imitated components. |
