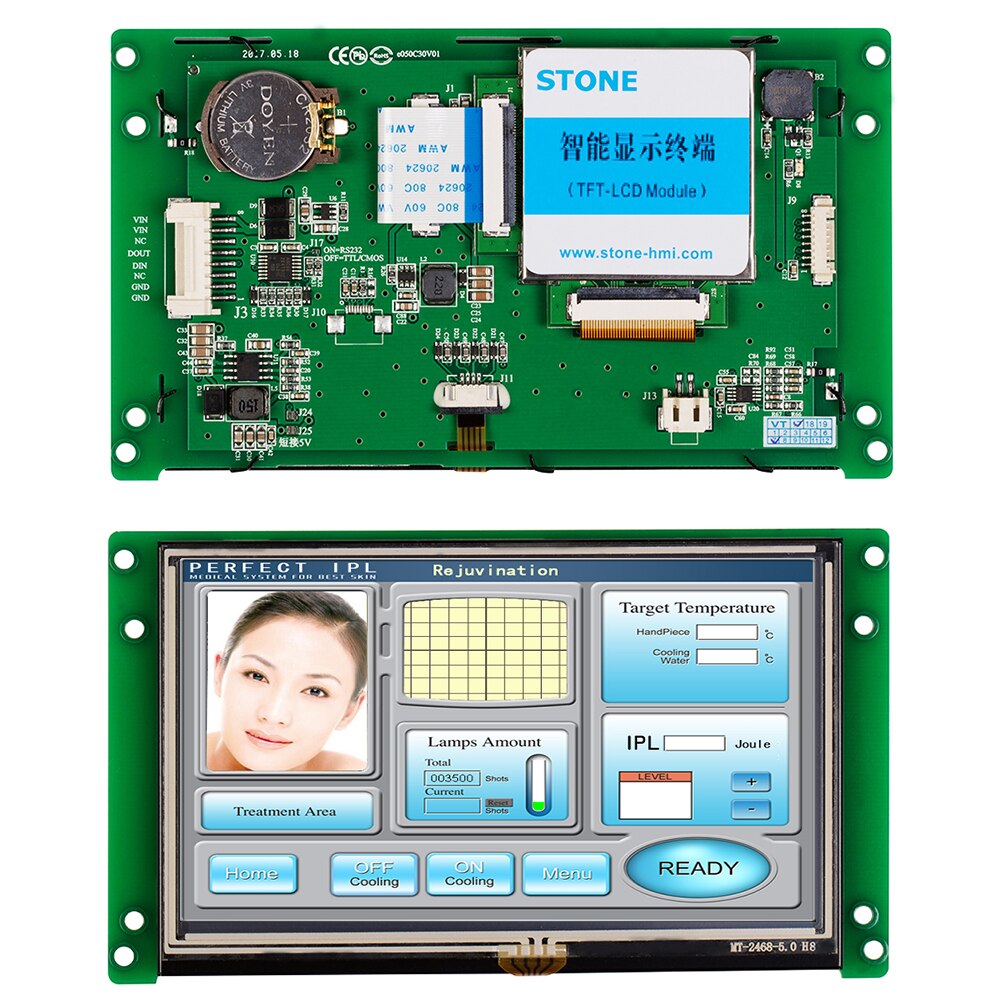

5.0″ TFTLCD Screen Module with Intelligent Controller + Serial Interface for Industrial Control 100PCS
Product Parameters
Physical Parameter
| Model | STVC050WT-03 |
| Size (Inch) | 5.0″ |
| Resolution | 800×RGB×480 |
| Color | 65536 colors (16 bit) |
| Viewing Area | 108 mm × 64.8 mm |
| Pixel Spacing | 0.1905 mm × 0.0635 mm(H×V) |
| Overall Dimension | 140mm×80.9mm×15.1mm(N)/16.4mm(T) |
| Net Weight | 195 g(N)/ 200 g(T) |
| TFT Panel | A+ Class Industry Panel |
| Touch Screen | Industry Level 4 wire resistance Or without touch screen is optional. |
Backlight Parameter
| Backlight Type | LED |
| Brightness | 400 cd/m2(Brightness can be adjustable in 100 levels.) |
| Contrast | 500:1 |
| Backlight life | 50,000 hours |
| Viewing Angle | 70°/ 70°/ 50°/ 70° (L/R/U/D) |
| Working Temperature | -20°C ~ +70°C |
| Working Humidity | 55°C, 85% |
| Storage Temperature | -30°C ~ +85°C |
| Screen Mode | Digital |
Performance Parameter
| CPU | CortexM4 |
| LCD Controller | CPLD EPM240 |
| Refresh Rate | 200MHz |
| Picture Switching Speed | 40 ms/picture (25 pictures/s) |
| Flash Memory | Standard 128m, Extension 1GB |
| Memory Amount for picture | According to the capability of the image, Suggest “JPG” format |
| Interface | RS232/ RS485/TTL/USB Interface |
| Pictures downloading | USB2.0 (12Mbps) and amp; U storage Disk downloading |
| Voltage Range | DC6.0V ~ 35V (typical value: 12V) |
| Power | 2.4W |
Test Report
| MTBF | 4,250,000H |
| Working Temperature | -20°C ~ +70°C |
| Air Humidity | 60°C, 90% |
| Continuous Vibration Testing | 10-55Hz, 1.5mm, 10G |
| Impact Acceleration Testing | 6ms, 100G |
| ESD Testing | 10KV |
| Radiation Reliability Testing | 44W |
Main Size of TFT LCD Module
| Size | Resolution |
| 3.5” | 320*240; |
| 4.3” | |
| 5” | 480*272; |
| 5.6” | |
| 5.7” | |
| 7” | ; |
| 8” | ; |
| 9.7” | |
| 10.1” | |
| 10.4” | |
| 12.1” | |
| 15.1” |
