4.3 Inch HMI Programmable Full Color TFT LCD Display with Controller Support Any Microcontroller 100PCS

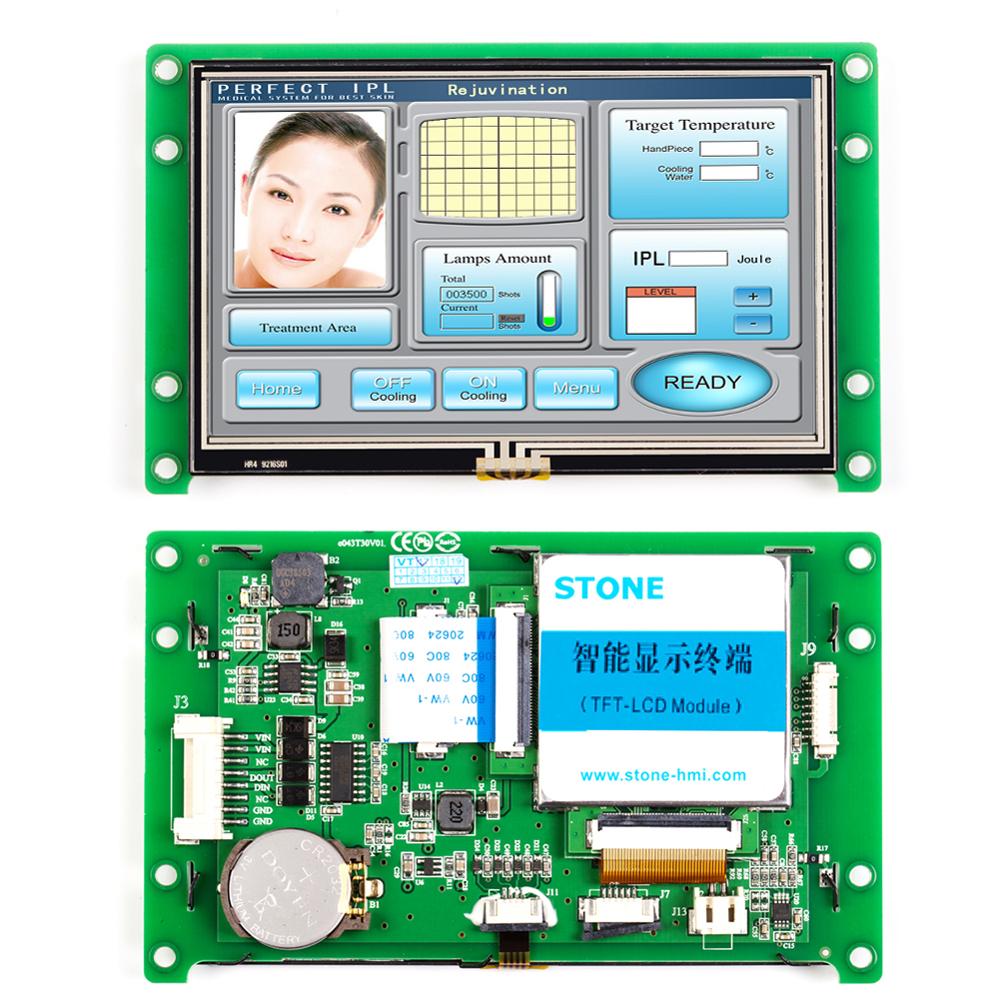

4.3″ Programmable Full Color TFT LCD Display with Controller Support Any Microcontroller



Product Parameters



Physical Parameter

 Model

 STVI043WT-01

 Size (Inch)

 4.3″

 Resolution  480×RGB×272
 Color  65536 colors (16 bit)
 Viewing Area  95 mm × 53.9 mm
 Pixel Spacing  0.1905 mm × 0.0635 mm(H×V)
 Overall Dimension  121.9mm×74.7mm×13.8mm(N)/15.4mm(T)
 Net Weight  115 g(N)/ 155 g(T)
 TFT Panel  A+ Class Industry Panel
 Touch Screen  Industry Level 4 wire resistance Or without touch screen is optional.

Backlight Parameter

 Backlight Type  LED
 Brightness  400 cd/m2(Brightness can be adjustable in 100 levels.)
 Contrast  500:1
 Backlight life  30,000 hours
 Viewing Angle  70°/ 70°/ 50°/ 70° (L/R/U/D)
 Working Temperature  -20°C ~ +70°C
 Working Humidity  55°C, 85%
 Storage Temperature  -30°C ~ +85°C
 Screen Mode  Digital

Performance Parameter

 CPU  CortexM4
 LCD Controller  CPLD EPM240
 Refresh Rate  200MHz
 Picture Switching Speed  19 ms/picture (53 pictures/s)
 Flash Memory  Standard 128m, Extension 1GB
 Memory Amount for picture  According to the capability of the image, Suggest “JPG” format
 Interface  RS232/ USB Interface
 Pictures downloading  USB2.0 (12Mbps) and amp; U storage Disk downloading
 Voltage Range  DC6.0V ~ 35V (typical value: 12V)
 Power  1.0W

 Test Report

 MTBF  4,250,000H
 Working Temperature  -20°C ~ +70°C
 Air Humidity  60°C, 90%
 Continuous Vibration Testing  10-55Hz, 1.5mm, 10G
 Impact Acceleration Testing  6ms, 100G
 ESD Testing  10KV
 Radiation Reliability Testing  44W



Main Size of TFT LCD Module

 Size  Resolution
 3.5”  320*240;
 4.3”  480*272
 5” ;
 5.6”
 5.7”
 7” ;
 8” ;
 9.7”
 10.1”
 10.4”
 12.1”
 15.1”
