3.5″ Open Frame Programmable Monitor 320*240 with Software + Touch Controller + Serial Interface 100PCS
 |
STVI035WT-01
The STVI035WT-01 is the intelligent TFT LCD Module with UART PORT which can be controlled by ANY MCU via Simple Powerful Command Set. So it can be used as colourful TFT Display and amp; Touch controller in various electronic equipment.
The STVI035WT-01 include CPU , TFT Driver,Flash Memory,UART port,power supply and so on,the important is that it has the ready-made Basic Control Program and Powerful Design Software,so that it can reduce much development time and cost for engineers. |
Physical Parameter
| Model | STVI035WT-01 |
| Size (Inch) |
3.5″ |
| Resolution | 320×RGB×240 |
| Color | 65536 colors (16 bit) |
| Viewing Area | 70.1mm × 52.6 mm |
| Pixel Spacing | 0.1905 mm × 0.0635 mm(H×V) |
| Overall Dimension | 93mm×70.1mm×14.9mm(N)/16.5mm(T) |
| Net Weight | 85 g(N)/ 100 g(T) |
| TFT Panel | A+ Class Industry Panel |
| Touch Screen | Industry Level 4 wire resistance Or without touch screen is optional. |
Backlight Parameter
| Backlight Type | LED |
| Brightness | 400 cd/m2(Brightness can be adjustable in 100 levels.) |
| Contrast | 500:1 |
| Backlight life | 30,000 hours |
| Viewing Angle | 70°/ 70°/ 50°/ 70° (L/R/U/D) |
| Working Temperature | -20°C ~ +70°C |
| Working Humidity | 55°C, 85% |
| Storage Temperature | -30°C ~ +85°C |
| Screen Mode | Digital |
Performance Parameter
| CPU | CortexM4 |
| LCD Controller | CPLD EPM240 |
| Refresh Rate | 200MHz |
| Picture Switching Speed | 12 ms/picture (83 pictures/s) |
| Flash Memory | Standard 128m, Extension 1GB |
| Memory Amount for picture | According to the capability of the image, Suggest “JPG” format |
| Interface | RS232/ RS485/TTL/USB Interface |
| Pictures downloading | USB2.0 (12Mbps) and amp; U storage Disk downloading |
| Voltage Range | DC6.0V ~ 40V (typical value: 12V) |
| Power | 0.8W |
Test Report
| MTBF | 4,250,000H |
| Working Temperature | -20°C ~ +70°C |
| Air Humidity | 60°C, 90% |
| Continuous Vibration Testing | 10-55Hz, 1.5mm, 10G |
| Impact Acceleration Testing | 6ms, 100G |
| ESD Testing | 10KV |
| Radiation Reliability Testing | 44W |
Main Size of TFT LCD Module
| Size | Resolution |
| 3.5” | 320*240; |
| 4.3” | |
| 5” | ; |
| 5.6” | |
| 5.7” | |
| 7” | ; |
| 8” | ; |
| 9.7” | |
| 10.1” | |
| 10.4” | |
| 12.1” | |
| 15.1” |

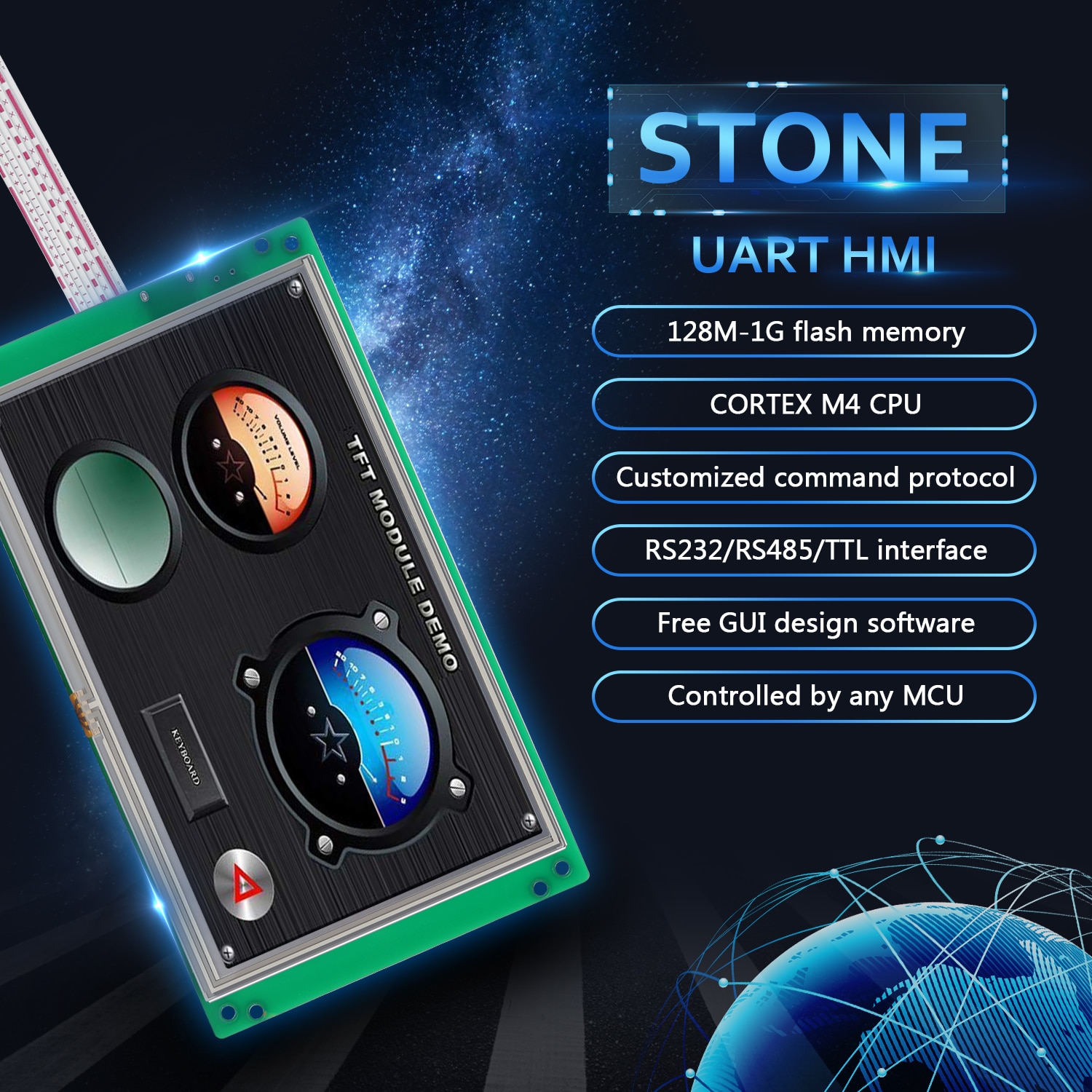

Product Picture
|
Item |
Hardware |
Software |
Operation |
Comparison |
|
|
TFT Panel and amp;Driver and amp;Memory Flash and amp;UART/USB Port and amp;5-40V Power Supply |
GUI Design Software and amp;Hex Command Set |
Easy to operate,use simple instruction (Hex code)to control TFT module by any junior engineer. |
1.Easy!Pwerfull!Saving! 2.Plug and Play. 3.Working fast. 4.Industrial class. 5.Components from Well-known Brands. |
|
PC |
Operation System |
Develop application programs by professional software engineer. |
1.Need professional operation. 2.Long startup time. 3.Working slowly. 4.High cost. |
|
|
Panel and amp;Driver |
None |
Write plenty of control programs for TFT module by professional engineer. |
1.Need tedious and amp; Professional work. 2.Cost lots of development time. 3.Unstable working system. 4.Poor quality components. |
|
|
Just panel |
None
|
1.Develop hardware and driver. 2.Write programs by professional engineer. |
1.Need tedious and amp; Professional work. 2.Cost even more development time. 3.Unstable working system. 4.Cheap imitated components. |
|
Beijing STONE Technology Co.,Ltd. is a leading manufacturer of HMI product (Intelligent TFT LCD Module and Industrial PC).Characterized with cutting-edge technology and reliable support for customers from over 80 countries, And having specialized experience in TFT LCD Module and industrial PC’s R and amp;D, manufacture and market for more than 14 years from 2004.We always following the STONE spirit of “Professional Reliable Successful” these years, and have achieved tremendous success in the global market due to leading technology, reliable service and price domination. |
1. Does your product include program software?
A: Yes. The free graphic user interface software is included.
2. How do you program the display?
A: We don’t have to write any code for the display or program the driver. Our display set include CPU and memory, you can directly use .jpg file to generate a GUI and use it to send HEX command set to communicate with your micro control unit.
3. What kind of interface does this display have?
A: The display set is using UART serial port (RS232/RS485/TTL) to communicate with any kind of MCU unit by HEX command sets.
4. Can the display play video/audio files?
A: Yes. The basic display set have 128 MB memory space and you can storage any video/audio file in it. The display can play the files directly.
5. Are you using resistive touch or capacitive touch display?
A: We have resistive touch, capacitive touch and non-touch display available.
6. What else do I need to use this display set?
A: We provide the cable, converter, software and manual. You just need a PC with windows system, and a 12V DC power supply to work with the display.
7. I don’t know how to design the GUI or communicate with my device. Where can I get help?
A: We provide a specific English manual and development guide for you. You can get any knowledge required for the developing. You can also check our YouTube channel for the instruction video, or directly contact with our sales to get some assistance.
8. What if the display was broken or failed?
A: We provide 3 years unconditional warranty for our I-serial and A serial display, 1 year unconditional warranty for the C-serial display. You can get a free replacement if your display was damaged or failed.
