Specifications:

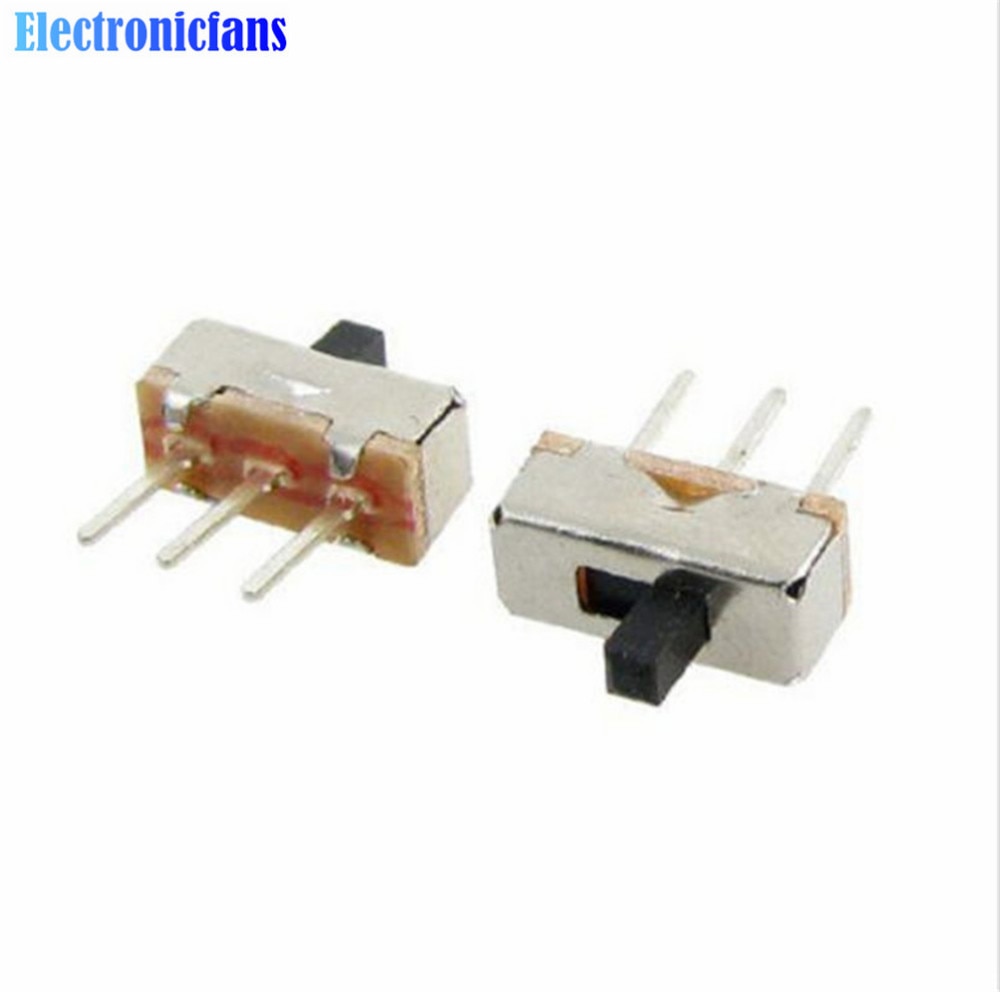

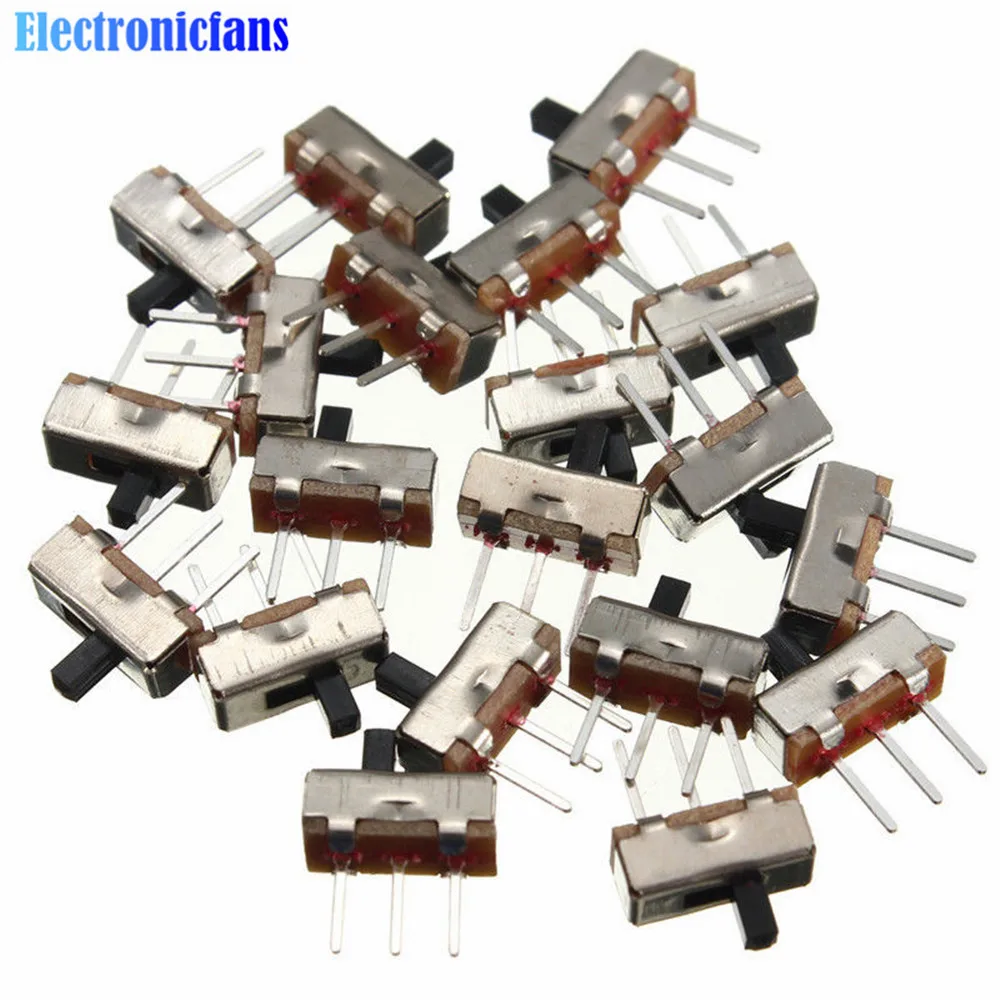

Product Name : Slide Switch
Model : SS-12D00G3
Type : 1 Pole 2 Throw
Terminal Quantity : 3 Pcs
Working Power : 0.5A 50V DC
Contact Resistance : 30mΩ Max
Insulation Resistance : 100mΩ Min at 500V DC
Withstand Voltage : AC 500V for 1 min
Terminal Length : 3mm/ 0.12″
Pin Pitch : 2.54mm / 1″
Main Body Size(not include Pins and amp; Knob) : 8 x 4 x 3.8mm/ 0.31″ x 0.16″ x 0.15″(L*W*H)
Switch Total Size : 8 x 4 x 10mm/ 0.31″ x 0.16″ x 0.39″(L*W*H)
Knob Size : 1.5 x 1.5 x 3mm/ 0.06″ x 0.06″ x 0.12″(L*W*H)
Material(External) : Plastic, Metal
Main Color : Silver Tone, Black
