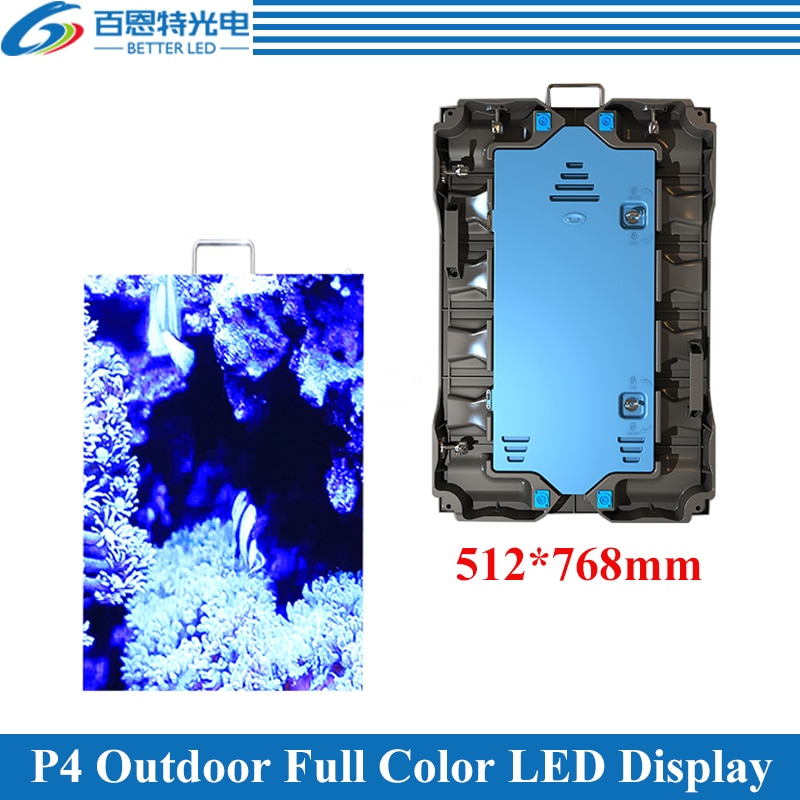

128*192 pixels 512*768mm Rental cabinet RGB 3in1 SMD Full color P4 Outdoor Rental LED display screen
1. This is a customized product, it maybe need 10~18 days Processing time, so please help extend Processing time about 7 days when you place the order. Thanks! If you need 1 sample to test, please contact us!
2. This product include Linsn RV908 Receiving card, but not include Sending card. And If you need other Control system, please contact us;
3. We suggest that you could buy some LED modules as spare parts;
4. We will pack this product by Wooden case. If you need Flight case, you also could buy it from us!
|
Display and Control Feature |
Structure Feature |
||
|
Items |
Parameter |
Items |
Parameter |
|
Pixel Pitch |
4mm |
LED module size |
256mm*128mm |
|
Pixel composing |
1R1G1B(3IN1) |
Display resolution/module |
128 dots*192dots |
|
Wavelength (R) |
625±5nm |
Standard cabinet size |
512*768mm |
|
Wavelength (G) |
522±2.5nm |
Weight per sqm |
35 Kg/sqm |
|
Wavelength (B) |
465±2.5nm |
Protection classification |
IP65 |
|
Wave Angle (H) |
140°(H)/60°(V) |
Install mode |
Wall mounted, hung and stand structure |
|
LED package |
SMD1921 or 2525 |
Cabinet Material |
Aluminum/Iron |
|
Density |
40000 |
Working Power |
|
|
Display color |
256*256*256 |
Specification |
Parameter |
|
Whiteness brightness |
≥6000nit |
Working voltage |
AC 220v/380v±10% 47~64Hz |
|
Brightness level |
128 grade |
Max power/sqm |
1200W/sqm |
|
Changing frame frequency |
60 Hz |
Average power/sqm |
600W/sqm |
|
Refresh |
400 Hz |
Short circuit protection |
Yes |
|
Driving method |
Constant current 1/8 scan |
|
|
|
Control mode |
synchronous |
Working Environment |
|
|
Display port |
DVI |
Specification |
Parameter |
|
Display mode |
1024*768 |
Environment |
Outdoor |
|
Out of control |
1/10,000 ( scattered) |
Working temperature |
–20~60°C |
|
lifetime |
100,000 hours |
Working Humidity |
10~90% |
Application: Indoor full color SMD P4 LED display, Advertising LED display,Rental LED screen,Stadium LED display,LED sign,Stage LED Display,Mobile LED display,LED Video Wall,Traffic LED Display etc.
