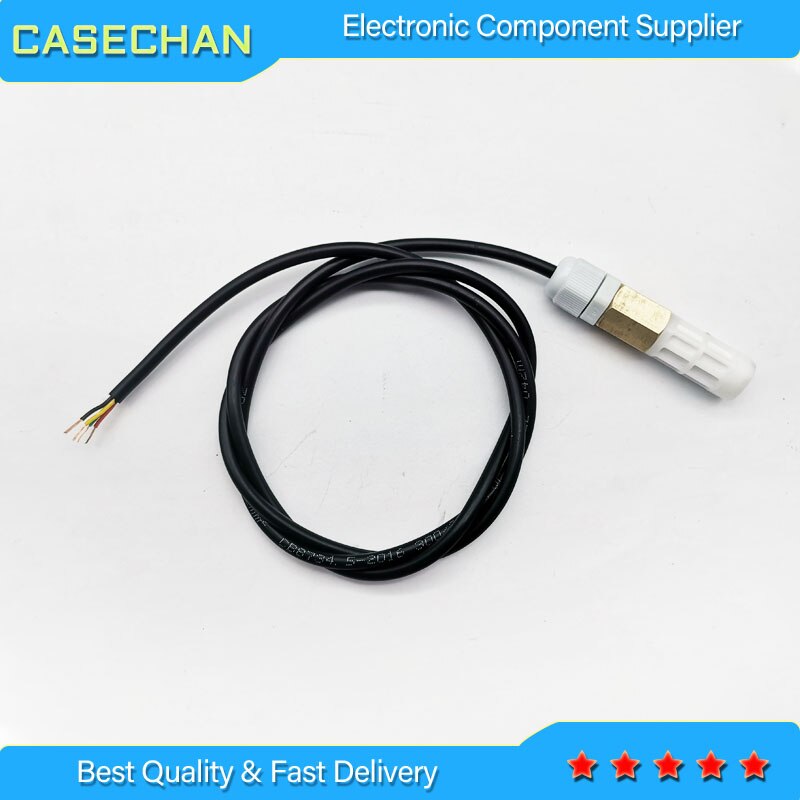

1) Brand new original sensors.
2) all with a 10k pull-up resistor and filter capacitor 0.1uf
3) all do double water treatment.
4) Before the factory on 100% electric aging test.
The default wire length is 1M. If you need to extend the wire, please contact us to modify the price.
SHT10:
Power supply voltage: 2.4-5.5VDC
Measurement accuracy: temperature ± 0.5 ℃, humidity ± 4.5% RH
Range: -40 ~ + 123.8 ℃, 0 ~ 100% RH
Energy consumption: 80uw
Wiring instructions: RED-VCC, BLACK-GNU, GREEN-DATA, YELLOW = CLK
SHT20:
Power supply voltage: 2.1-3.6VDC (do not use 5V, otherwise it will burn)
Measurement accuracy: temperature ± 0.3 ℃, humidity ± 3% RH
Range: -40 ~ + 125 ℃, 0 ~ 100% RH
Energy consumption: 3.2uw
Wiring instructions: RED-VCC, BLACK-GNU, GREEN-SDA, YELLOW = SCL
SHT30:
Power supply voltage: 2.4-5.5VDC (do not use 5V, otherwise it will burn)
Measurement accuracy: temperature ± 0.3 ℃, humidity ± 3% RH
Range: -40 ~ + 125 ℃, 0 ~ 100% RH
Energy consumption: 4.8uw
Wiring instructions: RED-VCC, BLACK-GNU, GREEN-SDA, YELLOW = SCL
