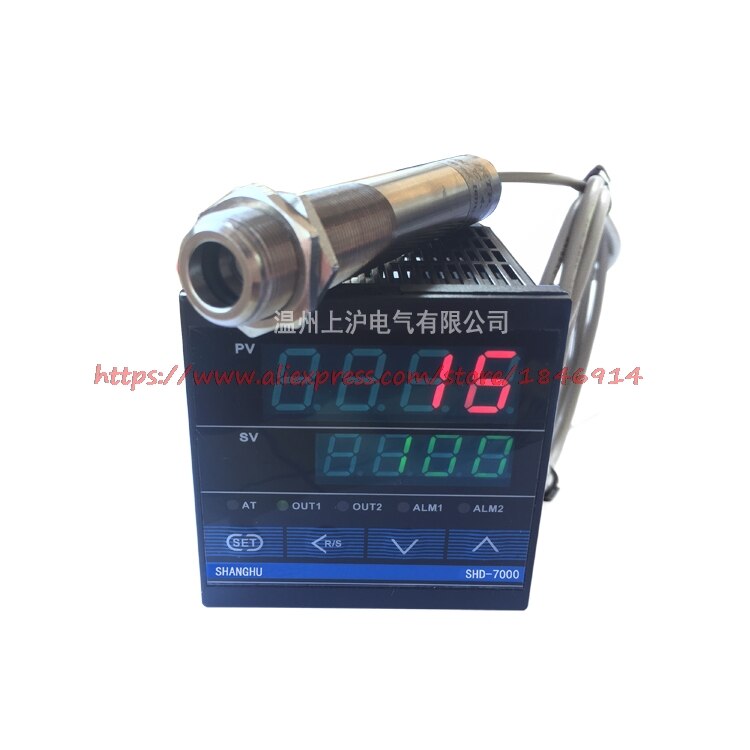

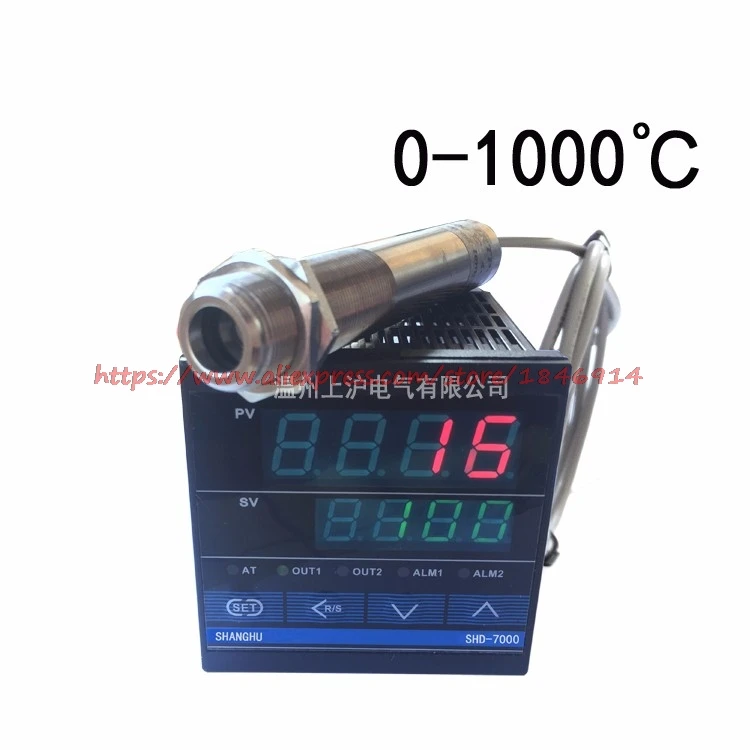

Infrared temperature measuring instrument technical parameters:
Model: IRTP-1000LS
Temperature range: 0-1000 C (can be customized temperature range -20~3000 degrees C)
Temperature measurement accuracy: + 1%
Ambient temperature: 0-50
Storage temperature: -20-60
Response time: 100ms
Distance factor: 15: 1 (customizable 1:1:1, 2:1, 4:1, 20:1, 30:1100:1,)
Power supply: +24VDC
Size: 18mmX 98mm (L)
Signal output: Standard 4-20mA (customizable 1-5V, 1-10V, 0-10V, 0-5V)
Technical parameters of temperature controller:
* double digital display temperature very fast;
* thermocouple, thermal resistance, analog signal, such as a variety of free input, range free settings;
* software zero full degree, cold end temperature measurement, the amplifier from zero, the display accuracy is better than 0.2%FS;
* fuzzy theory combined with the traditional PID method, the control of fast and smooth;
* advanced PID parameter self-tuning method, the whole set time shorter than the general instrument 1/3;
* output optional: relay contact, SSP drive level, phase shift trigger pulse and analog quantity, the other two can be defined as the output of alarm contacts.
