Model
SG-PTZ2068N-6T75

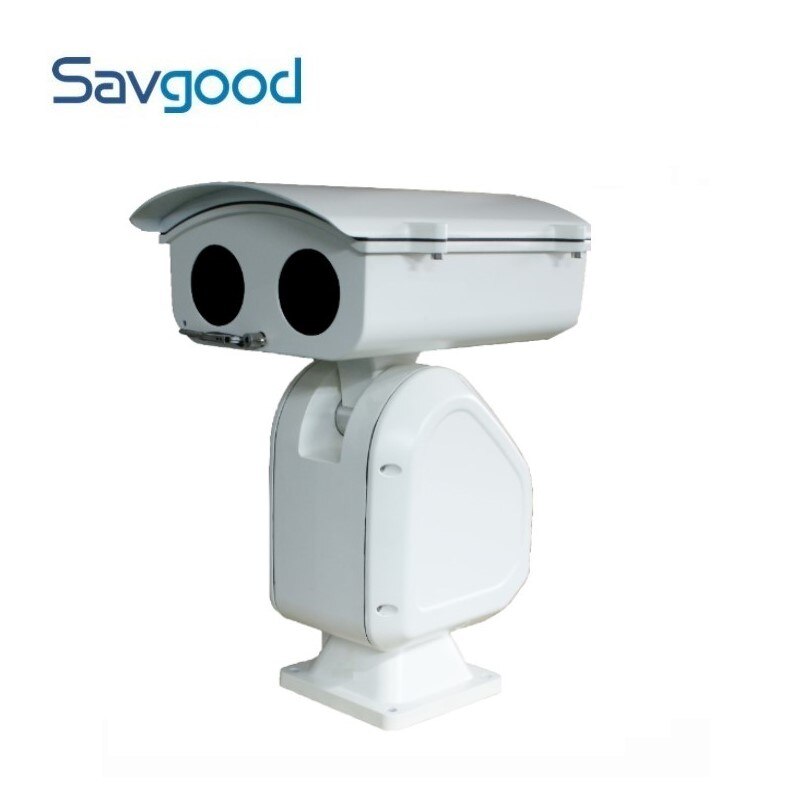

– Thermal + Optical Bi-spectrum Heavy Load High Precision Network PTZ Camera
– 640×512 Detector with 75mm Motor Lens Network Thermal Imaging Camera Module
– 2Mp 6~408mm 68x Optical Zoom Starlight Network Zoom Camera Module
Features
and gt; Horizontal 360° rotation, speed up to 0.1°~150°/s
and gt; Vertical -90°~+40°, speed up to 0.1°~60°/s
and gt; Precision of pre-positioning ±0.1°
Visible Camera
and gt; 1/1.8″ Sony Exmor CMOS Sensor.
and gt; Powerful 68x optical zoom (6~408mm).
and gt; Max. 2Mp(1920×1080) Resolution
and gt; Support various IVS functions
and gt; Support video output from the network port.
Thermal Camera
and gt; 640x512 Resolution, high sensitivity sensor
and gt; 17um Pixel pitch.
and gt;75mm Motor Thermal Lens
and gt; Support various IVS functions
Specification
|
Model |
SG-PTZ2068N-6T75 |
||
|
Thermal |
|||
|
Sensor |
Image Sensor |
Uncooled VOx microbolometer |
|
|
Resolution |
640 x 512 |
||
|
Pixel Size |
17μm |
||
|
Spectral Range |
8~14μm |
||
|
NETD |
≤50mK@25℃, F#1.0 |
||
|
Lens |
Focal Length |
75mm Motor Lens |
|
|
Digital Zoom |
8x |
||
|
F Value |
F1.0 |
||
|
Protection Level |
IP66 waterproof for the 1st Glass of Lens. |
||
|
Video |
Compression |
H.265/H.264/H.264H |
|
|
Snapshot |
JPEG |
||
|
Pseudo color |
Support: White Hot, Black Hot, Iron Red, Rainbow 1, Fulgurite, Rainbow 2, Fusion, Bluish Red, Amber, Arctic, Tint |
||
|
Streams |
Main Stream: 25fps@(704×576), 25fps@(352×288) Sub Stream: 25fps@(704×576), 25fps@(352×288) |
||
|
Network |
Network Protocol |
IPv4/IPv6, HTTP, HTTPS, Qos, FTP, SMTP, UPnP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, DHCP, PPPoE, 802.1X, IP Filter |
|
|
Interoperability |
ONVIF Profile S, Open API, SDK |
||
|
Max. Connection |
20 |
||
|
Intelligence |
Normal Event |
Motion Detection, Audio detection, IP address conflict, Illegal Access, Storage anomaly |
|
|
IVS functions |
Support intelligent functions: Tripwire, Cross Fence Detection, Intrusion, Loitering Detection. |
||
|
Fire Detection |
Support |
||
|
Resolution |
50Hz: 25fps@(704×576) |
||
|
Storage Capabilities |
Micro SD card, up to 256G |
||
|
Visible |
|||
|
Sensor |
Image Sensor |
1/1.8″ Sony Exmor R STARVIS CMOS |
|
|
Effective Pixels |
Approx. 4.53 Megapixel |
||
|
Max. Resolution |
2688(H)×1520(V) |
||
|
Lens |
Focal Length |
6mm~408mm, 68x Optical Zoom |
|
|
Aperture |
F1.4~F4.6 |
||
|
Close Focus Distance |
1m~1.5m (Wide~Tale) |
||
|
Angle of View |
58°~1.4° |
||
|
Video Network |
Compression |
H.265/H.264/H.264H/MJPEG |
|
|
Storage Capabilities |
TF card, up to 128G |
||
|
Network Protocol |
Onvif, GB28181, HTTP, RTSP, RTP, TCP, UDP |
||
|
Resolution |
50Hz: 50fps/25fps@2Mp(1920×1080), 25fps@1Mp(1280×720) 60Hz: 60fps/30fps@2Mp(1920×1080), 30fps@1Mp(1280×720) |
||
|
IVS |
Tripwire, Cross Fence Detection, Intrusion, Abandoned Object, Fast-Moving, Parking Detection, Crowd Gathering Estimation, Missing Object, Loitering Detection. |
||
|
S/N Ratio |
≥55dB (AGC Off, Weight ON) |
||
|
Minimum Illumination |
Color: 0.005Lux/F1.4; B/W: 0.0005Lux/F1.4 |
||
|
EIS |
N/A |
||
|
Exposure Compensation |
ON/OFF |
||
|
Strong Light Suppression |
ON/OFF |
||
|
Day/Night |
Auto/Manual |
||
|
Zoom Speed |
Approx. 8s (Optical Wide-Tele) |
||
|
Electronic Defog |
ON/OFF |
||
|
White Balance |
Auto/Manual/ATW/Indoor/Outdoor/ Outdoor Auto/ Sodium lamp Auto / Sodium lamp |
||
|
Electronic Shutter Speed |
Auto Shutter (1/3s~1/30000s) Manual Shutter (1/3s~1/30000s) |
||
|
Exposure |
Auto/Manual |
||
|
2D Noise Reduction |
Support |
||
|
3D Noise Reduction |
Support |
||
|
Flip |
Support |
||
|
Communication Interface |
Compatible with the SONY VISCA Protocol |
||
|
Focus Mode |
Auto/Manual/Semi-automatic |
||
|
Pan Tilt |
|||
|
Power On/OFF Self-Checking |
Yes |
||
|
Preset |
255 |
||
|
Communication Mode |
RS485 |
||
|
Pan/Tilt Range |
Pan: 360° rotate; Tilt: -90°~+40° |
||
|
Pan Speed |
Configurable, pan: 0.1°~150°/s |
||
|
Tilt Speed |
Configurable, pan: 0.1°~60°/s |
||
|
Precision of pre-positioning |
±0.1° |
||
|
Scan |
Support |
||
|
Wiper |
Support (For visible camera) |
||
|
Interface |
|||
|
Power Interface |
Support |
||
|
Ethernet |
1x RJ45 (10Base-T/100Base-TX) |
||
|
Audio I/O |
1/1 (for Visible Camera only) |
||
|
Alarm I/O |
1/1 |
||
|
Analog Video |
1 port (BNC, 1.0V[p-p], 75Ω) for Visible Camera only |
||
|
RS485 |
1 |
||
|
General |
|||
|
Waterproof |
IP66 |
||
|
Power |
DC 36V Power input |
||
|
Power Consumption |
50W |
||
|
Humidity |
0-90% non-condensing |
||
|
Working temperature |
-40°C~70°C/20% to 90%RH |
||
|
Dimensions(L*W*H) |
489mm*327mm*244mm |
||
|
Weight |
Approx. 20kg |
||
