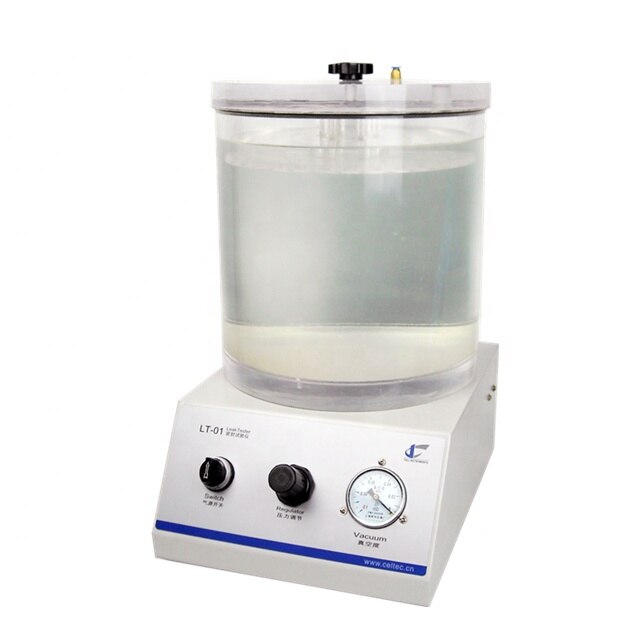

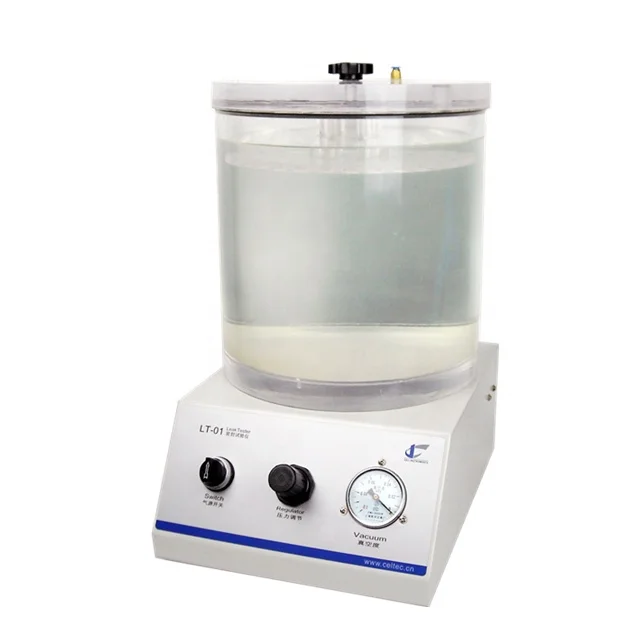

Vacuum leak tester ASTM D3078 Package Leaking Test Machine Seal Integrity Testing Equipment

Vacuum leak tester ASTM D3078 Package Leaking Test Machine Seal Integrity Testing Equipment

Vacuum Leak Tester ASTM D3078 Test Principle

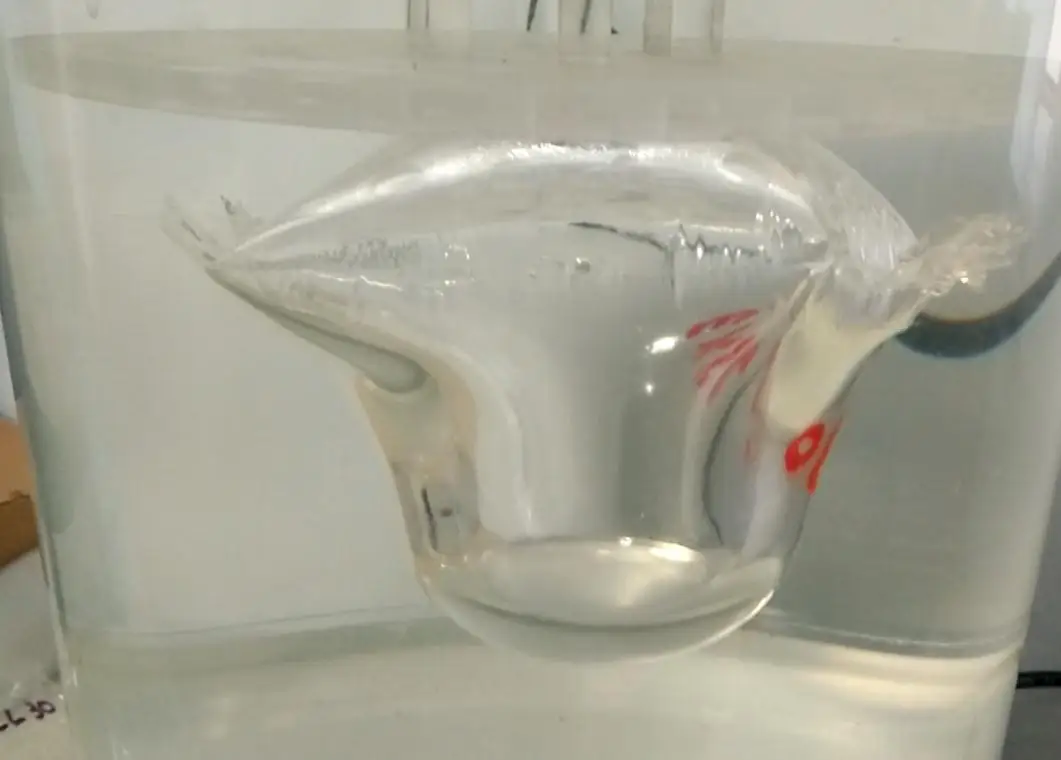

A test sample is placed into a vacuum chamber with water and the air above water level is evacuated by a venturi vacuum ejector. A quantified pressure difference is created inside and outside the sample and the continuous leaks can be observed and identified when the sample is inflated.
Product Description
Products Description
Leak tester is used in food, beverage, pharmaceutical, daily chemical and electronic industries and is for the seal integrity test
of various forms of packages.
Product Paramenters
 Vacuum
0~-90KPa/0~-13PSI
 Vacuum chamber size
Φ270 mm x 210 mm (H) ( other size available)
 Gas source
Compressed air
 Gas Pressure
0.7MPa/101.5PSI
Manufacturing Technique



1. The leak test system requires no electricity, only compressed air
2. Extra-thick PMMA
3. Different chamber sizes available
4. No calibration needed
5. No vacuum pump required
6. Easy installation, start-up and operation
7. Low cost of maintenance
