TTGO LoRa32 V2.1 Bluetooth WIFI Wireless Module 433/868/915Mhz ESP32 0.96 Inch Modules SMA IP5306

TTGO LoRa32 V2.1 Bluetooth WIFI Wireless Module   433/868/915Mhz ESP32 0.96 inch Bluetooth WIFI wireless module SMA IP5306

Product Description

Working voltage:1.8~3.7v

Acceptable current:10~14mA

Transmit current: 120mA@+20dBm

90mA@+17dBm

29mA@+13dBm

Operating frequency:  868M/915MHz

Transmit power:  +20dBm

Receive sensitivity :-139dBm@LoRa and amp;62.5Khz and amp;SF=12 and amp;146bps

-136dBm@LoRa and amp;125Khz and amp;SF=12 and amp;293bps

-118dBm@LoRa and amp;125Khz and amp;SF=6 and amp;9380bps

-123dBm@FSK and amp;5Khz and amp;1.2Kbps

Frequency error:+/-15KHz

FIFO space :64Byte

Data rate :1.2K~300Kbps@FSK

0.018K~37.5Kbps@LoRa

Modulation Mode :FSK,GFSK,MSK,GMSK,LoRa TM,OOK

Interface form :SPI

Sleep current :0.2uA@SLEEP

1.5uA@IDLE

Operating temperature :-40°- +85°

Digital RSSI function

Automatic frequency correction

Automatic gain control

Fast wake-up and frequency hopping

Highly configurable data packet handler

SMA Antenna

TP4054

Datadownload  link:

LORA_1.5  version:

LORA_1.6  version:

LED:

IO23

IO25

LORA  pin:

IO18=NSS/SEL

IO18=NSS/SEL

IO5=SCK

IO5=SCK

IO27=MOSI/SDI

IO27=MOSI/SDI

IO19=MISO/SDO

IO19=MISO/SDO

IO26=DI0/IO0

IO26=DI0/IO0

IO12=IRQ/RESET

IO23=IRQ/RESET

SD  card:

SD3-CS-IO13

SD3-CS-IO13

CMD-MOS1-IO15

CMD-MOS1-IO15

CLK-SCK-IO14

CLK-SCK-IO14

SD0-MISO-IO2

SD0-MISO-IO2

DATA2:IO12

DATA2:IO4

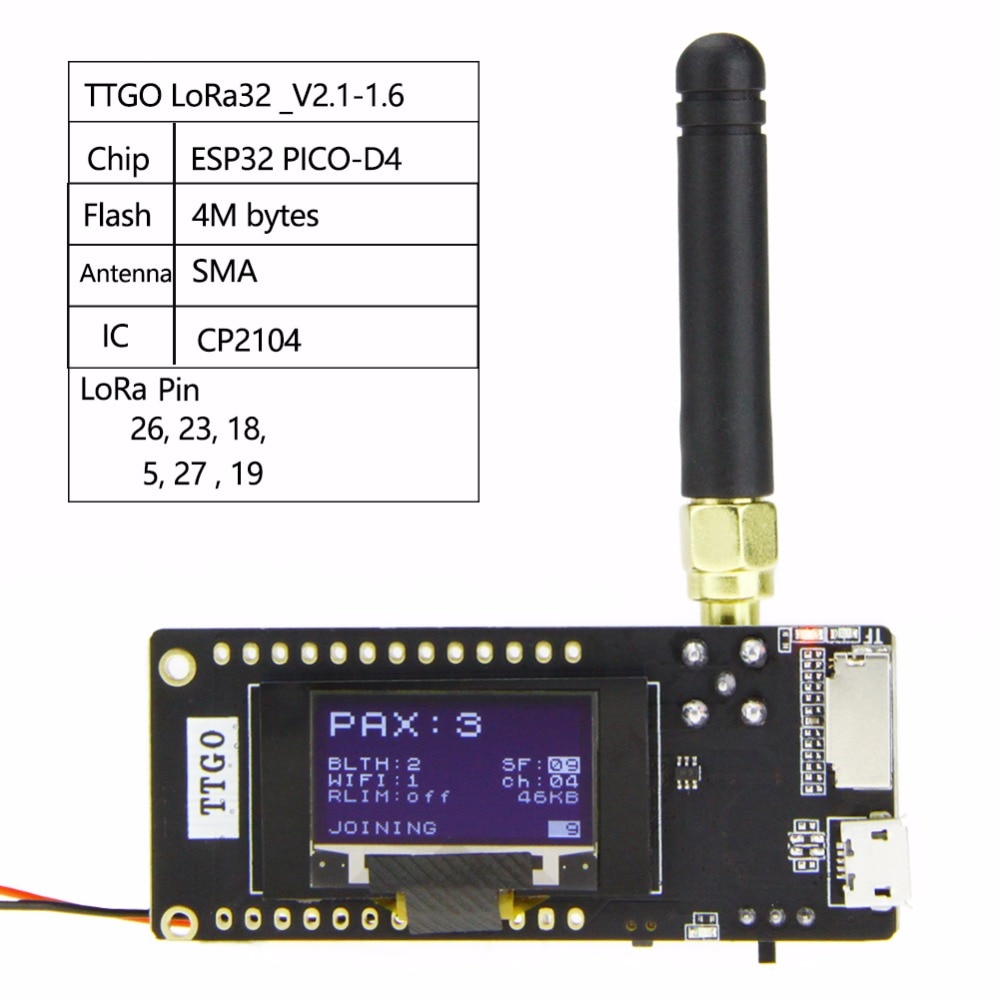

TTGO LoRa32 V2.1_1.6 version  Structure diagram

Pin  Schematic

At the TTGO LoRa V2.1_1.6 ,we add the SMA and TP4054 to the board,which make it can do more things.In terms of the power switch, we have changed the switching interaction mode. The added SMA antenna can enhance signal transmission.

(Notice:The shipping list does not include battery and SD card)

Shipping List

1 X TTGO LoRa32 V2.1 433/868/915 Module

2 X Pin

1 X  Antenna

1 X Power Cable

TTGO LoRa32 V2.1 Bluetooth WIFI Wireless Module 433/868/915Mhz ESP32 0.96 Inch Modules SMA IP5306
