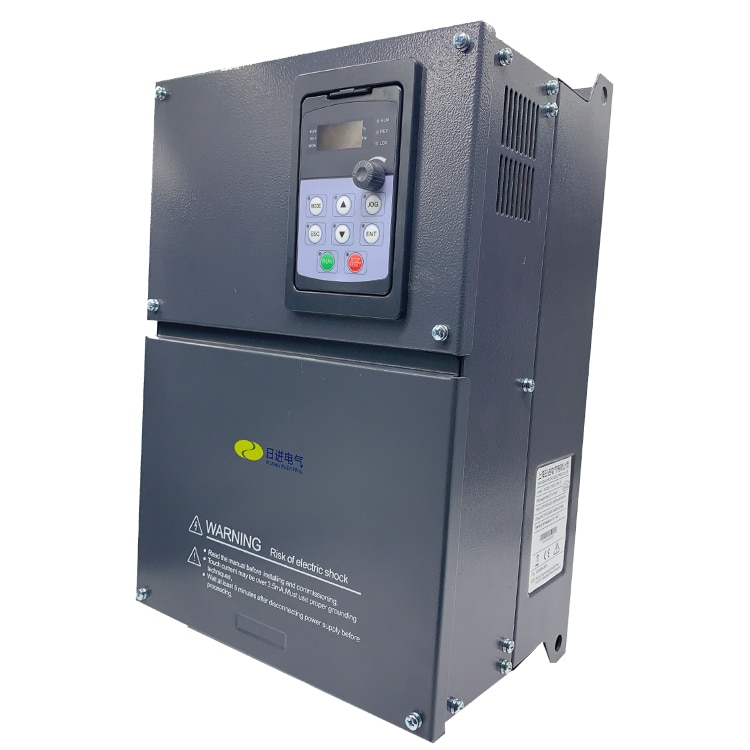

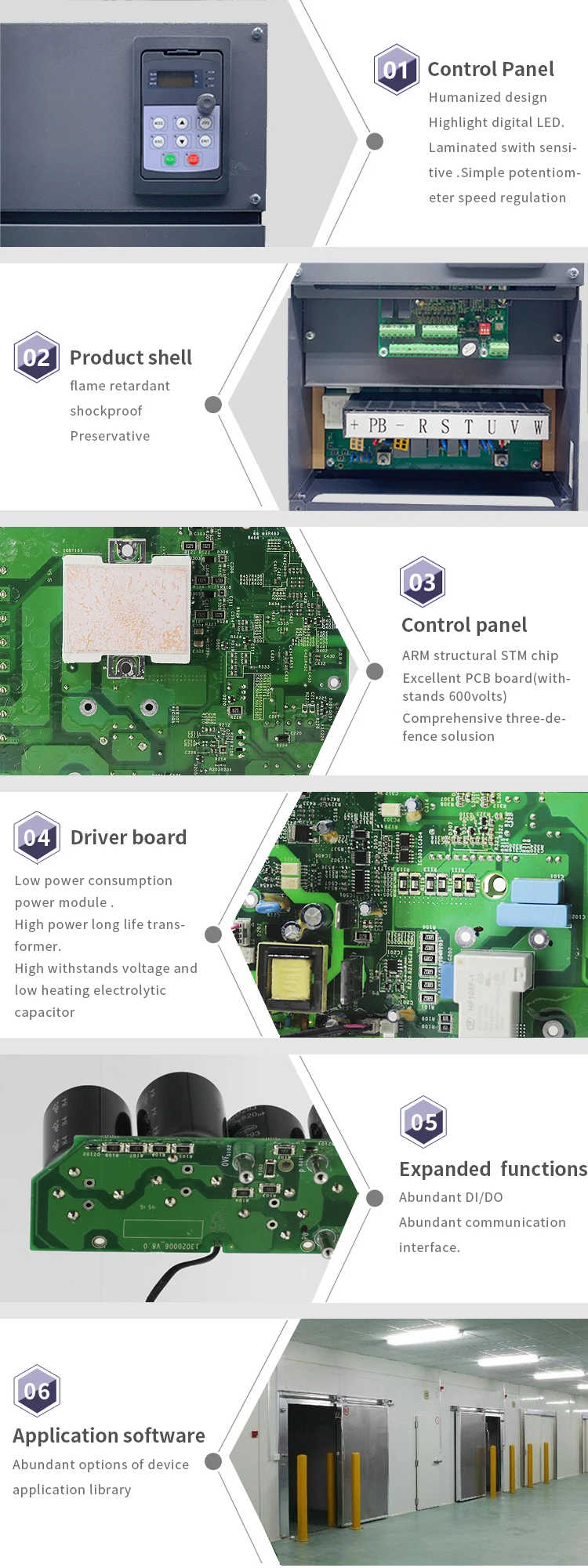

Products Features
* Compact design、Built-in standard PLC * PLC configuration:
Noumenon：DI/DO=4/2 AI/AO=2/1 Extension：DI/DO=7/7 CAN=1CH * Support multi-language programming :Ladder diagram （LD）、C、Python * Support high-speed count input, high-speed pulse output * Abundant options of application functions for standard equipment
Application Scenario
Model and amp; Selection
|
RJS
|
200
|
–
|
11RP
|
–
|
T4
|
|
Brand
|
Type
|
Adapted motor
|
Supply power
|
||
|
Rijing
|
Smart
series
|
7R5G:7.5kw（10HP）
15RG:15kw（20HP） 22RG:22kw（30HP） 250RG:250kw（330HP） |
T4 ：Triple 380VAC
T2 ：Triple 220VAC
|

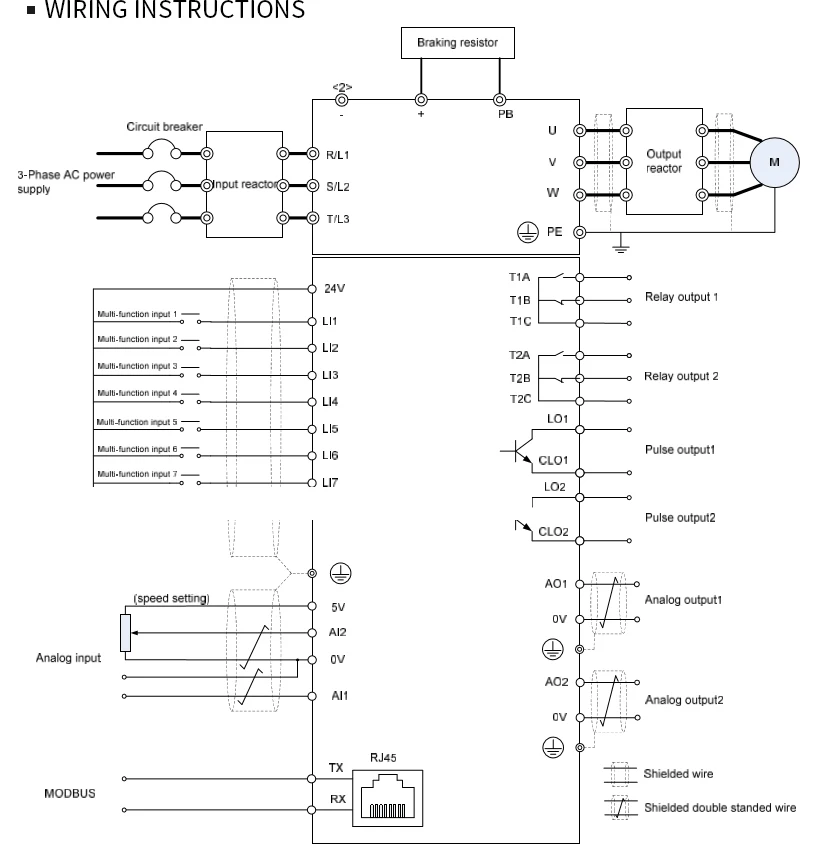

Installation and amp; Method
Please see the first form Please see the second form
|
Model
|
Outline Dimensions（mm）
|
Installation Dimensions（mm）
|
||||||||
|
|
H
|
W
|
D
|
H1
|
W1
|
Aperture
|
||||
|
RJS200-0R4G-S2
|
145
|
107
|
144
|
135
|
95
|
Φ5
|
||||
|
RJS200-0R75G-S2
|
||||||||||
|
RJS200-0R75G/1R5P -T4
|
||||||||||
|
RJS200-1R5G/2R2P -T4
|
||||||||||
|
RJS200-2R2G/3RP -T4
|
||||||||||
|
RJS200-1R5G-S2
|
200
|
138
|
134
|
188
|
124
|
Φ5
|
||||
|
RJS200-2R2G-S2
|
||||||||||
|
RJS200-4RG/5R5P -T4
|
||||||||||
|
RJS200-5R5G/7R5P -T4
|
||||||||||
|
RJS200-7R5G/11RP -T4
|
232
|
153
|
164
|
220
|
139
|
Φ5
|
||||
|
RJS200-11RG/15RP -T4
|
||||||||||
|
Model
|
Outline Dimensions（mm）
|
Installation Dimensions（mm）
|
||||||||
|
|
H
|
W
|
D
|
H1
|
W1
|
Aperture
|
||||
|
RJS200-15RG/18R5P -T4
|
399
|
249
|
188
|
376
|
150
|
Φ9
|
||||
|
RJS200-18R5G/22RP -T4
|
||||||||||
|
RJS200-22RG/30RP -T4
|
449
|
276
|
212
|
426
|
170
|
Φ9
|
||||
|
RJS200-30RG/37RP -T4
|
||||||||||
|
RJS200-37RG/45RP -T4
|
550
|
290
|
260
|
530
|
180
|
Φ11
|
||||
|
RJS200-45RG/55RP -T4
|
580
|
318
|
295
|
557
|
180
|
Φ11
|
||||
|
RJS200-55RG/75RP -T4
|
||||||||||
|
RJS200-75RG/90RP -T4
|
700
|
378
|
295
|
676
|
180
|
Φ11
|
||||
|
RJS200-90RG/110RP -T4
|
||||||||||
|
RJS200-110RG/132RP -T4
|
||||||||||
|
RJS200-132RG/160RP -T4 #1
|
800
|
430
|
390
|
753
|
220
|
Φ19
|
||||
|
RJS200-160RG/185RP -T4 #1
|
||||||||||
|
RJS200-185RG/200RP-T4 #1
|
1060
|
580
|
390
|
1013
|
350
|
Φ19
|
||||
|
RJS200-200RG/220RP -T4 #1
|
||||||||||
|
RJS200-220RG -T4 #1
|
||||||||||
|
RJS200-250RG/280RP -T4#2
|
1200
|
720
|
406
|
1152
|
350
|
Φ19
|
||||
|
RJS200-280RG/315RP -T4#2
|
||||||||||
|
RJS200-315RG/355RP -T4#2
|
||||||||||
|
RJS200-350RG -T4
|
1900
|
1000
|
500
|
–
|
–
|
–
|
||||
|
RJS200-400RG -T4
|
||||||||||
|
RJS200-500RG -T4
|
||||||||||
|
RJS200-560RG -T4
|
2200
|
1045
|
800
|
943
|
665
|
Φ16
|
||||
|
RJS200-630RG -T4
|
||||||||||
Product Paramenters
|
RJS200-Product Series
|
||||
|
Item
|
Instruction
|
|||
|
Power supply input
|
Rated voltage
|
S2(Single phase 220V): Single phase AC, (200-240)V
|
||
|
T4 (Three phase 400V ) : Three phase AC (380-480) V
|
||||
|
Rated frequency
|
50/60Hz ± 5%
|
|||
|
Power output
|
Overload capability
|
Overload(G):150% rated output current 60s and 200% rated output current 2s.
|
||
|
|
|
Light load(P):120% rated output current 60s
|
||
|
Control performance
|
Control mode
|
Constant torque V/f, Quadratic load V/f, No PG vector control, Energy saving mode
|
||
|
Frequency set mode
|
Outside terminals (including logic multi-step, analog input, UP/DOWN given), keypad panel, series communication.
|
|||
|
Command given mode
|
Outside terminals ( i.e. Logic input), keypad panel, series communication.
|
|||
|
Low frequency torque
|
1. No PG V / f control: 150% rated torque / 3Hz
2. No PG vector control: 150% rated torque /0.5H
|
|||
|
Programming method
|
Compatible with traditional PLC programming platform / high-level language (C / Python) / other programming platform
|
|||
|
Control power supply
|
1. 5V:Maximum current 10mA, which is used on bench potentiometer.
2. 24V: Maximum current 100mA, which is used for logic entranc
|
|||
|
Communication interface
|
Hardware interface protocol
|
RS 232 1ch /RS 485 1ch
|
||
|
Software communication protocol
|
Modbus
|
|||
|
Logic input
|
Quantity
|
Ontology:11kW:6ways,LI1~LI4(Both inverter and PLC control can be used)
|
||
|
|
|
AI1,AI2Configurable as a logic input port
|
||
|
|
|
15kW:8ways,LI1~LI8
|
||
|
|
|
Extension: based on expansion board features
|
||
|
|
Type
|
Positive logic (Source) or Negative logic (Sink)
|
||
|
|
Input voltage
|
0-24VDC
|
||
|
Analog input
|
Maximum input range
|
AI1:0-5VDC,or 0-10VDC,or 0/4-20mADC
AI2:0-10VDC,or PTC probe input or PT
|
||
|
|
Function selection
|
Can only be used for inverter control (frequency signal setting, feedback signal setting, temperature monitoring, etc.) / PLC
switch output
|
||
|
Panel potentiometer input
|
Precision:10bit/inverter control (frequency signal setting)/PLC analog quantity output
|
|||
|
Analog output
|
Maximum output range
|
0-10VDC
|
||
|
0/4-20mADC
|
||||
|
Function selection
|
Output frequency, output current, speed given, series output data and many other functions/PLC analog quantity output
|
|||
|
Structure
|
Protection level
|
IP20
|
||
