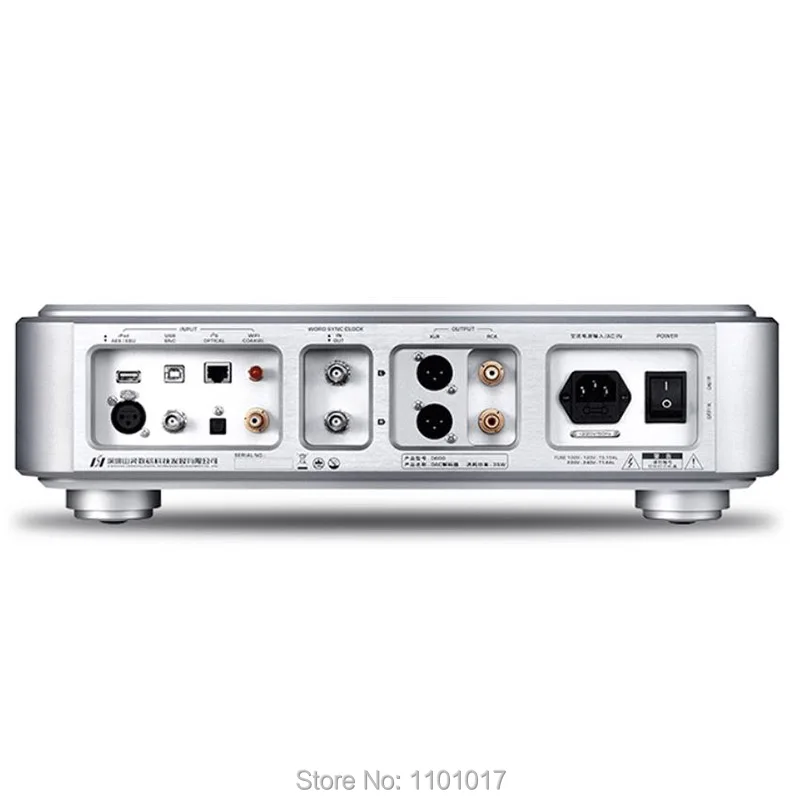

• Input: Bluetooth/  USB / optical / Coaxial /iPod /AES/EBU /BNC /I2S
• Output:      RCA 2.3Vrms;  XLR 4.6Vrms
• Sound separation: RCA tube and gt;105dB   ;   XLR and gt;130dB
• Harmonic distortion: RCA tube 1KHz and lt; 0.1%   ;    XLR and lt; 0.0002%
• USB transmission: desynchronization
• USB compatibility: windows XP / 7/8 / 8,1 / 10, Mac OSX 10.6 or later, Linux
• Bit depth: USB (16bit / 24bit / 32bit / 1bit )
•                 optical / Coaxial (16bit / 24bit/32bit)
• Sampling Frequency:
•          USB DSD: 2.8224 / 5.6448MHz
•          USB PCM: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 / 352.8
• Optical / Coaxial: 32~192 kHz
• XLR output: 4.6Vrms
• RCA output: 2.3 Vrms
• Power consumption: 70W
• Voltage: 110-120v or 230-240V   50/60hz
• Net weight: 20 kg
• Size:480x400x142mm
• Accessories: power line, remote control, USB cable, user instruction

​

Features:

• Full 32bit design, 32bit accuracy through USB input, sampling rate up to 384kHz;
• Support DSD input, support DSD64 and DSD128;
• Adopt two 32bit current advanced DAC chips ESS9018S;
• Newly developed high-stability heavy-duty chassis to eliminate most external vibration interference;
• Exquisite layout and structure, to prevent leakage magnetic interference; analog, digital dual R-type transformer power supply;
• Ultra-high standard audio design, a large number of audio-customized devices;
• Ultra-low JITTER design, built-in PLL, with the clock synchronization function of the configuration, and clock output function, can use the internal 1PPM high-precision TCXO and CD turntable to form a JITTER-free audio system without an external clock;
• The clock adopts two-stage voltage regulation to ensure extremely low phase noise. The ultra-high standard power supply design, up to 7 sets of LDOs supply power to the ESS9018S, and exert its excellent performance;
• Bluetooth input, support AIFI-X format of HIFI level;
• Asynchronous up-converting function, bringing users a high-density sound experience;
• Two digital filtering modes are selected to accommodate playback of different music types;
• An unbalanced end output buffer circuit composed of a military-grade electronic tube 6H30;
• Full visual, multi-functional OLED display.
