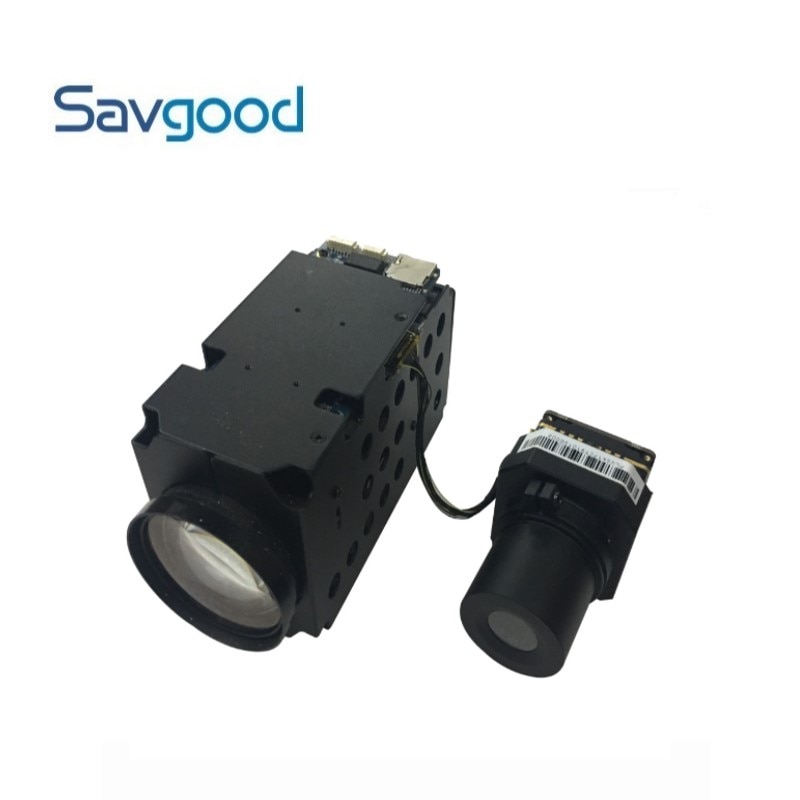

Savgood SG-ZCM2035N-T25T Thermal + Optical Bi-spectrum Network Camera Module

Savgood SG-ZCM2035N-T25T Thermal + Optical Bi-spectrum Network Camera Module

Product Description





Model



SG-ZCM2035N-T25T

Thermal + Optical Bi-spectrum Network Camera Module.

 – 640x512  Thermal + 2MP 35x  Zoom Starlight Network Camera  Module

Features



and gt; 1 Channel Thermal and Visible Video complex stream.

and gt; One single Main Control Chip, more stable than double IP version products.

and gt; Smart tracking on both Thermal camera  (Night) and Visible camera  (Day)

and gt; Support various OSD information overlay.

and gt; Accurate focus, high speed, great image effects, precise color reproduction, excellent night vision with low light effects.

Visible Camera

and gt; 1/2” Sony Exmor CMOS Sensor.

and gt; Powerful 35x  optical zoom  (6~210mm  Lens).

and gt; Max. 2Mp(1920×1080) Resolution

and gt; Support various  IVS functions

and gt; Support Electronic Defog

Thermal  Camera

and gt; 640x512  Resolution, high sensitivity sensor

and gt; 17um  Pixel pitch.

and gt; 25mm Fixed Thermal Lens

and gt; Modular  design, with the same block size for CCTV Monitoring version

and gt;  SG-ZCM2035N-T25T can support Temperature measurement function

Specification

 SG-ZCM2035N-T25T

Model

SG-ZCM2035N-T25

SG-ZCM2035N-T25T

Thermal

Sensor

Image Sensor

Uncooled VOx Microbolometer



Resolution

640 x 512



Pixel Size

17μm



Spectral Range

8~14μm

Lens

Focal Length

25mm



F Value

F1.0



Focus

Athermalized, Focus-free



Angle of View

25°x20°

Video Network

Compression

H.265/H.264/H.264H



Network Protocol

Onvif,  GB28181,  HTTP,  RTSP,  RTP,  TCP,  UDP

Resolution

50Hz:  25fps  (640×480)

IVS

Tripwire, Cross Fence Detection, Intrusion

Temperature measurement

N/A

Support

Fire Detection

Support

Digital  Zoom

8x

Visible

Sensor

Image Sensor

1/2″ Sony Exmor CMOS



Effective Pixels

Approx. 2.13 Megapixel



Max. Resolution

1945(H)x1225(V)

Lens

Focal Length

6mm~210mm, 35x Optical Zoom



Aperture

F1.5~F4.8



Close Focus Distance

0.1m~1.5m  (Wide~Tale)



Angle of View

61°~2.0°

Video Network

Compression

H.265/H.264/H.264H/MJPEG



Storage Capabilities

TF card, up to 256G



Network Protocol

Onvif,  GB28181,  HTTP,  RTSP,  RTP,  TCP,  UDP



Smart Alarm

Motion Detection, Cover Alarm, Storage Full Alarm

Resolution

50Hz:  25fps@2Mp(1920×1080)

60Hz:  30fps@2Mp(1920×1080)

IVS

Tripwire, Cross Fence Detection, Intrusion, Abandoned Object, Fast-Moving, Parking Detection, Crowd Gathering Estimation, Missing Object, Loitering Detection.

S/N Ratio

≥55dB  (AGC Off, Weight ON)

Minimum Illumination

Color: 0.001Lux/F1.5; B/W: 0.0001Lux/F1.5

EIS

Electronic Image Stabilization (ON/OFF)

Exposure Compensation

ON/OFF

Strong Light Suppression

ON/OFF

Day/Night

Auto/Manual

Electronic  Defog

ON/OFF

Zoom Speed

Approx.  4.5s(Optical  Wide-Tele)

White Balance

Auto/Manual/ATW/Indoor/Outdoor/ Outdoor Auto/ Sodium lamp  Auto / Sodium lamp

Electronic Shutter  Speed

Auto Shutter  (1/3s~1/30000s)Manual Shutter  (1/3s~1/30000s)

Exposure

Auto/Manual

2D Noise Reduction

Support

3D Noise Reduction

Support

Flip

Support

External Control

TLL

Communication Interface

Compatible with the SONY VISCA Protocol

Focus Mode

Auto/Manual/Semi-automatic

Digital Zoom

4x

General

Operating Conditions

(-30°C~+60°C/20%  to 80%RH)

Storage Conditions

(-40°C~+70°C/20% to 95%RH)

Power Supply

DC 12V±15%  (Recommend: 12V)

Power Consumption

Static power: 5W, Sports power: 8W

Dimensions(L*W*H)

Thermal:  75mm*45mm*45mm, Visible: 126mm*54mm*68mm

Weight

Thermal: 170g, Visible: 410g

Dimensions(mm)





Packaging and amp; Shipping

Packaging:



Shipping:

The common adopted Shipping methods including:  DHL, FedEx, TNT, UPS, EMS,  buik order  By Air,  By Sea

We can calculate the cost based on your quantity and choose a most quick and economic way for you.
We will send you tracking number before shipping.

Company Information



Savgood Technology  – Zoom Camera Modules manufacturer.

Most of Long Range Zoom solutions are using Normal box camera and Motorized Lens. Which is very Expensive, Not Stable and Low Efficiency Auto Focus.

To solve the current issues of Long Range Zoom cameras solution, based on SONY’s popular, high image quality and ultra starlight Exmor/Exmor R CMOS Sensor, we are focus on  Ultra LONG RANGE ZOOM  camera modules, and have successfully designed and amp; developed many kinds of Zoom Camera Modules, for example, 2Mp 86x Zoom (10~860mm), 2Mp 90x Zoom (6~540mm), 2Mp/4K/8Mp 50x Zoom (6~300mm).

They can support our own fast and amp; accurate excellent Auto Focus algorithm, Defog and IVS (Intelligent Video Surveillance) functions.
