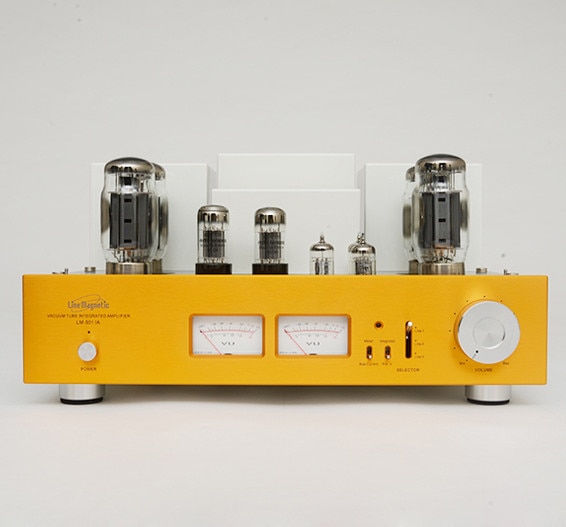

–One hundred watts per channel, Class AB Integrated Stereo Amplifier with KT120*4
output power tubes, 12AX7, 12AU7 and 6SN7 input tubes.
-4 pairs of inputs and speaker terminals for 4, 8, 16 ohms speakers are located on the back panel.
-User bias control has been used for bias adjustment.
-Two separate meters for the Left and Right Channel have been build for monitoring.
-Specially designed EI transformers for power supply and two EI output transformers with wide bandwidth are applied.
-Japanese ALPS volume potentiometer, Multicap coupling Capacitors etc Audio grade of components have been applied.
-Standard with remote control.
-Hand made construction with the finest point-to-point wiring.
-SoftStart and time-delay circuit. (30 seconds).
output power tubes, 12AX7, 12AU7 and 6SN7 input tubes.
-4 pairs of inputs and speaker terminals for 4, 8, 16 ohms speakers are located on the back panel.
-User bias control has been used for bias adjustment.
-Two separate meters for the Left and Right Channel have been build for monitoring.
-Specially designed EI transformers for power supply and two EI output transformers with wide bandwidth are applied.
-Japanese ALPS volume potentiometer, Multicap coupling Capacitors etc Audio grade of components have been applied.
-Standard with remote control.
-Hand made construction with the finest point-to-point wiring.
-SoftStart and time-delay circuit. (30 seconds).
|
Specification parameter
|
||||||||
|
Output power
|
100W*2
|
|||||||
|
THD
|
1%(1KHz)
|
|||||||
|
Frequency response
|
10Hz~50KHz(-1.5dB)
|
|||||||
|
S/N Ratio
|
87dB(A weighted)
|
|||||||
|
Input Impedance
|
100kΩ
|
|||||||
|
Output impedance
|
4/8/16 ohm
|
|||||||
|
Input Sensitivity
|
200mV(Integrated)(Pre-In)
|
|||||||
|
Tube Complement
|
12AX7*2 12AU7*1 KT120 *4 6SN7EH*2
|
|||||||
|
Dimension (W*D*H)
|
430mm*355mm*217mm
|
|||||||
|
Net weight
|
32.5Kg
|
|||||||
|
Power Consumption
|
480W
|
|||||||
