Professional Military Long Range Small Size Thermal Imaging Binoculars

Professional Military Long Range Small Size Thermal Imaging Binoculars

Products Description

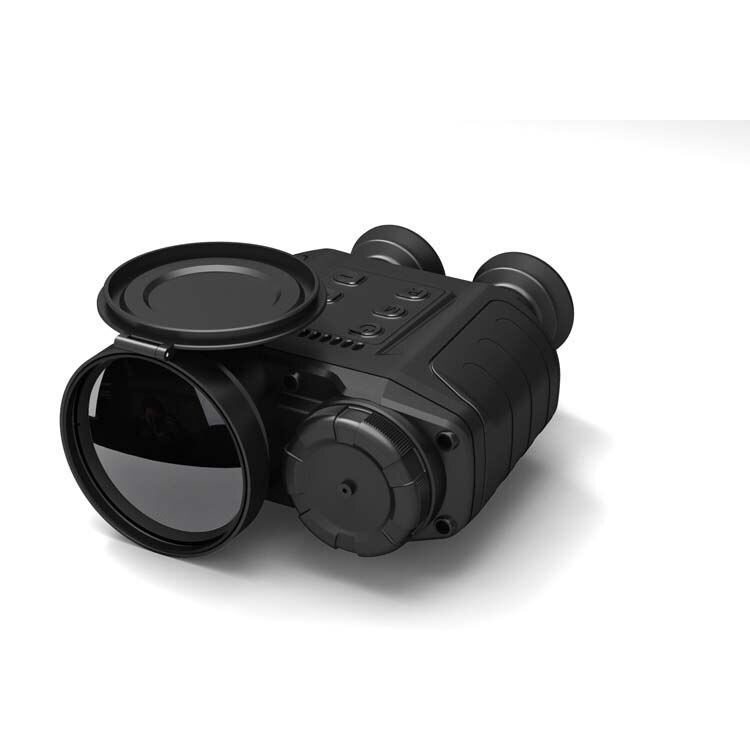

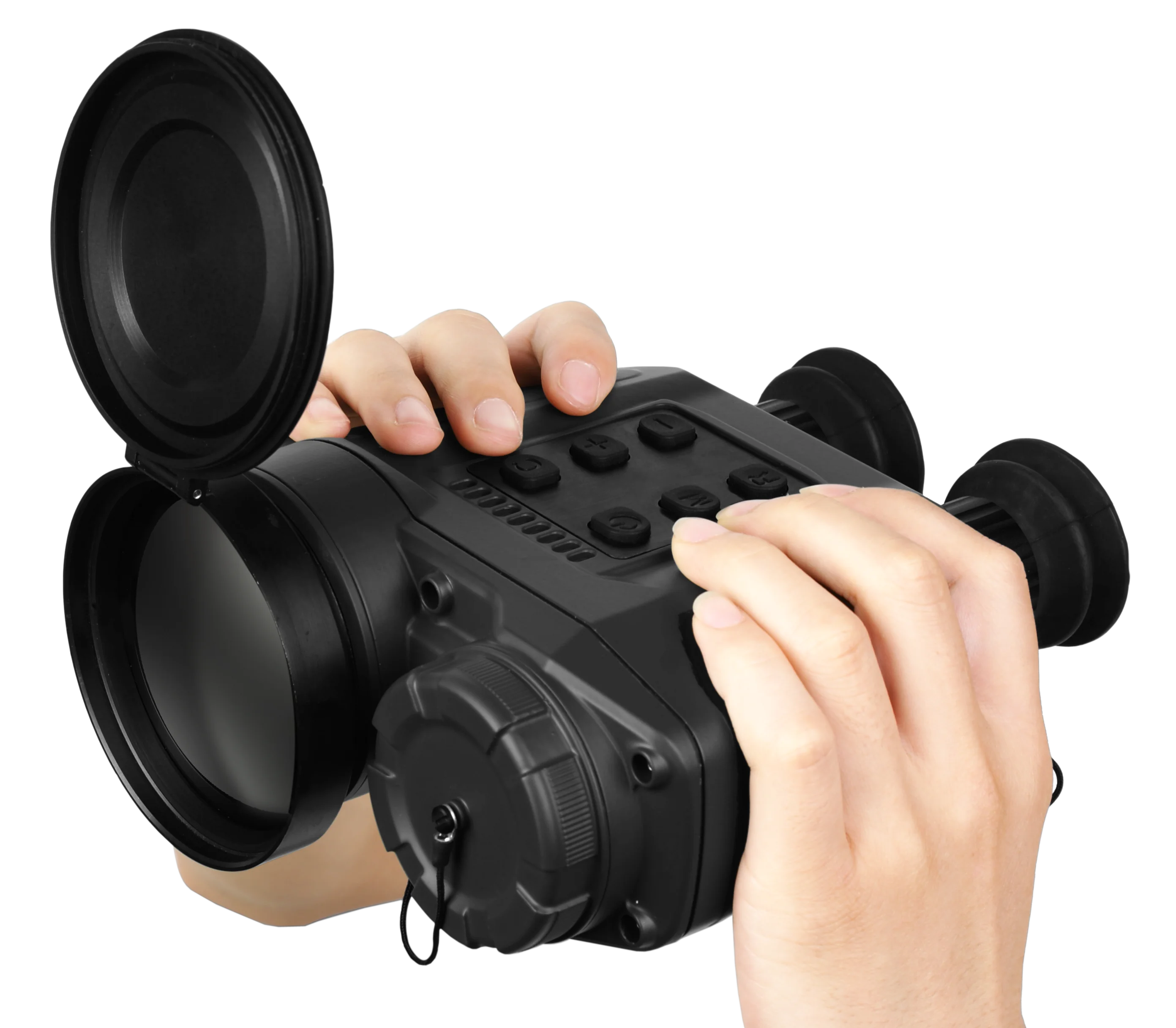

Professional Military Long Range Small Size Thermal Imaging Binoculars

Introduction
IR516 Series is your ideal choice for day-and-night observation and surveillance. With all these features, it’s an essential tool in wildlife observation, hunting, public safety, police and security operations.

Application
Counter-terrorism / Law Enforcement / Outdoor /
Patrol / Search and amp; Rescue / Personal Security

Main Features of Professional Military Long Range Small Size Thermal Imaging Binoculars

•Two detectors for option, normal version 400*300 and high version 800*600
• With the integrating function of taking photo, video and reviewing, which can be output by USB
• Power control, contrast and brightness adjustment, image polarity conversion and 2x digital zoom
• Binocular display, can be contacted with external display device


Product Paramenters

Model
IR516A
IR516B
Detector
Detector Resolution
400×300,17μm
800×600,17μm
Spectral Range
8μm~14μm
8μm~14μm
Lens
Focus
70mm
FOV
5.6°×4.2°(±5%)
11.1°×8.31°(±5%)
Image Enhancement
Auto image filtering and sharp
Brightness/Contrast
Auto/Manual
Polarity
White-hot/black-hot,palette
Digital Zoom
Video Storage
Built-in 16GB SD card
View Finder
OLED 1280×1024, visual acuity
Power
Power Input
12V power adapter or built-in Li-ion battery
Working Time
≥4h(without changing battery)
Interface
Electrical Interface
power、video PAL(NTSC can customizable)、communication RS232
Mechanical Interface
1/4 inch standard interface
Environment Parameters
Working Temperature
-40°C~60°C(Except for display equipment)
Encapsulation
IP67
Electromagnetic Compatibility
GJB151A-97
Physical Characteristics
Weight
≤1.5kg(including battery)
Size
≤210mm×170mm×100mm
Package
Standard
AL18650x4(rechargeable)battery,Charger,Power adapter,
External connection cable,Safety box,User Manual
Optional
Tripod, Carrying bag
Detection Range
1.8m×0.5m Human
and gt;1.6km
2.3m×2.3m Vehicle
and gt;3.1km
Recognition Range
1.8m×0.5m Human
and gt;0.85km
2.3m×2.3m Vehicle
and gt;1.1km

Recommend Products

Company Profile

Why Choose Us

Professional

We are the NO.1 biggest manufacturer of infrared thermal imaging products in China , with 20 Years‘ experience in infrared thermal imaging industry.

Market Share

NO. 2 market share in the global commercial infrared thermal imaging products markets according to Yole report.

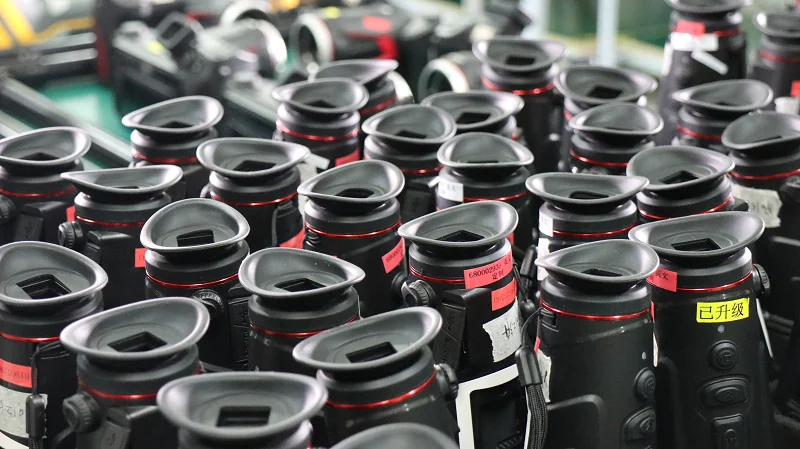

Reliable

Guide’s self-developed infrared cores and complete chain of infrared thermal products realize mass production capacity in short leadtime.

Best Servie

We are committed to providing the customers with a quick, efficient, professional and high-quality after-sales service. Most of our products provide the 1+1 years warranty policy.

Verified Supplier

Guide Sensmart is officially verified by alibaba.com

Trade Assurance

Alibaba Trade Assurance payment terms makes the business deal safer faster and more reliable.

Transport

FAQ

1. Are you the manufacturer or trading company?
A: We, Guide Sensmart, design, develop, manufacture, and distribute the infrared-related products around the world.We are NO.1 manufacturer of commercial thermal imaging devices in China with an annual production capacity of over 500,000 units.

2. Do you have any certificates?
A: Our company passed ISO 9001 quality system.
All our products passed CE, RoHS, FCC verification and more.
Furthermore, we have over 216 patents so far.

3. What is the lead time of your products?
A: It depends on the order quantity and the season you place the order. Usually we can ship within 3-5 days for small quantity, for large quantity please contact us.

4. What is your payment term?
A: By Alibaba Trade Assurance or T/T in advance.

5. What is the shipping method?
A: Usually shipped by express(DHL, FEDEX UPS and etc).

6. How can I place order?
A: You can contact us by send inquiry about your order details, or place order online.

7. How long is the warranty?
A: Most of our products provide the 1+1 years warranty policy.

8. Do you accept OEM or ODM?
A: Yes, it depends on the quantity.

For other questions we will reply you as soon as possible while receiving your inquiry.
