Order Guide

DMB-9030 HD Professional IRD(with 4:2:0/4:2:2 8-bit/10-bit decoding)

DMB-9030 HD Professional IRD(only with 4:2:0 8-bit decoding)

Overview

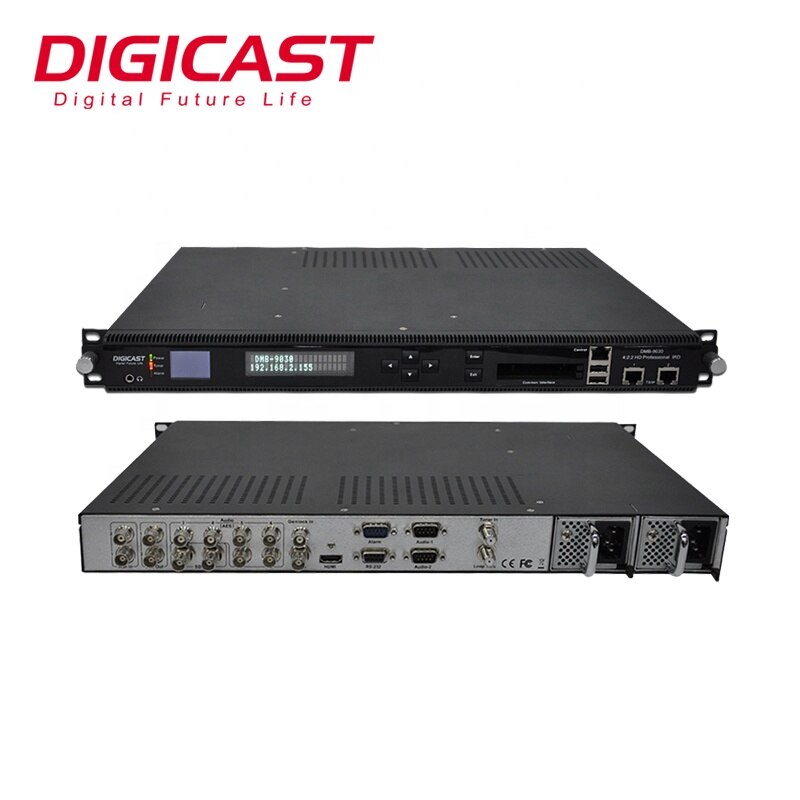

DMB-9030 4:2:2 HD Professional IRD is the key device of contribution system that provides 4:2:0 8-bit and 4:2:2 10-bit decoding, fully compliant with MPEG-2([email protected] and amp;[email protected]), MPEG-4 AVC/H.264 standard. CI decryption supports varieties of Condition Access System. The Professional 4:2:2 IRD enables abundant inputs, receives and decrypts multiplex DTV signals from Satellite, Cable and Terrestrial system. The DMB-9030 offers redundancy among Tuner, ASI and TSoIP input for ensuring stability of contribution system. DMB-9030 embedded BISS1/E decryption to protect the programs content from satellite. The DMB-9030 is equipped with dual power supply for backup to ensure the stability and reliability of operating. DMB-9030 offers advanced TS processing and latest IP processing technology, applied to DVB, ATSC and IPTV head-end system, Distribution and Contribution applications.

MainFeature

• Compliant with HD/SD MPEG-2([email protected] and amp;[email protected]), MPEG-4 AVC/H.264 standard
• Decoding mode: 4:2:0 8bit and 4:2:2 10bit
• Variety of Tuner input options including DVB-S/S2,DVB-C,DVB-T/T2,ATSC and DTMB
• Abundant inputs: DS3/E3 in(optional), DVB-ASI in and TSoIP in
• Abundant outputs: ASI, HD/SD-SDI, TS/IP, AES/EBU, HD Interface and CVBS out
• Supporting monitoring mode: Video display by front 1.5″ TFT LCD
• External signal BB/Tri-sync input for SDI synchronization
• Up to 8*PID embedded audio in HD/SD-SDI output or pass-through
• MPEG over IP in/output by dual full-duplex GigE interface, supports MPTS and SPTS, UDP/RTP protocol, unicast/multicast
• Up to 8*AES/EBU of digital audio output
• DVB Common Interface( 2 Slots), embedded BISS-1 and BISS-E
• Re-multiplexing and PID filtering capability
• Enables monitoring the quality of Tuner input signal
• PMT Auto-MDIX and Auto upgrade
• RSSI(received Eb/No and amp; BER monitoring)
• VBI, EBU/DVB and Closed Caption pass-through and insertion
• Easily remote upgrade by Ethernet interface and USB interface
• SNMP and WEB-based management
• Sensitive Alarm interface
• Dual power supply for smooth hot-plug backup, improves stability

Applications

Ensuring decoding capability of premiere quality, DMB-9030 Professional 4:2:2 IRD is designed to every type of satellite and telecom network with 4:2:2 10-bit. And it is an integrated receiver decoder, positioning in contribution application.

Sync. monitoring for high-quality audio and video

Receiving and decoding content of DVB-C, DMB-9030 outputs audio and video signals to HDTV via HD Interface connector after descrambling and decoding, which can be applied to program monitoring.

Distribution for head-end of Cable TV

Receiving and decoding top-quality audio and video content of DVB-S or DVB-S2, DMB-9030 outputs ASI signal to re-multiplexer of DVB signal, transport stream multiplexed and edited flows into HFC network through DVB-C modulator. In this way, it can realize the contribution of highly qualified audio and video programs.

Distribution for satellite live TV

Receiving and decoding content of DVB-S or DVB-S2, DMB-9030 enables output of HD-SDI signal in 4:2:2 format. It outputs ASI signal to DVB-S/S2 modulator by DIGICAST high-end encoder which supports 4:2:2 10-bit video encoding of high quality and low latency. Afterwards, DMB-9030 brings out live broadcasting of qualified audio and video programs by digital satellite forwarding.

Contribution for IPTV

Receiving and decoding content of DVB-S or DVB-S2, DMB-9030 outputs capsulated TSoIP for processing. It can be configured to filter and transfer partial programs of transport stream while processing the content, and output TSoIP. The DMB-9030 can de-capsulate IP over MPEG(MPE) and output it over an IP network.

Specifications

Transport Stream Input Interfaces
DVB-C Input
Frequency range: 48~862MHz
Symbol rate: 1~7MBaud
Constellation: 16, 32, 64, 128, 256QAM
Bandwidth: 6/7/8MHz
RF input level: 45~75dBuV
Reflection loss: 7dB
Connector: 1*F-type input and 1*F-type loop out, 75ohm
DVB-S/S2 Input
Frequency range: 950~2150MHz
Symbol rate: 2~45MBaud
Roll off: DVB-S QPSK: 0.35
                         DVB-S2 8PSK: 0.2, 0.3, 0.35
FEC: DVB-S QPSK: 1/2, 2/3, 3/4, 5/6, 7/8
                DVB-S2 QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
                DVB-S2 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10
RF input level:-25~-65dBm
LNB power: 13VDC, 18VDC or off, 22KHz or off
DiSEqC: DiSEqC1.0
Connector: 1*F-type input and1*F-type loop out, 75ohm
DVB-T/T2 Input
Frequency range: 104~862MHz(VHF/UHF)
Bandwidth: 6/7/8MHz
FFT: DVB-T: 2/8K
              DVB-T2: 1/2/4/8/16/32K
Guard intervals: DVB-T: 1/4, 1/8, 1/16, 1/32
                                                      DVB-T2: 1/4, 5/32, 1/8, 5/64, 1/16, 1/32, 1/64, 1/128
FEC: DVB-T: 1/2, 2/3, 3/4, 5/6, 7/8
                DVB-T2: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6
Constellation: DVB-T: QPSK, 16QAM, 64QAM
                                                DVB-T2: QPSK, 16QAM, 64QAM, 256QAM
RF input level:-70~-20dBm
Reflection Loss: 7dB
Connector: 1*F-type input and1*F-type loop out, 75ohm
DTMB Input
Frequency range:46.5~866MHz
Symbol rate:7.56MHz
Constellation:4QAM-NR, 4QAM, 16QAM, 32QAM, 64QAM
Guard intervals: PN420, PN595, PN945
Bandwidth: 6/7/8MHz
Roll off: 0.05
Signal interleave: 240, 720
FEC: 0.4, 0.6, 0.8
RF input level: -87~-29dBm
Connector: 1*F-type input and1*F-type loop out, 75ohm
ATSC Input
Frequency range: 54 ~ 864MHz
Symbol rate: 10.762MHz
Constellation: 8VSB
Bandwidth: 6MHz
Roll off: 0.115
RF input level: -75 ~ 7dBm
Connector: 1*F-type input and1*F-type loop out, 75ohm

ASI Input
Compliant with DVB-ASI EN50083.9standard
Packet Length: Auto-detect 188/204 byte packets
TS bit-rate: up to 200Mbps
Connector: 2*BNC, 75ohm impendence
DS3/E3 Input (optional)
Standard: compatible with ITU-T G.703
Frame: compatible with ITU-T G.752 and ITU-T G.804
Bit-rate: DS3:44.736Mb/S, E3:34.368Mb/S
Connector: 1*F-type input and1*F-type loop out, 75ohm
TS over IP Input/Output
Protocol: UDP/RTP, Unicast or Multicast optional, supports IGMP v2,ARP
Bit-rate: up to 800Mbps
Connector: RJ45*2, GigE(1000M) interface
TS Processing
TS input management: de-multiplexing and amp; re-multiplexing
TS output: 2 groups of independent ASI outputs
Service and PID management: programs, PID filtering   and amp; re-mapping
PSI/SI processing: PSI/SI creation and amp; edition
                                                                 LCN edition and amp; insertion
De-scrambler: DVB common decrypt algorithm
Common Interface: dual PCMCIA(2 slots)
BISS mode: BISS 1 and amp; BISS E
Transport Stream Output Interfaces
ASI Output
Connector: ASI out, BNC interface
Output: 2+2 Channels independent ASI outputs
TS format: DVB-ASI, compliant with EN50083-9
TS bit-rate: up to 200Mb/S
Video Decoding
Video decoding: MPEG-2( for SD,[email protected] for HD)
                                                          MP: 4:2:0 8-bit
                                                           HP: 4:2:2 10-bit
                                                          MPEG-4/H.264 AVC ( for SD, for HD)
                                                          High-422(Hi442P) 4:2:2 8/10-bit
                                                          High-10(Hi10P) 4:2:0 10-bit
                                                          High (HP) 4:2:0 8-bit
                                                          Main (MP) 4:2:0 8-bit
                                                          Constrained Baseline (CBP) 4:2:0 8-bit
                                                          High 10 Intra Profile (AVC-I 50) 4:2:0 10-bit
                                                          High 4:2:2 Intra Profile (AVC-I 100) 4:2:2 8/10-bit
Audio Decoding
Audio decoding: MPEG-1 Layer II (2 pairs of stereo)
                                                          AC3 (5.1 down-mix to 2.0, AC3 pass-through)
                                                          AC3+(5.1 down-mix to 2.0, AC3+ pass-through)
                                                          Dolby-E(5.1 down-mix to 2.0, Dolby-E pass-through)
                                                          MPEG-2 AAC(5.1 down-mixing to 2.0)
                                                          MPEG-4 HE-AAC V1/V2(5.1 down-mixing to 2.0)
Video and Audio Outputs
HD Interface output
Connector: HD Interface V1.3, Max. Resolution 1080i
Video resolution: 1080i*30, 1080i*29.97, 1080i*25,720P*60, 720P*59.94, 720P*50, 720P*29.97, 720P*25,480P*60,
                                                            576P*50, 576i*25, 480i*29.97
Audio embedded in HD Interface: 1 Channel stereo
SDI output
Connector: 1+1*BNC interface, 75ohm (SDI interface enables programmed to ASI out)
Video resolution: 1080P*59.94, 1080P*50, 1080i*30, 1080I*29.97, 1080i*25, 720P*60, 720P*59.94, 720P*50,
                                                              720P*29.97, 720P*25, 576i*25, 480i*29.97
Bit-rate: ≤60Mb/S
Standard Definition: SMPTE 259M 270Mb/S(10bit)
High Definition: SMPTE 259M 1.485Gb/S(10bit)
Audio Embedded in SDI: 8*PID of audio embedded or pass-through
Level: 800mVp-p
Genlock
Connector: 1*BNC interface, 75 ohm
Input signal: BB/Tri-sync
Digital Audio Processing
Connector: 2*DB9 type, (2 groups of independent “XLR+AES/EBU”)
                                        6*AES/EBU, BNC interface
Audio output: up to 8*PID of audio decoding or pass-through
Nominal Output Level: 1Vp-p
Output format: SDI(audio embedded in SDI), AES/EBU
Output impedance: AES1-AES2: AES/EBU(Canon type) 110ohm
                                                                       AES3-AES8: AES/EBU(BNC interface), 75ohm impedance
Composite Video Output
CVBS connector: 1*BNC interface, 75ohm impedance.
CVBS standard: NTSC,PAL and SECAM
CVBS resolution: 576i*25, 480i*29.97
Nominal Output Level: 1.0Vp-p
Frequency Response: and lt;±1 dB, at 5.5 MHz for PAL/SECAM, 4.2MHz for NTSC
Chroma-Luma Delay: and lt;±30ns
Field Time Distortion: and lt;2%
Line Time Distortion: and lt;1%
Short Time Distortion: and lt;2%
Differential Gain: and lt;3%
Differential Phase: and lt;2°
Signal to Noise Ratio: and gt;55dB(luminance weighted)
Analog Audio Output
Connector: 2*DB9 type (2*XLR)
                                        2*RCA interface (2*L/R)
Output Impedance: 600 ohm
Output mode: Left, Right, Dual Mono, Stereo
Output: 2 pairs of stereo audio outputs (2 Audio PIDs or 4 channels decoded).
Cross Talk Among Channels: and gt;70dB
Total harmonic distortion: and lt;
Frequency Response: ±0.5dB(20Hz ~ 18KHz)
Level: 0dBm in 600Ω (0dBu), adjustable range ±I0dB
Ancillary Data Processing
Subtitle: DVB,EBU
VBI: Teletext WSS
Closed Caption: EIA 608, EIA708, EIA608-to-70
GENERAL OPTIONS
Redundancy
Redundancy connector: between Tuner, ASI and TS/IP input
Switching Condition: TS Sync Loss
Switching Mode: Main, Spare
Alarm
Connector: DB9 type
Switching Condition: configured by user
Control and Monitoring
Connector: 1*RJ-45,10/100 Base-T for NMS
Remote control: SNMP 2.0, HTTP(Web GUI), Proprietary HDMS
Local control: management via front panel and LCD
Serial Port: 1×RS-232 D-sub female, for debug use only
Video monitoring: 1.5″ TFT LCD monitor
Equipment Upgrade: Embedded FTP loader, Telnet and USB
Physical and Power
Voltage: 90~260VAC, 50/60Hz
Consumption: 25W
Operating temperature: 0~50°C
Dimensions: 430(W)*400(L)*45(H)mm
Weight: 4Kg
