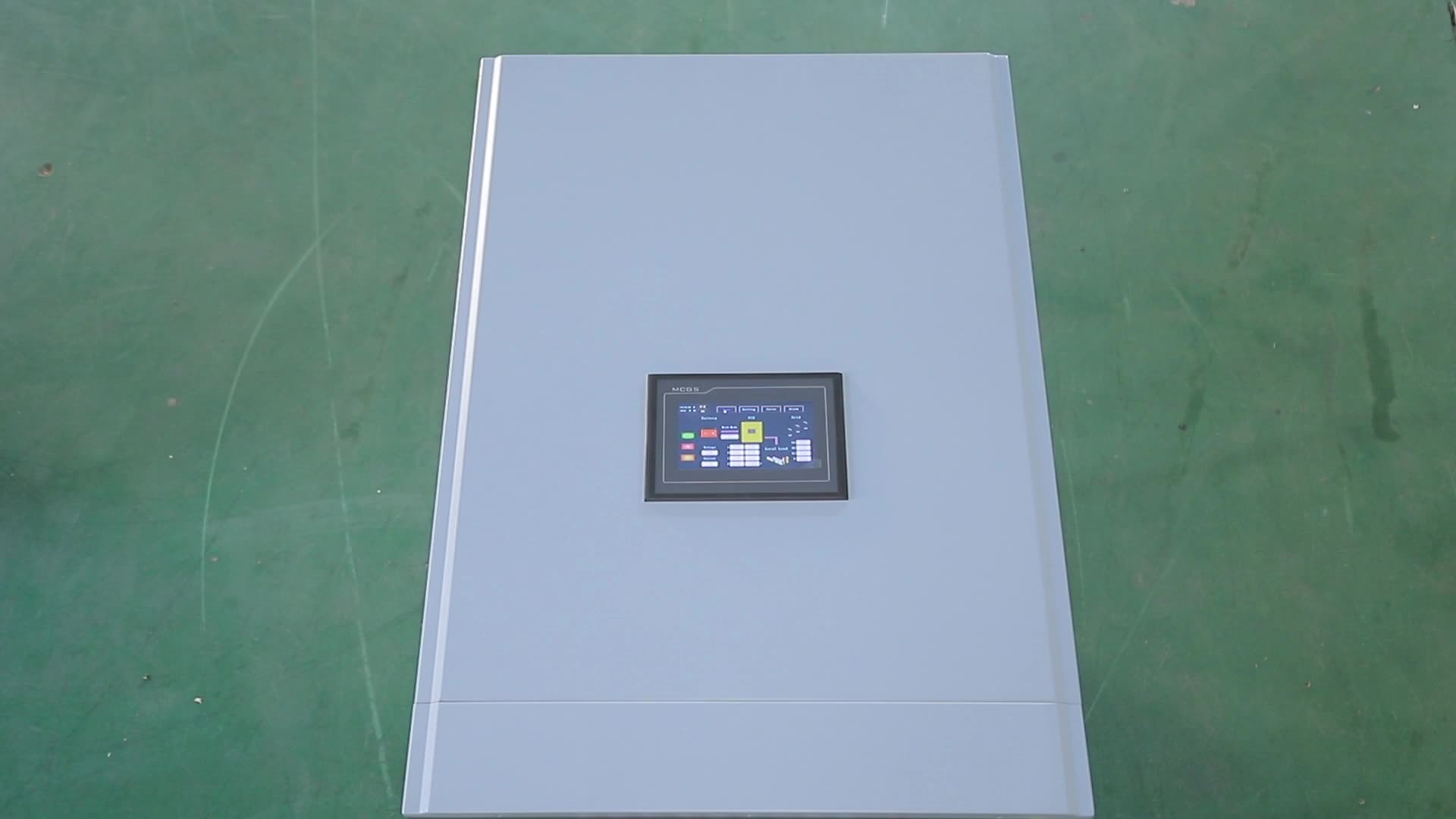

Solar off grid and on grid hybrid system
Wind turbine solar off grid and on grid hybrid power system
AC Side Parameter |
||
Working Type |
|
Remark |
AC wire connect type |
3P4W |
|
Rated Power |
10KW |
|
Over Load |
11KW |
|
On Grid model |
|
|
Rated Grid Voltage |
380V ac |
Valid value |
Grid Voltage Range |
310~450V ac |
|
Rated Grid Frequency |
50Hz |
|
Frequency Range |
49.5 Hz ~50.5 Hz |
|
(THD) |
and lt;4% |
Rated Power |
PF |
≥0.99 |
Rated Power |
Off grid invert model |
||
Rated output voltage |
380V ac |
|
Output voltage stability |
and lt;3% |
Line load |
Rated Output frequency |
50Hz |
|
Voltage Range |
≤10% |
Resistive load0% and lt;= and gt;100% |
Over voltage protect value |
and gt;450Vac |
Valid value |
Under voltage protect value |
and lt;310Vac |
Valid value |
DC Voltage Range |
||
Max DC power |
11KW |
|
DC Voltage Range |
200~700V dc(Optional) |
Vdc |
Voltage Stability |
±1% |
|
Current Stability |
±2% |
|
DC Current Ripple |
and lt;5% |
IPP |
System |
||
Max transfer efficiency |
95% |
Including Transformer |
Noise |
and lt;60dB |
|
Protect Grad |
IP20 |
Indoor |
Working Environment |
–25℃~+45℃ |
|
Cooling way |
Forced Air |
|
Relative Humidity |
0~95% |
Without Condensation |
Altitude |
6000m |
(When more than 2000m, it should be used as less power ) |
Emergency Stop |
– |
Yes, with emergency button |
Display and communication |
||
Display |
Touch Screen |
|
Standard Communication |
Ethernet /RS485 |
MODBUS |
System Schematic Diagram :
