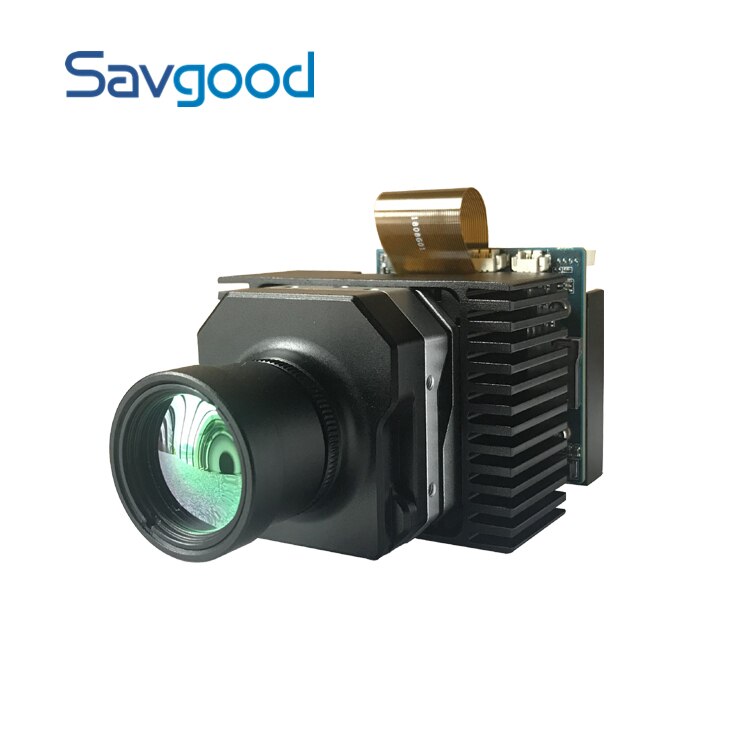

Network 640*480 high sensitivity sensor 25mm fixed lens naval marine type thermal camera module

Network 640*480  high sensitivity sensor 25mm fixed lens naval marine type thermal camera module

Package 1: BOX Camera
Package 2: Thermal Camera

Product Description









Model



SG-TCM06N-25: 384×288 / 640×480 Thermal Network Camera Module with 9mm, 13mm, 15mm, 19mm, 25mm Fixed Lens





Features



and gt; 17um Pixel pitch.

and gt; 9mm, 13mm, 15mm, 19mm, 25mm Thermal Lens

and gt; Support various IVS functions

and gt; , better to do function extension





Specification



SG-TCM06N-25



SG-TCM03N-9,13,15,19,25

SG-TCM06N-9,13,15,19,25

Sensor

Image Sensor

Uncooled Microbolometer FPA(Amorphous silicon)

Resolution

384 x 288

640 x 480

Pixel Size

17μm

μm

Lens

Focal Length

9mm, 13mm, 15mm, 19mm, 25mm

F Value

1.0

Video Network

Compression

H.265/H.264/H.264H

Storage Capabilities

TF card, up to 128G

Network Protocol

Onvif, GB28181, HTTP, RTSP, RTP, TCP, UDP

Smart Alarm

Motion Detection, Cover Alarm,Storage Full Alarm

Resolution

50Hz: 25fps@(384×288)

50Hz: 25fps@(640×480)

IVS Functions

Support kinds of intelligent functions: Tripwire, Cross Fence Detection, Intrusion, Loitering Detection.

Power Supply

DC 12V±15% (Recommend: 12V)

Operating Conditions

(-20°C~+60°C/20% to 80%RH)

Storage Conditions

(-40°C~+65°C/20% to 95%RH)

Dimensions(L*W*H)

Approx. 200g (Included fixed Lens)





Dimension



Packaging and amp; Shipping



Packaging:



Shipping:

The common adopted Shipping methods including: DHL, FedEx, TNT, UPS, EMS,  bulk order By Air, By Sea

We can calculate the cost based on your quantity and choose a most quick and economic way for you.
We will send you tracking number before shipping.



Application



Why choose us



Company Information



Savgood Technology  – Zoom Camera Modules manufacturer.

Most of Long Range Zoom solutions are using Normal box camera and Motorized Lens. Which is very Expensive, Not Stable and Low Efficiency Auto Focus.

To solve the current issues of Long Range Zoom cameras solution, based on SONY’s popular, high image quality and ultra starlight Exmor/Exmor R CMOS Sensor, we are focus on  Ultra LONG RANGE ZOOM  camera modules, and have successfully designed and amp; developed many kinds of Zoom Camera Modules, for example, 2Mp 86x Zoom (10~860mm), 2Mp 90x Zoom (6~540mm), 2Mp/4K/8Mp 50x Zoom (6~300mm).

They can support our own fast and amp; accurate excellent Auto Focus algorithm, Defog and IVS (Intelligent Video Surveillance) functions.
