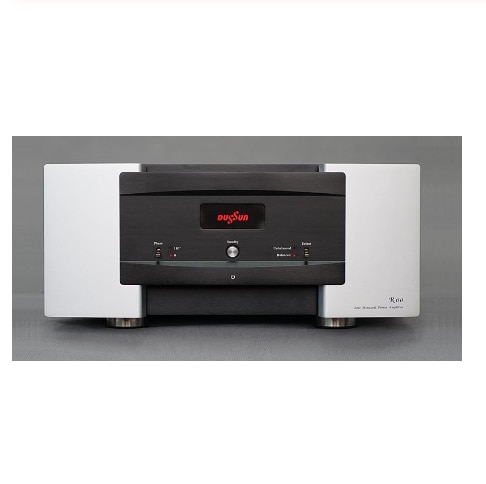

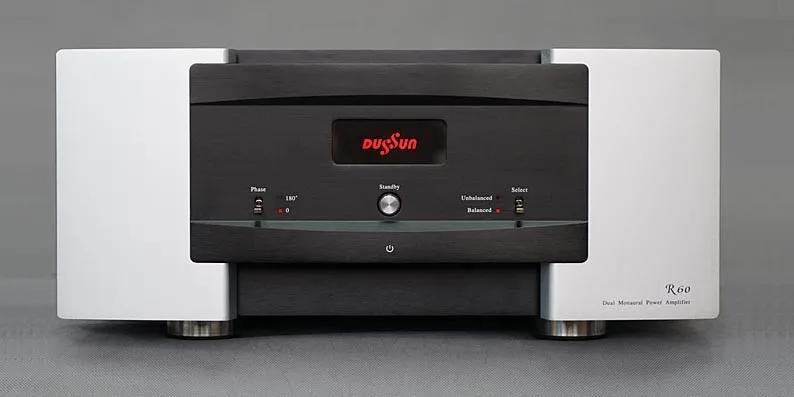

R60 inherits the success of the R20 single channel power amplifier and R30 integrated amplifier. It is based on many years of research, design and manufacture of the amplifier. In order to make sure that the output characteristic is perfect matching electric speaker, R60 design has been a long time.
2. No Crossover distortion design
By Dussun’s adaptive bias technology, even though the speaker’s impedance is greatly reduced, the output power is increased exponentially, the R60 power amplifier always maintains A class power amplifier. Avoid the traditional class A amplifier when the speaker load impedance drops automatically return to the class B work state, so that it is closer to the ideal class A amplifier.
3. Power Supply

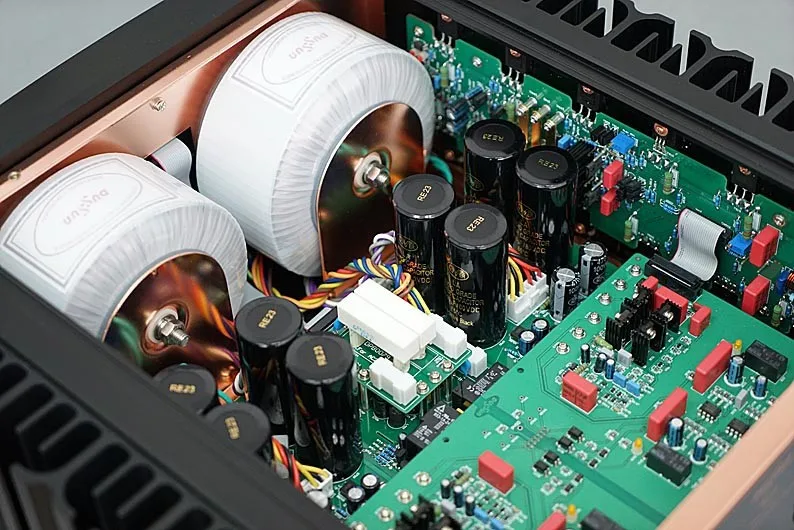

By the three power supply of different circuits to provide a stable, clean DC power, AC power supply on the bus, there are fuses, all the control circuit by a single low-voltage DC power supply.
4. Power amplifier element

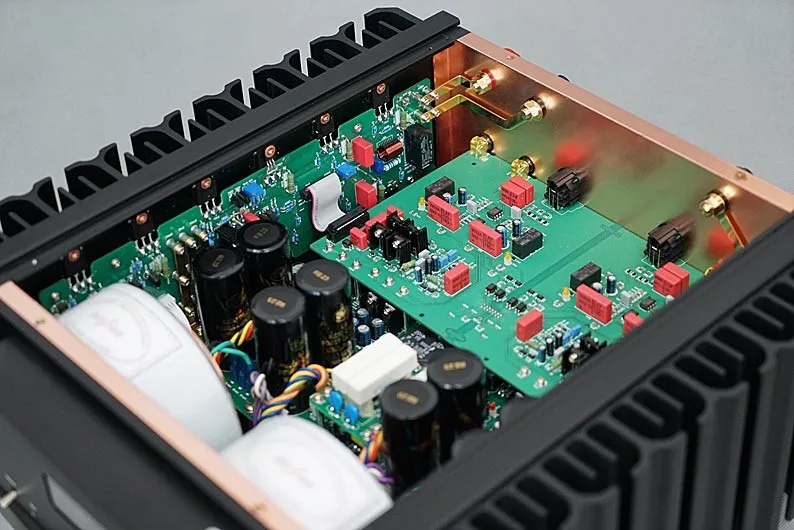

R60 output stage uses high performance output components (12 per channel). All the output components are carefully matched by Dussun technology.
5. Heat treatment
We provide the most appropriate cooling conditions for this high power amplifier.
6. Perfect protection
R60 uses a series of forms of protection.
Surge buffer + overload protection circuit + DC servo
