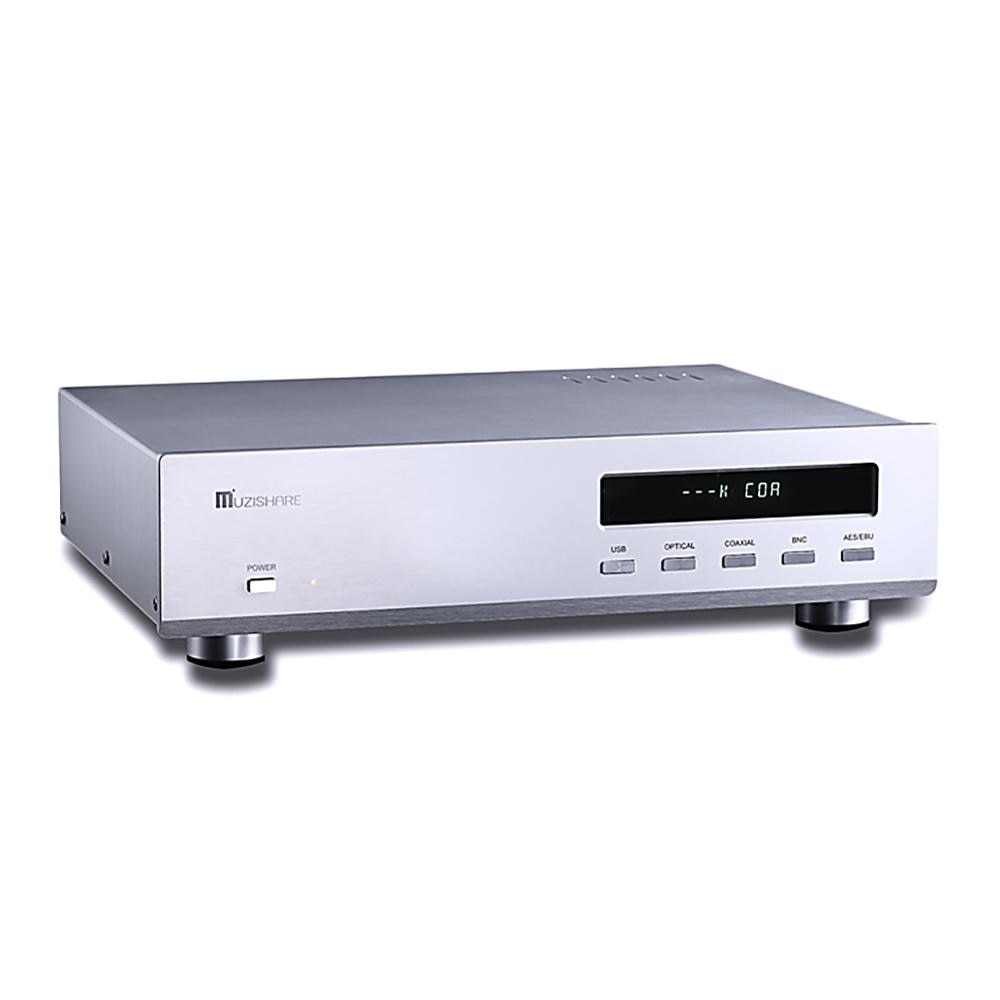

MUZISHARE R10 DAC Tube 12AU7 ES9018 Hifi Audio Decoder 32Bit XLR DAC

MUZISHARE R10 DAC Tube 12AU7 ES9018 Hifi Audio Decoder 32Bit XLR DAC

Technical Parameters:
  • Input: AES/EBU, BNC, USB, Optical, Coaxial
  • Output: RCA x 2, XLR x 1
  • Sampling rate: 32bits, 44.1KHz 48KHz 88.2KHz 96KHz 176.4KHz 192KHz
  • THD:tube 0.5%
  • Frequency response: 15Hz~50kHz
  • SNR: 98dB
  • Dynamic Range:120dB
  • Input impedance:  15Hz~50kHz
  • Input voltage: 110-120v or 220-240v AC
  • Output impedance: tube 2KΩ
  • Output power: tube 2.5V+-0.5dB
  • Power consumption: 35w
  • Dimension: 415 x 340 x 110 mm
  • Net weight: 10kg
  • Working conditions
         Temperature: 0°C to 40°C
         Humidity: 20% to 80%
  • Storage conditions:
         Temperature: -20°C to 70°C
         Humidity: 20% to 90%

Features:
  • Using EI steel sealed transformer, which passed -196℃ freeze. Effectively anti currents impact.
  • Using American ESS Sabre ES9018s  32bit 192khz DAC chip . OP-amplifier chip use American BB OPA2604AP
  • USB chip using 24bit 192khz XMOS asynchronously
  • 5 input option which are AES/EBU(balance), BNC, USB, Optical, Coaxial
  • It has 1 XLR full balance output and 2 RCA output.
  • Using chinese 6Z4 rectifier and 4 x 12AU7  tubes to get a full tube flavor
  • Main structure of machine case using high quality steel.Top cover and control panel using aluminum, with the unique metal keys.





MUZISHARE R10 DAC Tube 12AU7 ES9018 Hifi Audio Decoder 32Bit XLR DAC
