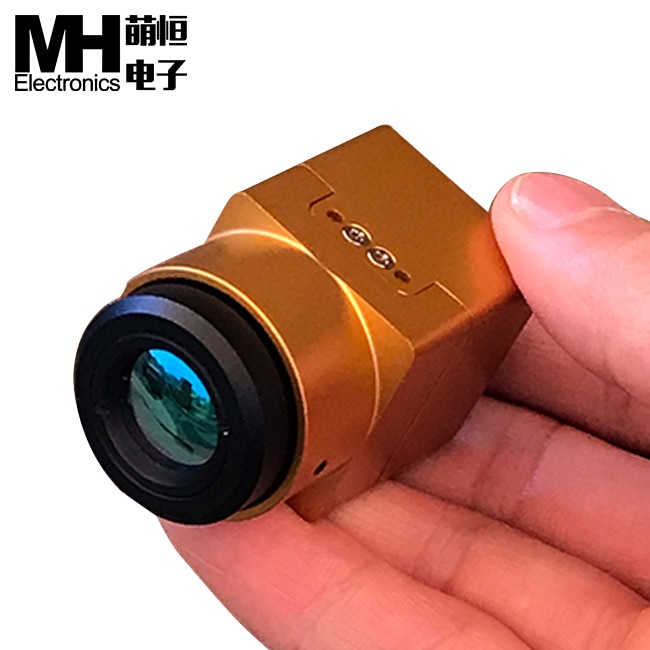

MH-MINIR series Mini Size Night Vision Thermal Camera for Drone  are one of the smallest thermal imaging modules in the world, which use the  latest 384*288/640*480@17μm FPA uncooled detector. Offering the brilliant video quality and customized connection interface, it will bring you great success in your system integration.

Product Introduction

Mini Size Night Vision Thermal Camera for Drone

MH-MINIR Mini Size Night Vision Thermal Camera for Drone,  Its remarkable imaging performance begins with 17µm pitch Amorphous Silicon  uncooled detector, which comes in two resolutions:  384*288/640*480 . MH-MINIR  is available with lots of different lenses, so you’re sure to find a configuration that’s just right for your next project.Whether you’re designing cameras for drones, security or firefighting, MH-MINIR Mini Size Night Vision Thermal Camera for Drone  is small, light, and powerful enough to enable your most innovative designs. MH-MINIR’s competitive price and flexible integration options dramatically shorten design cycles, opening up entirely new possibilities for any thermal sensor-based product you can imagine.

Technical Parameters
Detector
Detector  type Uncooled  amorphous  silicon  FPA
FPA  format  ,  px 384×288/640×480
Pixel  pitch,  μm 17
Sensitivity ≤80mk  at  f/1.0  300K
Frame  rate,  Hz 50Hz
Spectral  range,  μm 8~14
Controls
Polarity White  hot/black  hot
E-Zoom,  x 2x/4x
Brightness/contrast Auto/manual
Image  reversal Horizontal/Vertical
Crosshair Yes
Interface
External  power  supply Yes
Digital  video  output 14  Bit(50Hz)  /  BT  .656(customized)
Communication RS-232
Analogue  video Yes
Keyboard Yes
Image  Processing
Self-adaption  calibration Yes
Time  to  image and lt;3s
Image  enhancement DDE
Image  display  resolution,  px 768×576/640×480
Lens(optional),  mm Optional  12mm,19mm,35mm,,50mm,75mm,100mm
Environment
Operation  temperature  range,  ℃ -20℃~+60℃  /  -40℃~+60℃(option)
Non-operating  temperature,  ℃ -45℃~+65℃
Shock Vibration:  GJB  150-16  2.3.1      GJB  150-18  Test7  100g/6ms
Temperature  shock -5℃/min(-40℃~+60℃)
Power
Operation  voltage  range,  V DC:  +2.5V~+5.5V(typical  3.7V)
Power  consumption,  W and lt;0.5W
Physical  Attributes
Weight,  g 33g
Size,  mm 24x24mm(only  PCB)

Advantage

 Advantage 1: Small in size and light in weight

MH-MINIR Mini Size Night Vision Thermal Camera for Drone  is small in size and light in weight.  Whether you’re designing for drones, security or firefighting, MH-MINIR Mini Size Night Vision Thermal Camera for Drone  is small, light, and powerful enough to enable your most innovative designs.

Advantage 2: Advanced thermal detector bring you amazing thermal image

MH-MINIR Mini Size Night Vision Thermal Camera for Drone,  Its remarkable imaging performance begins with 17µm pitch Amorphous Silicon  uncooled detector, which comes in two resolutions:  384*288px/640*480px .

Advantage 3: Different lens can be customized

MH-MINIR Mini Size Night Vision Thermal Camera for Drone  is available with lots of different lenses(12mm,17mm,19mm,35mm,50mm,75mm,100mm),  so you’re sure to find a configuration that’s just right for your next project.

Advantage 4: Colorful image mode

MH-MINIR Mini Size Night Vision Thermal Camera for Drone  with standard color mode: black and white, absolutely we also have colorful image mode for your option.

Application

MH-MINIR Mini Size Night Vision Thermal Camera for Drone  absolutely can widely used in UAV, monitor, helmet, telescope and vehicle. It definitely can bring you  amazing image.

Package and amp;Accessories

 As a professional manufacturer, We promise you if you receive goods demaged because of pacakge, we deliver you a new one.  we guarantee you receiving best quality Mini Size Night Vision Thermal Camera for Drone  with strongest Safety Box, our package is much better than others,which is used by army.

Company Information



MH Electronics is a lead manufacturer of Mini Size Night Vision Thermal Camera for Drone, for 17 years innovation and research, we are devoted to provide our clients first class service and high quality products. Now we are also strive for  advanced technology and solution for customers.
