Mod0el
SG-TCM12N2-M37300

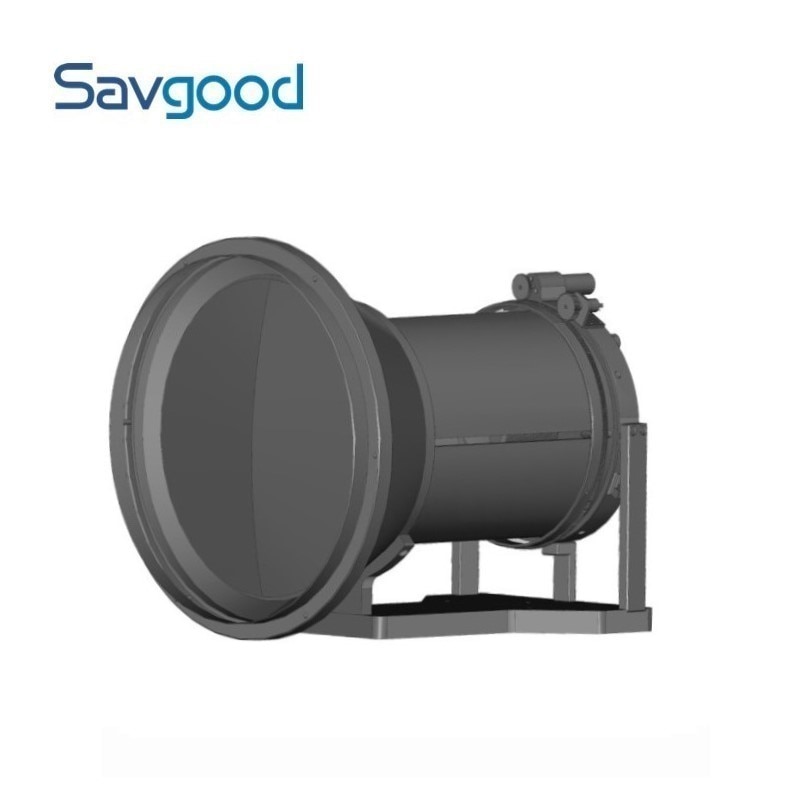

– 1280x1024 Thermal Network Camera Module with 37.5~300mm Motorized Lens
Features
and gt; 1280×1024 Resolution, high sensitivity sensor
and gt; 12um Pixel pitch.
and gt; 37.5~300mm Motorized Thermal Lens
and gt; Support fast Auto Focus
and gt; Support various IVS functions
and gt; Support Fire Detection
and gt; Modular design, better to do function extension
Specification
|
Model |
SG-TCM12N2-M37300 |
|
|
Sensor |
Image Sensor |
Uncooled VOx microbolometer |
|
Resolution |
1280 x 1024 |
|
|
Pixel Size |
12μm |
|
|
Spectral Range |
8~14μm |
|
|
NETD |
≤50mK@25℃, F#1.0 |
|
|
Lens |
Focal Length |
37.5~300mm motorized Lens |
|
Optical Zoom |
8x |
|
|
Digital Zoom |
4x |
|
|
F Value |
F0.95~F1.2 |
|
|
FOV |
23.1°×18.6°~2.9°×2.3° |
|
|
Video |
Compression |
H.265/H.264/H.264H |
|
Snapshot |
JPEG |
|
|
Pseudo color |
Support: White Hot, Black Hot, Iron Red, Rainbow 1, Fulgurite, Rainbow 2, Fusion, Bluish Red, Amber, Arctic, Tint |
|
|
Streams |
Main Stream: 25fps@(1280×1024) Sub Stream: 25fps@(640×512), 25fps@(352×288) |
|
|
Network |
Network Protocol |
IPv4/IPv6, HTTP, HTTPS, Qos, FTP, SMTP, UPnP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, DHCP, PPPoE, 802.1X, IP Filter |
|
Interoperability |
ONVIF Profile S, Open API, SDK |
|
|
Max. Connection |
20 |
|
|
Intelligence |
Normal Event |
Motion Detection, Audio detection, IP address conflict, Illegal Access, Storage anomaly |
|
IVS functions |
Support intelligent functions: Tripwire, Cross Fence Detection, Intrusion, Loitering Detection. |
|
|
Fire Detection |
Support |
|
|
Interface |
Ethernet |
4PIN Ethernet port, 10M/100M self-adaption |
|
Alarm In/Out |
1/1 |
|
|
RS485 |
Support |
|
|
Resolution |
50Hz: 25fps@(1280×1024) |
|
|
Storage Capabilities |
Micro SD card, up to 256G |
|
|
Power Supply |
DC 9~12V (Recommend: 12V) |
|
|
Operating Conditions |
-20°C~+60°C/20% to 80%RH |
|
|
Storage Conditions |
-40°C~+65°C/20% to 95%RH |
|
|
Dimensions(L*W*H) |
Approx. 447mm*300mm*300mm |
|
|
Weight |
Approx. 16kg |
|
