Product Description

Hardware Specifications
Chipset

ESPRESSIF-ESP32-WROOM,LAN8720A Ethernet chip,SI3404 Power management chip

FLASH 4MB

SRAM   520 kB SRAM
Button BOT,Rest
External Device TF Card Slot,Type-C   Interface,PA2369NL 1825-S Transformer,HR861153C Ethernet-POE interface
USB to TTL CP2104
Modular interface  SD card、UART、SPI、I2C、PWM、I2S、ADC
On-board clock 32.768MHz crystal oscillator
Working temperature range  -40℃  ~ +85℃
Weight 26.85g
Size 70*52.3*17mm



Power Supply Specifications


Power Supply Input Type-C USB   5V
  HR861153C Ethernet-POE interface   50V
Working voltage 2.7V-3.6V
Maximum output current About 1.2A
Charging current 500mA
USB Type-C USB

Wi-Fi
Standard FCC/CE-RED/IC/TELEC/KCC/SRRC/NCC(esp32 chip)
Protocol 802.11 b/g/n(802.11n,speed up to150Mbps)A-MPDU and A-MSDU polymerization,support 0.4μS Protection interval
Frequency range 2.4GHz~2.5GHz(2400M~2483.5M)
Transmit Power 22dBm
Communication distance 300m

Bluetooth
Protocol Meet bluetooth v4.2BR/EDR and BLE standard
Radio frequency With -97dBm sensitivity NZIF receiver Class-1,Class-2 and amp;Class-3 emitter AFH
Audio frequency CVSD and amp;SBC audio frequency

Software specification
Wi-Fi Mode Station/SoftAP/SoftAP+Station/P2P
Security mechanism WPA/WPA2/WPA2-Enterprise/WPS
Encryption Type   AES/RSA/ECC/SHA
Firmware upgrade UART download/OTA(Through network/host to download and write firmware)
Software Development Support cloud server development /SDK for user firmware development
Networking protocol IPv4、IPv6、SSL、TCP/UDP/HTTP/FTP/MQTT
User Configuration AT + Instruction set, cloud server, android/iOSapp
OS FreeRTOS





More Information

https://github.com/Xinyuan-LilyGO/LilyGO-T-ETH-POE

Product Pin

Product Size

Product Detail

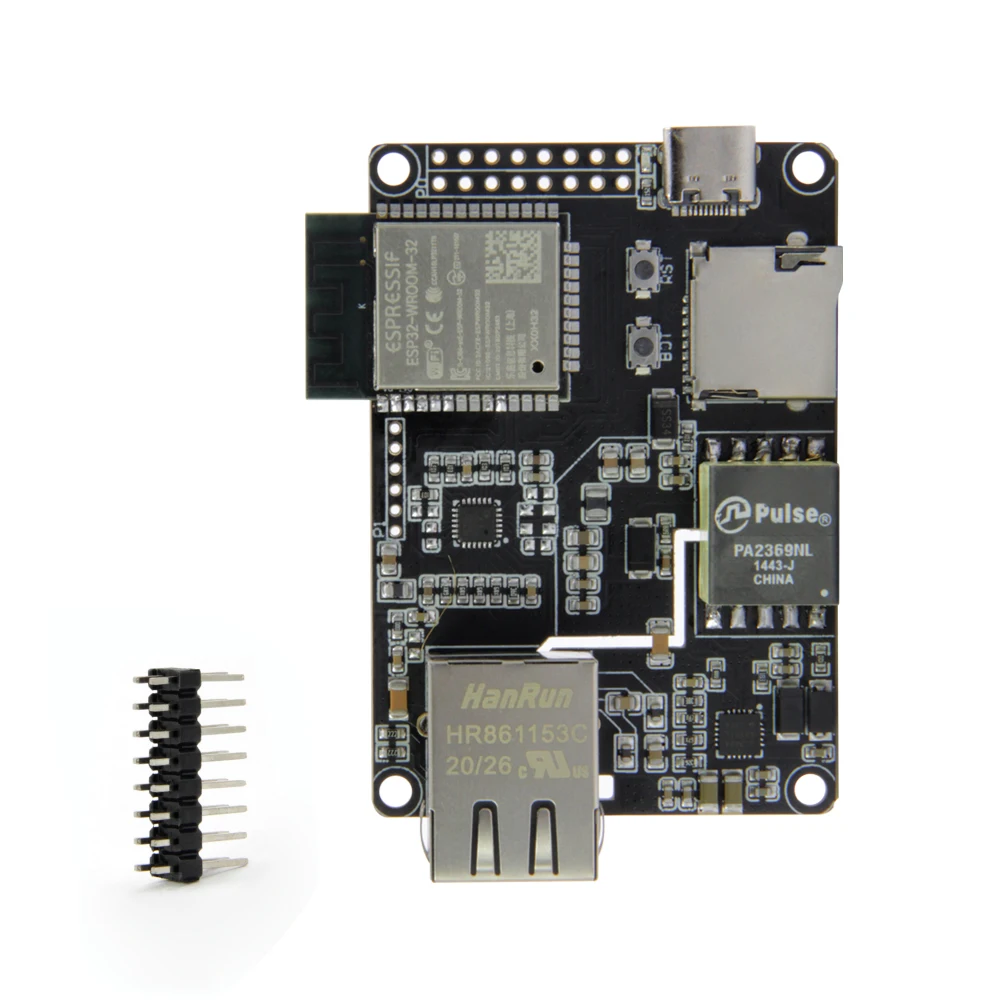

1.Compatible with PoE mode A (powered by data pair) and PoE mode B (powered by backup pair) and auto MDIX, allowing the use of straight and crossover Ethernet cables.
2.20 needle footprint with 3.3V, V+ power and 15 ESP32GPIO are available for your application.
3. The compact 75mm by 40mm footprint is compatible with 4 mounting holes of ordinary M2.5 or 4-40 screws.

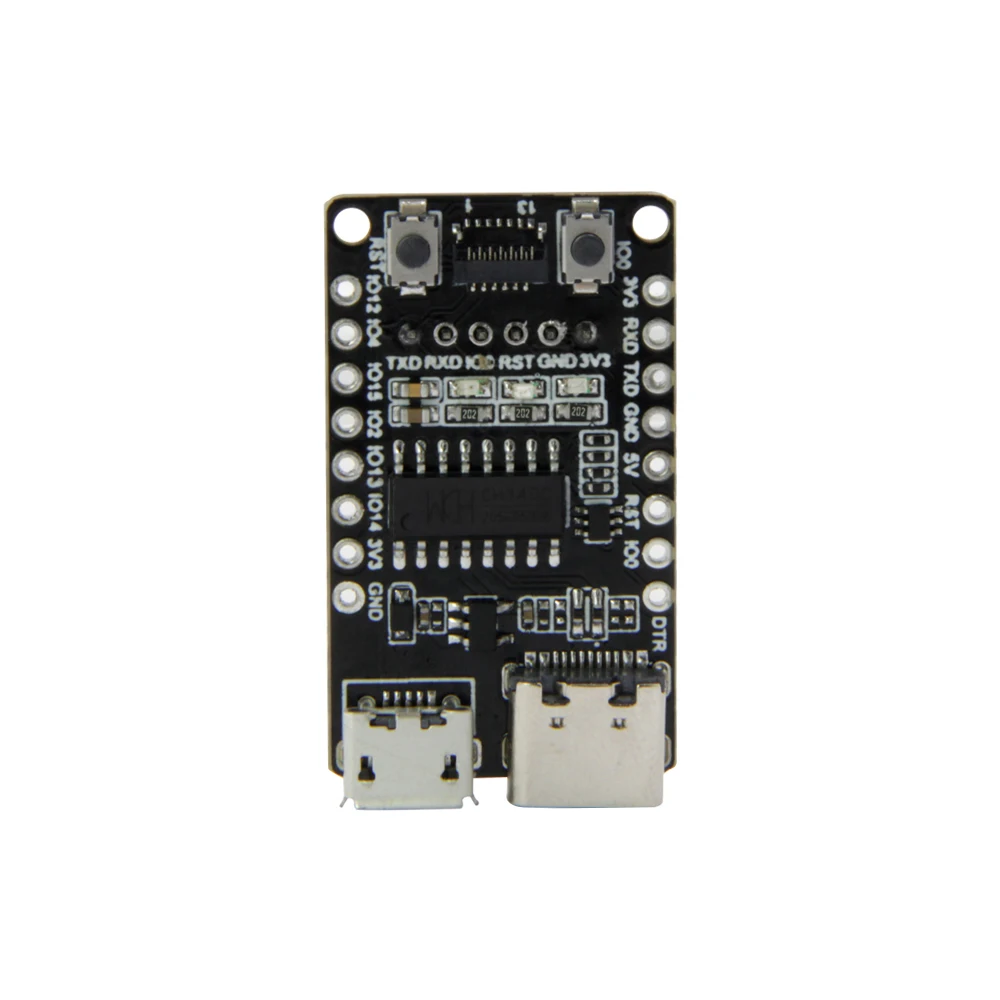

4.A small programming/USB serial console sub-module has been created so that the Inter-POE module can be easily programmed to meet the user’s application needs.

Note:  the USB interface only has a charging function, the product needs downloader to program .


Shipping List

Option 1
1 X T-Internet-POE
1 X  Double Row Pin

Option 2
1 X  Downloader Expansion Board
