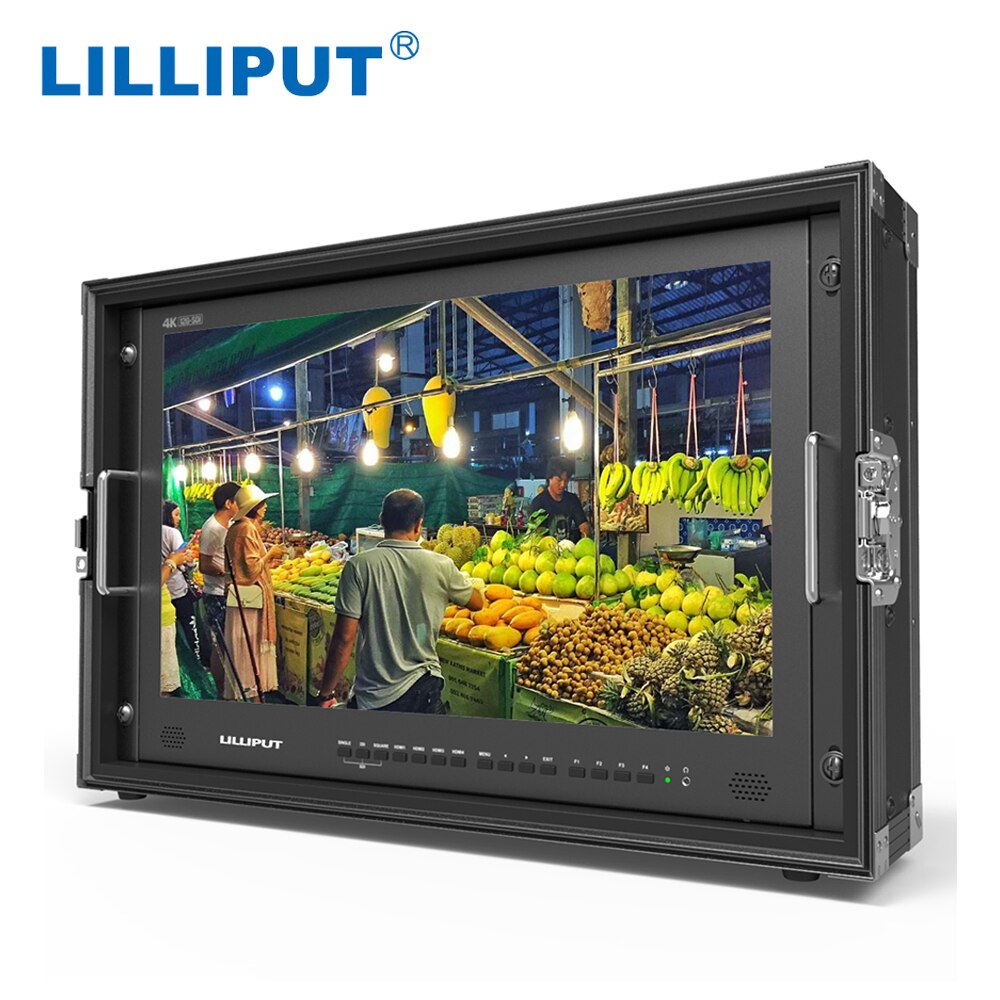

23.8″ 12G-SDI 4K Broadcast Director Monitor with 12G-SDI, 4K HDMI inputs
Packing List:
– 1 x TALLY connector
– 1 x Flexible folding sun shade
– 2 x Fixing Belt
– 1 x Battery plate bracket
– 1 x 15V DC adapter
– 1 x V-mount Battery plate
– 1 x Carry-on suitcase
– 1 x English User Manual
|
DISPLAY
|
Display Screen |
23.8” 10bit |
|
Physical Resolution |
3840×2160, 4K |
|
|
Aspect Ratio |
16:9 |
|
|
Brightness |
300cd/m² |
|
|
Contrast |
1000:1 |
|
|
Viewing Angle |
178°/178°(H/V) |
|
|
INPUT
|
12G-SDI |
2 |
|
3G-SDI |
2 |
|
|
HDMI |
HDMI 2.0×1 (4K@60Hz) HDMI 1.4×3 (4K@30Hz) |
|
|
TALLY |
1 |
|
|
OUTPUT
|
12G-SDI |
2 |
|
3G-SDI |
2 |
|
|
AUDIO
|
Speaker |
1 |
|
Ear Phone Slot |
1 |
|
|
POWER
|
Current |
4.1A (15V) |
|
Input Voltage |
DC 12-24V (XLR) |
|
|
Battery Plate |
V-mount / Anton Bauer mount |
|
|
Power Consumption |
≤61.5W |
|
|
ENVIRONMENT
|
Operating Temperature |
0℃～60℃ |
|
Storage Temperature |
-20℃～60℃ |
|
|
DIMENSION
|
Dimension(LWD) |
579×376.5×45mm / 666×417×173mm (with case) |
|
Weight |
8.6kg / 17kg (with case) |
