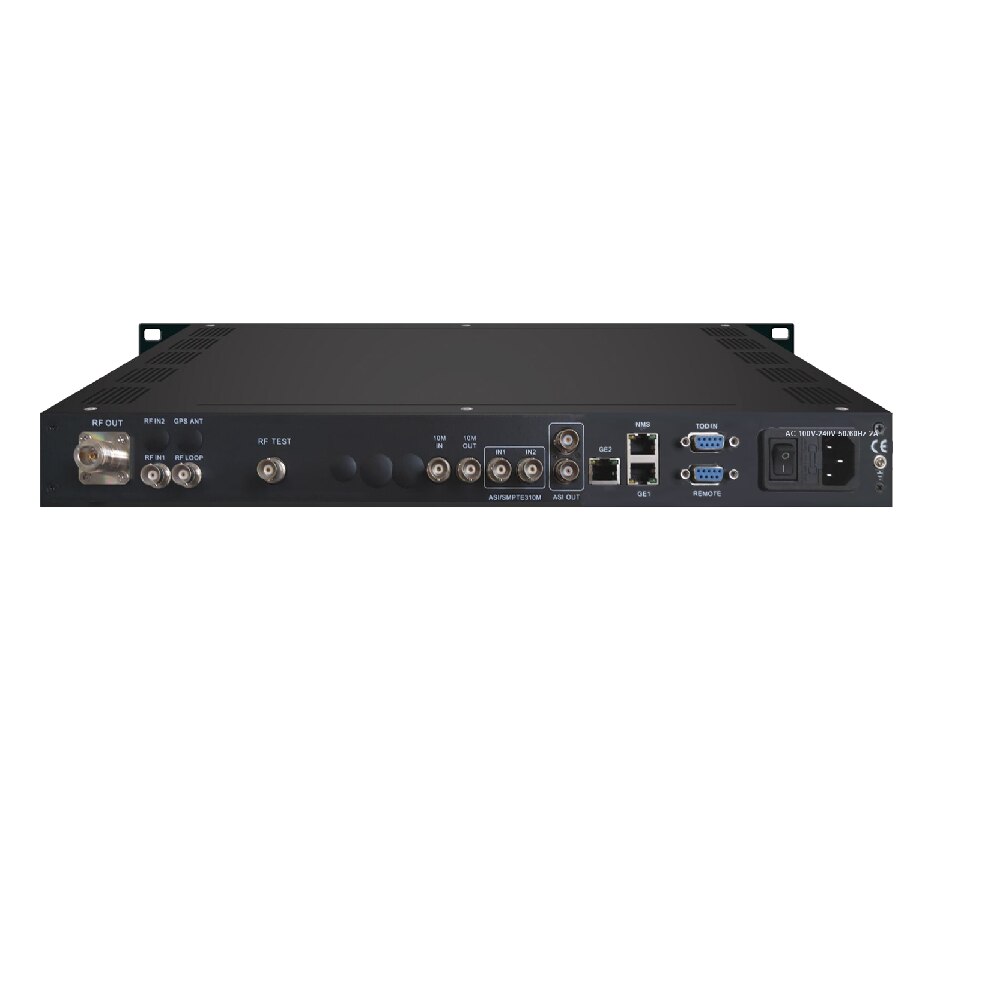

Jiexiang Dual Channel DVB-ASI/SMPTE-310M to ATSC-T Modulator
Skype: live:jiexiang02 to contact Jaylyn
Input |
Self-adapted 2 Asi/SMPTE 310M input 2 ASI ports input, one for hot backup, BNC interface |
|
Dual IP input ports, one for hot backup , over UDP/RTP, Unicast/Multicast, GE ports |
||
1 channel 10MHz reference clock input |
||
Modulation |
Standard |
ATSC A/53 |
Constellation |
8VSB |
|
Bandwidth |
6 MHz |
|
FEC |
RS(208 188)+Trellis |
|
RF output |
Port |
N Type, 50Ω impedance |
RF range |
50~860Mhz,1Hz stepping |
|
Output Level ATT |
-20dBm~6dBm,0.1dB stepping |
|
Shoulder Level |
60dB |
|
MER |
≥ 40dB |
|
DPD |
Non-linear DPD |
over 10dB ACPR improvement (normally) |
linear DPD |
over 10dB non-flatness adjustment(normally) |
|
System |
LCD display and amp; keyboard operation, NMS, Chinese and amp; English operation display |
|
Software upgraded through network |
||
General |
Demission(WxLxH) |
482mm×455mm×44.5mm |
Weight |
6.0kg |
|
Temperature |
0~45℃( operation),-20~80℃( storage) |
|
Power Supply |
AC 110V±10%,50/60Hz or AC 220V±10%, 50/60Hz |
|
Consumption |
25W |
