Overview

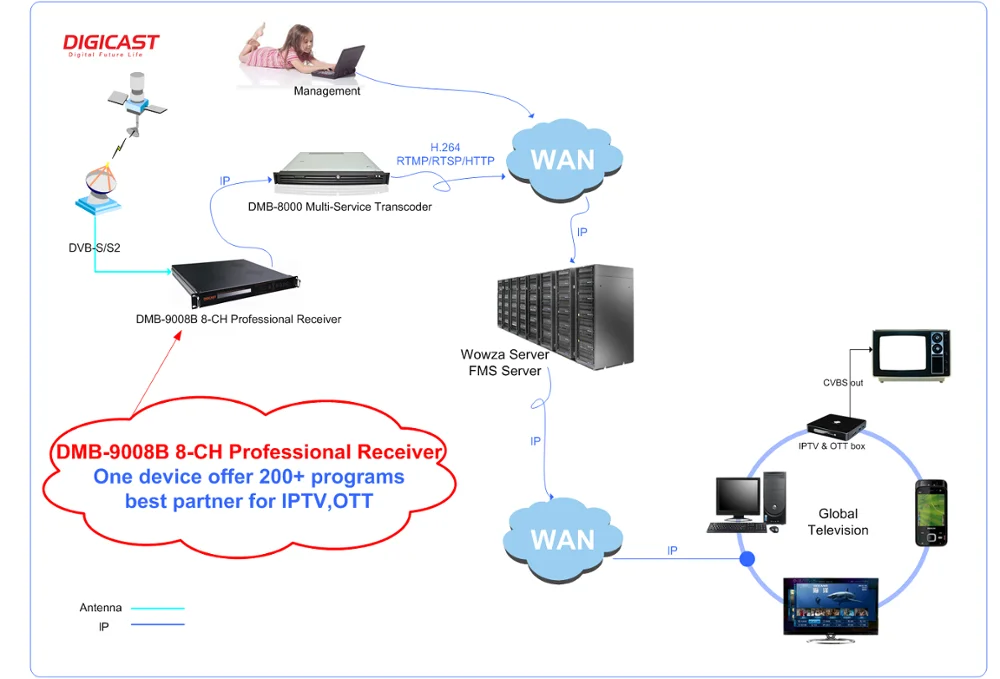

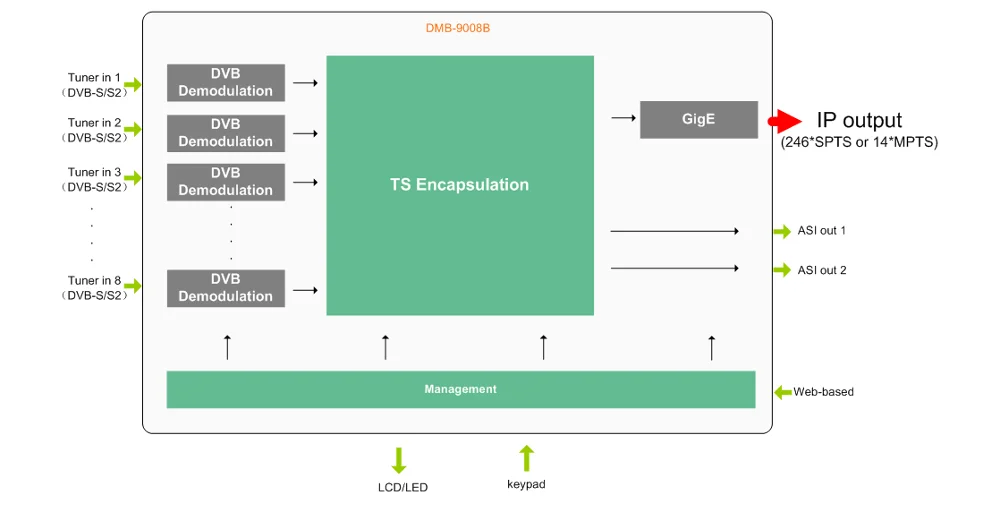

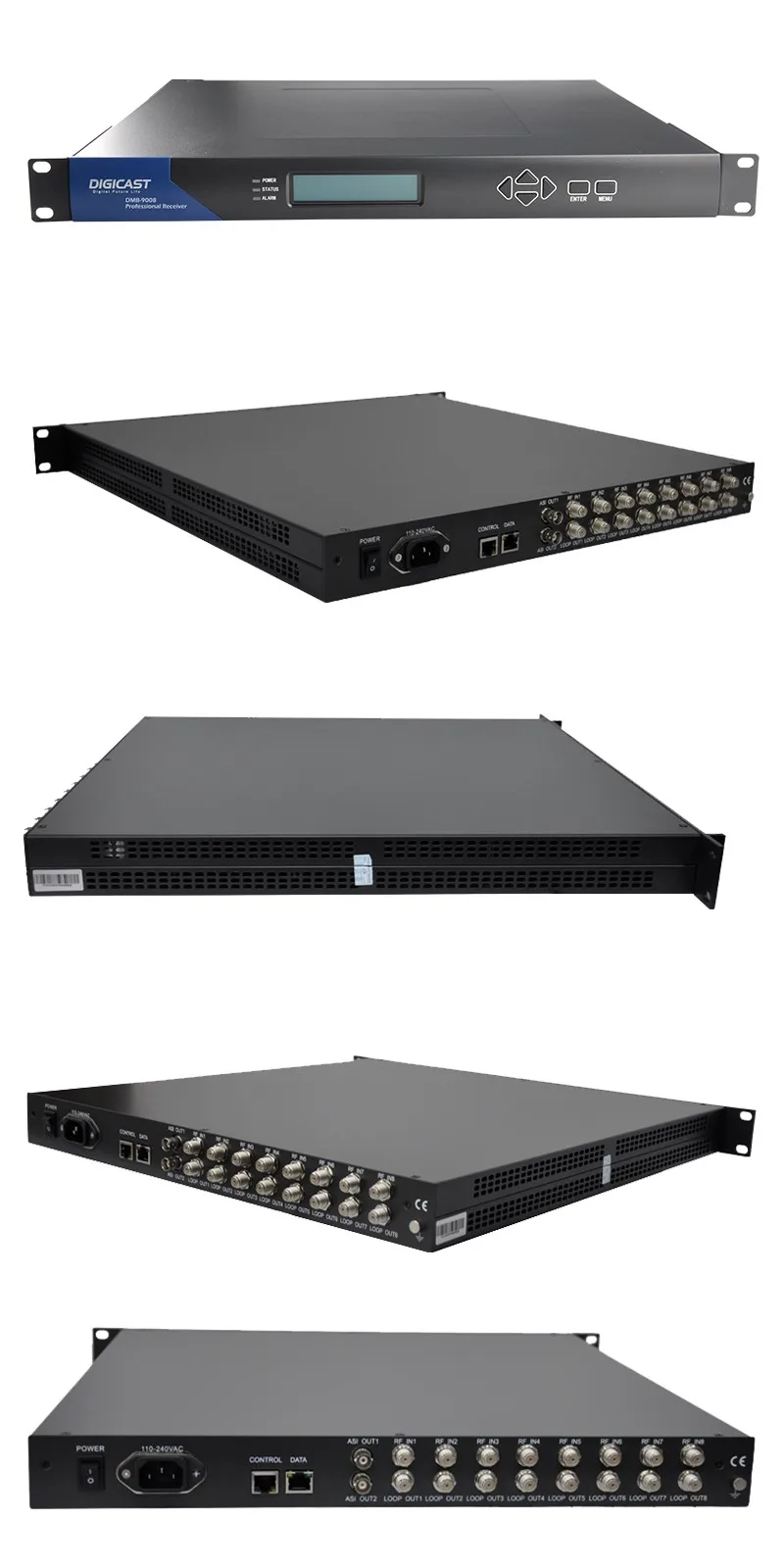

DMB-9008B 8Channel Professional Receiver works with TS over IP technology. De-modulate the Tuner signals to DVBASI signals, encapsulating TS over IP signals transmission. Meanwhile capable of multiplexing, SimulCryption, DVBCSA scrambling, BISS decryption. This Multichannel Professional Receiver can accept 8*Tuner(DVBS/S2/T/T2/C/ISDBT/Tb) input signals, demodulate to 2*ASI(independent) output and encapsulate to IP packet, then output 246*SPTS or 14*MPTS over IP addresses or ports. Adopting Gigabit Ethernet interface, DMB9008B 8Channel Professional Receiver features high I/O bit rate, powerful correction capability, low error rate, etc.. It has become the bridge between the new generation IP network and traditional DVB network, which is suitable for IPTV and amp; OTT headend contribution system.
FEATURES
* Tuner inputs support DVBS/S2,DVBT/T2,DVBC,ISDBT/Tb for option
* Each Tuner input with loop out interface, for the convenience of next device
* Up to 246*SPTS or 14*MPTS output over IP addresses or ports via GigE
* IP transmission follows UDP, RTP, ARP, ICMP, IGMP protocol
* Capable of multiplexing, SimulCryption, DVBCSA scrambling, BISS decryption.
* Realize optimum transmission performance in low latency
* Easy and convenient operation, with keyboard on front panel and LCD display
* Web-based management
|
SPECIFICATION
|
|
|
|
Transport Stream Input Interfaces
|
|
|
|
Tuner Input
|
Interface: 8*Tuner(DVB-S/S2/C/ATSC) input and loop out option
RF input range: 950MHz~2150MHz(DVBS/S2) Input level: 65~25dBm Connector: Ffemale type, 75ohm Symbol rate: 2~45Msps for QPSK/8PSK Rolloff factor: 0.35 for QPSK; 0.35,0.25,0.2 for 8psk Convolution: DVB-S QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 8/10 ; DVB-S2 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 Standard: DVBS comply to EN300421 DVBS2 comply to EN302307 LNB Power Output: 0V/+DC 13V/18V, Imax=400mA |
|
|
Transport Stream Output Interfaces
|
|
|
|
ASI Output
|
2 x ASI(independent),impendence 75Ω, BNC Female
188/204 Bytes MPEGTS per packet length Bit Rate≤100Mbps each |
|
|
IP Output
|
Output: 246*SPTS or 14*MPTS over IP
Interface: GigE port(100/1000M baseT Ethernet),RJ45 Transmission protocol: UDP, RTP, ARP, ICMP, IGMP protocol Transmission mode: Unicast or Multicast TS packet Length: 7 x 188Byte |
|
|
Transport Stream Processing
|
|
|
|
Re-multiplexing |
Capable of multiplexing, BISS decryption
|
|
|
GENERAL OPTIONS
|
|
|
|
Control and Management
|
Interface: 1*RJ45,10/100 BaseT network interface
Remote control: web-based management Local operation: keyboard on front panel, LCD display |
|
|
Physical Parameters |
Voltage: 90~260VAC, 50/60Hz
Consumption: 25W Operating temperature: 0~50°C Storage temperature: 10~70°C Relative humidity: 10%~90%(non-condensing) Dimensions: 430mm(W)×400(D)mm×45mm(H)(19inch,1RU) Weight: 4 KGS |
|
|
