Product Description
|
Key parts
|
|
|
|
|
Panel
|
LCX173A-(B11 SML)
|
|
|
PJ Lens
|
F1.8_ST
|
|
|
Lamp
|
Philips:218W
|
|
|
PW IC
|
Topaz:PWC878
|
|
|
Sony IC
|
CXD3551+CXA3828
|
|
Brightness
|
|
|
|
|
Brightness (Marketing)
( Ansi Lumens ) |
4500
|
|
|
Brightness (Typ)
( Ansi Lumens ) |
3700
|
|
Optical Data
|
|
|
|
Panel
|
Display Panel
|
3×0.59″
|
|
|
Display Technology
|
Liquid Crystal Display
|
|
|
Native Resolution
|
WXGA (1280 x 800)
|
|
Lamp
|
Lamp Consumption(W)
|
Philips:218W
|
|
|
Lamp Lifetime(H)
|
4000H(Normal) /10000H(ECO)
|
|
Projection
Lens |
Zoom/Focus
|
Manual
|
|
|
Throw Ratio
|
80″@0.79m;0.46 : 1
|
|
|
F
|
F=1.8
|
|
|
f
|
f=6.08mm
|
|
|
Zoom Ratio
|
N/A
|
|
|
Screen size
|
0.484~1.004m(50″~100″)
|
|
|
Lens Shift V
|
N/A
|
|
|
Lens Shift H
|
N/A
|
|
CR
|
Contrast Ratio(Min)
|
10000:1(with IRIS and amp;ECO mode)
|
|
Noise
|
Noise(dB)@1m
|
ECO: MAX 34.9dB;
Normal: 38.9dB |
|
Uniformity
|
Uniformity(Actual Min)
-JISX6911 |
80%
|
|
AR
|
Aspect Ratio
|
16:10 (Standard)/4:3(Compatible)
|
|

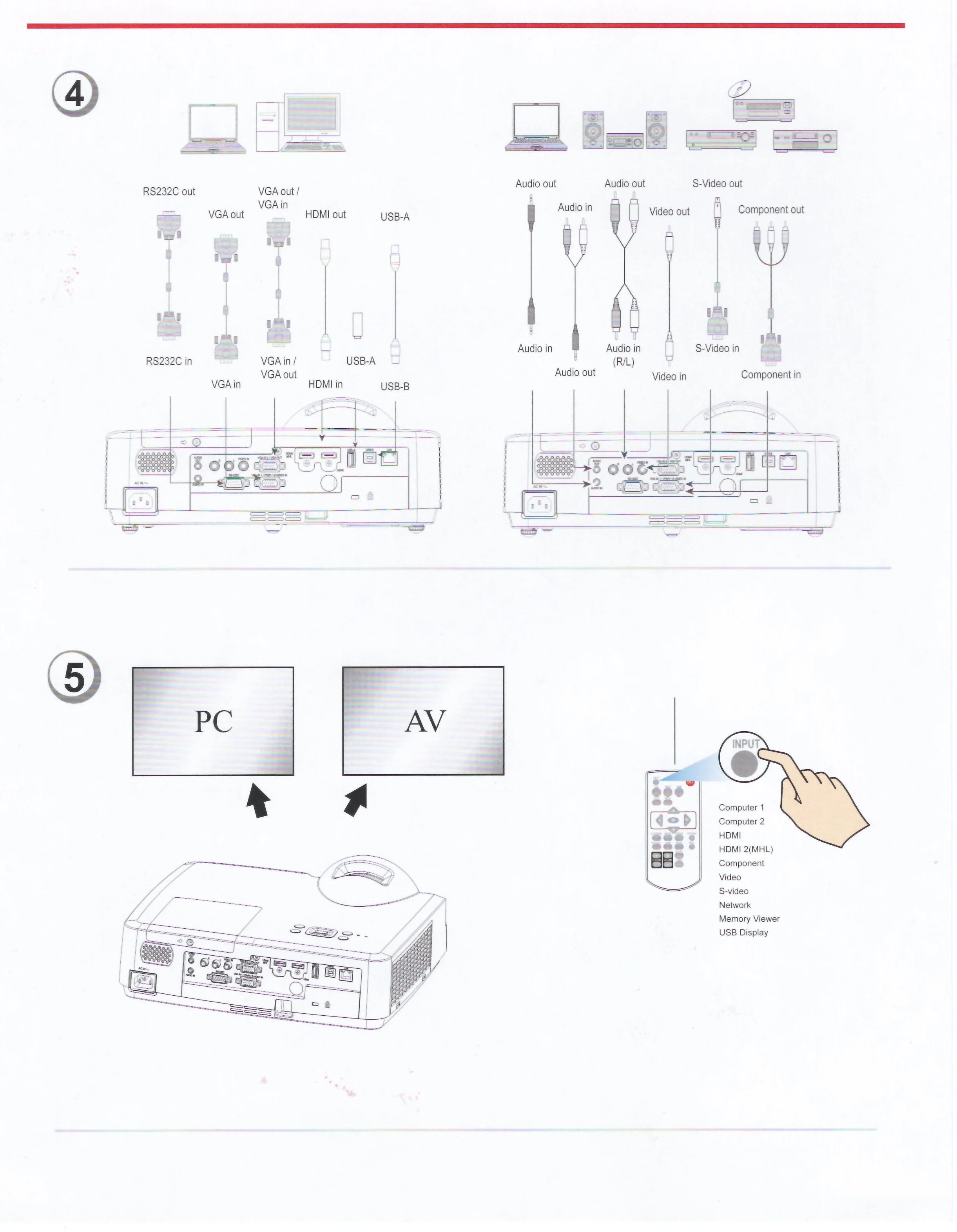

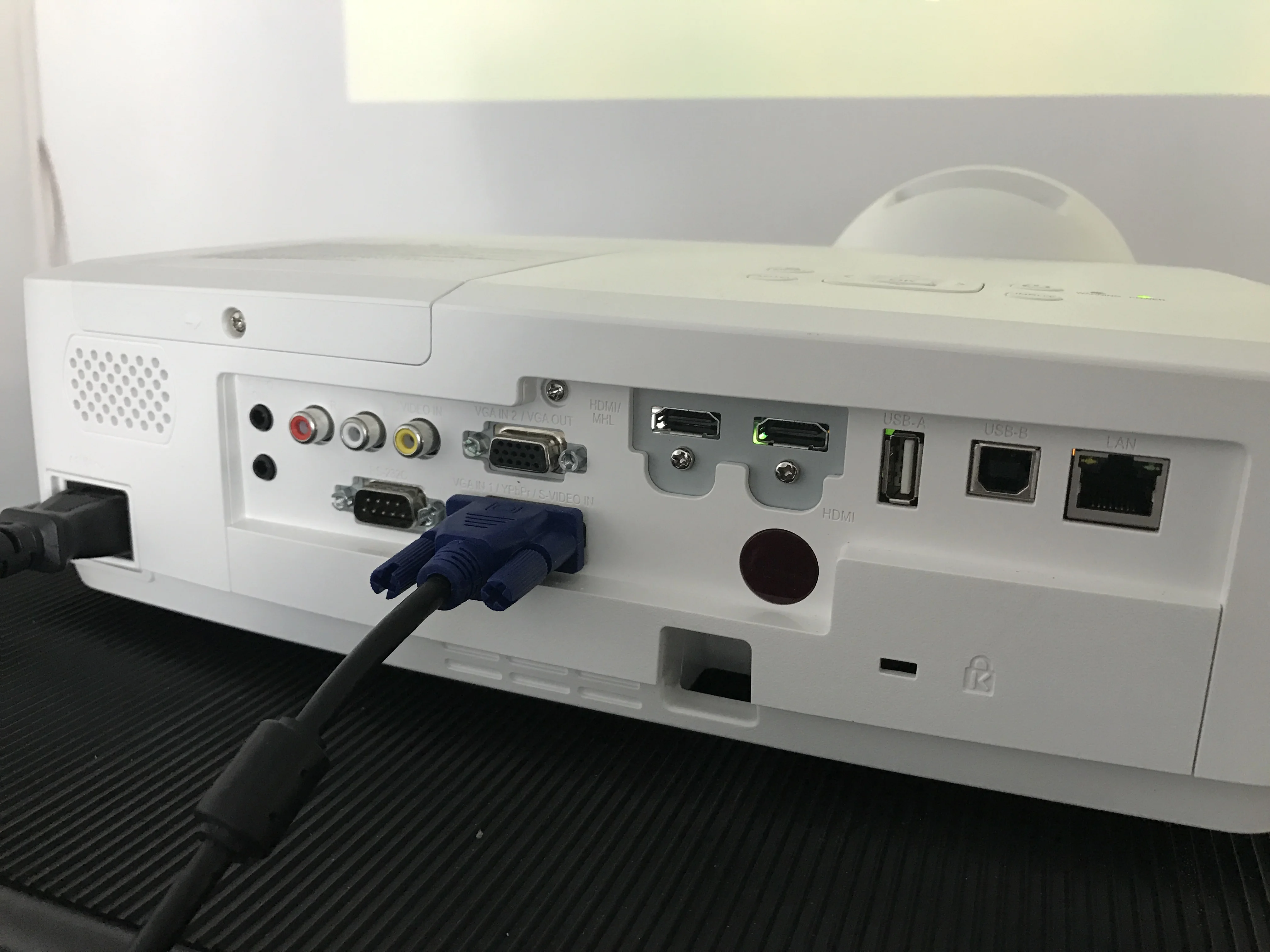

Terminal(I/O port)
|
|
|
|
Input
|
VGA
|
*2
|
|
|
Audio in
(mini jack,3.5mm) |
*1
|
|
|
YCbCr/Comopnent
|
*1(share with VGA in 1)
|
|
|
Video
|
*1
|
|
|
Audio in(L/R)
–RCA |
*2
|
|
|
S-Video
|
*1(share with VGA in1)
|
|
|
HDMI
|
*2(One is Compatible with MHL)
|
|
|
USB- A
|
*1
1. Support Memeory viewer 2. WiFi Dongle (Optional Accessory) |
|
|
USB- B
|
*1(Display)
|
|
|
RJ45
|
*1(Display)
|
|
Output
|
VGA
|
*1(Share with VGA IN 2)
|
|
|
Audio out
(mini-jack,3.5mm) |
*1
|
|
|
Other Interface
|
N/A
|
|
Control
|
RS232
|
*1
|
|
|
RJ45
|
*1 (Control)
|
|
|
USB-B
|
*1(for up-grade)
|
|
|
Other Interface
|
N/A
|
|
General Spec
|
|
|
|
Audio
|
Speaker
|
1*10W
|
|
Power
Consumption |
Power Requeirements
|
100~240V@ 50/60Hz
|
|
|
Power Consumption
|
270W
|
|
|
ECO Standby Mode
Power Consumption |
and lt;0.5W
|
|
|
Network standby
Power Consumption |
and lt;3W
(Remark:Jan/2017 run in) |
|
Temp. and amp;Humidity
|
Operating Temp.
|
0℃~40℃(35~ ECO)
|
|
|
Store Temp.
|
-20℃~~60℃
|
|
|
Oparating Humidity
|
20%~85%
|
|
|
Storage Humidity
|
10%~85%
|
|
Mechanical Design
|
Security bar
|
Yes
|
|
|
Password protections
|
Yes
|
|
|
Control Panel Lock
|
Yes
|
|
|
Kenginston Lock
|
Yes
|
|
|
Ventilation (In/Ex)
|
Side/Side
|
|
|
Lamp access
|
Top
|
|
|
Filter access
|
Side
|
|
|
Dust filter
|
ESD filter
|
|
Other Functions
|
|
|
|

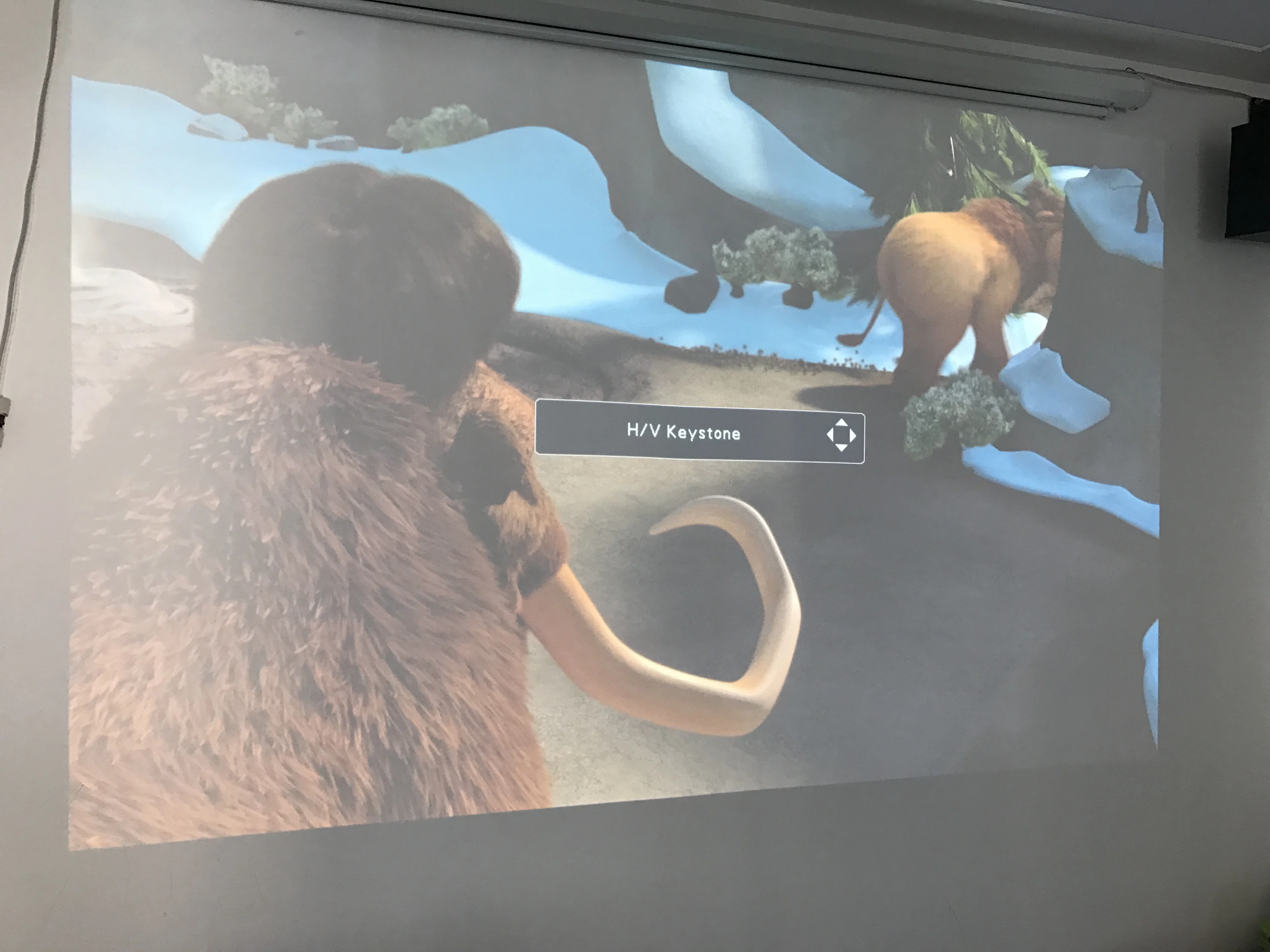

Keystone
|
Keystone Correction
|
V: ±15°(auto+manual)

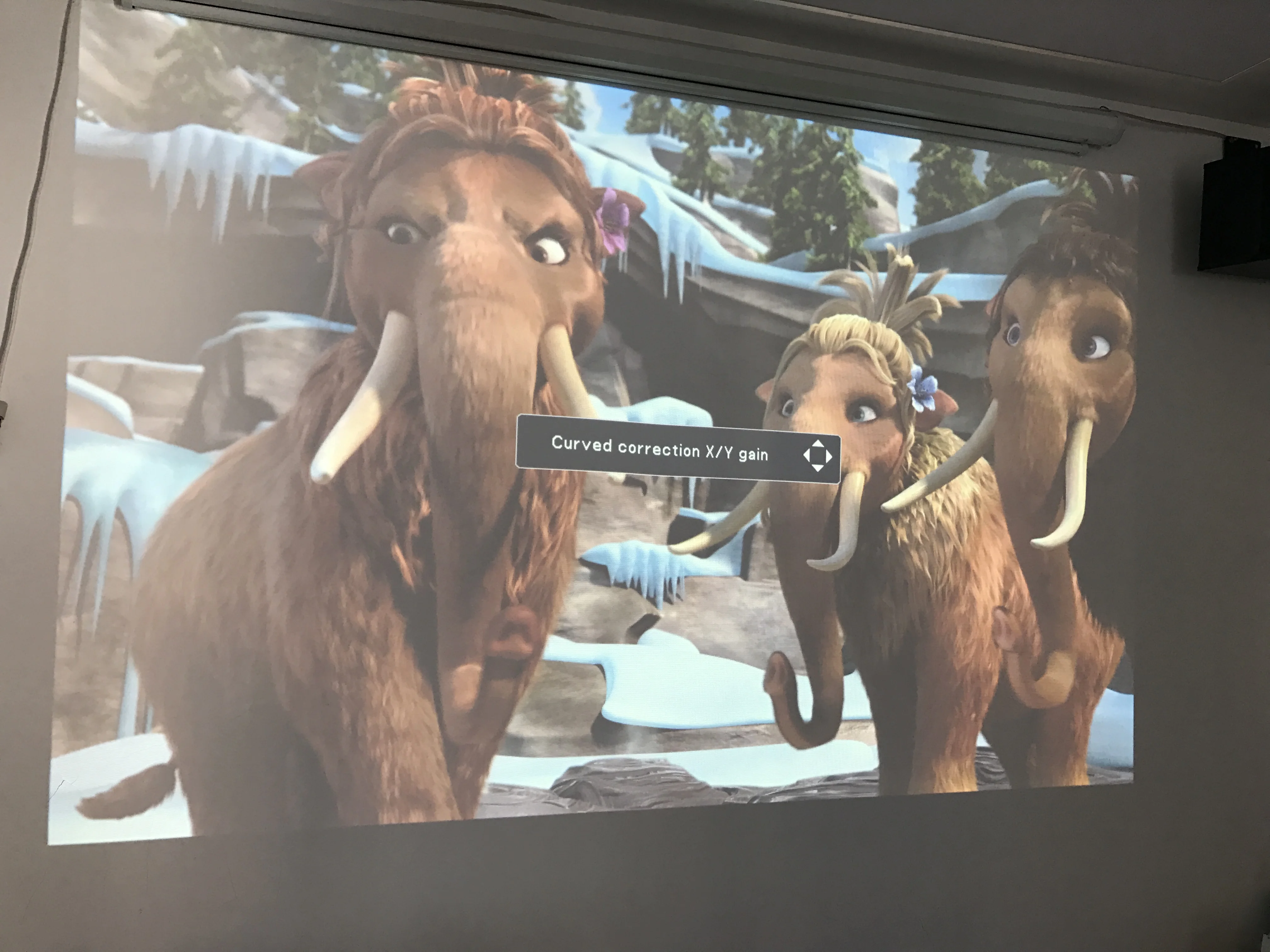

H:±15°(manual) Pincushion/Barrel Correction Corner Keystone |
|

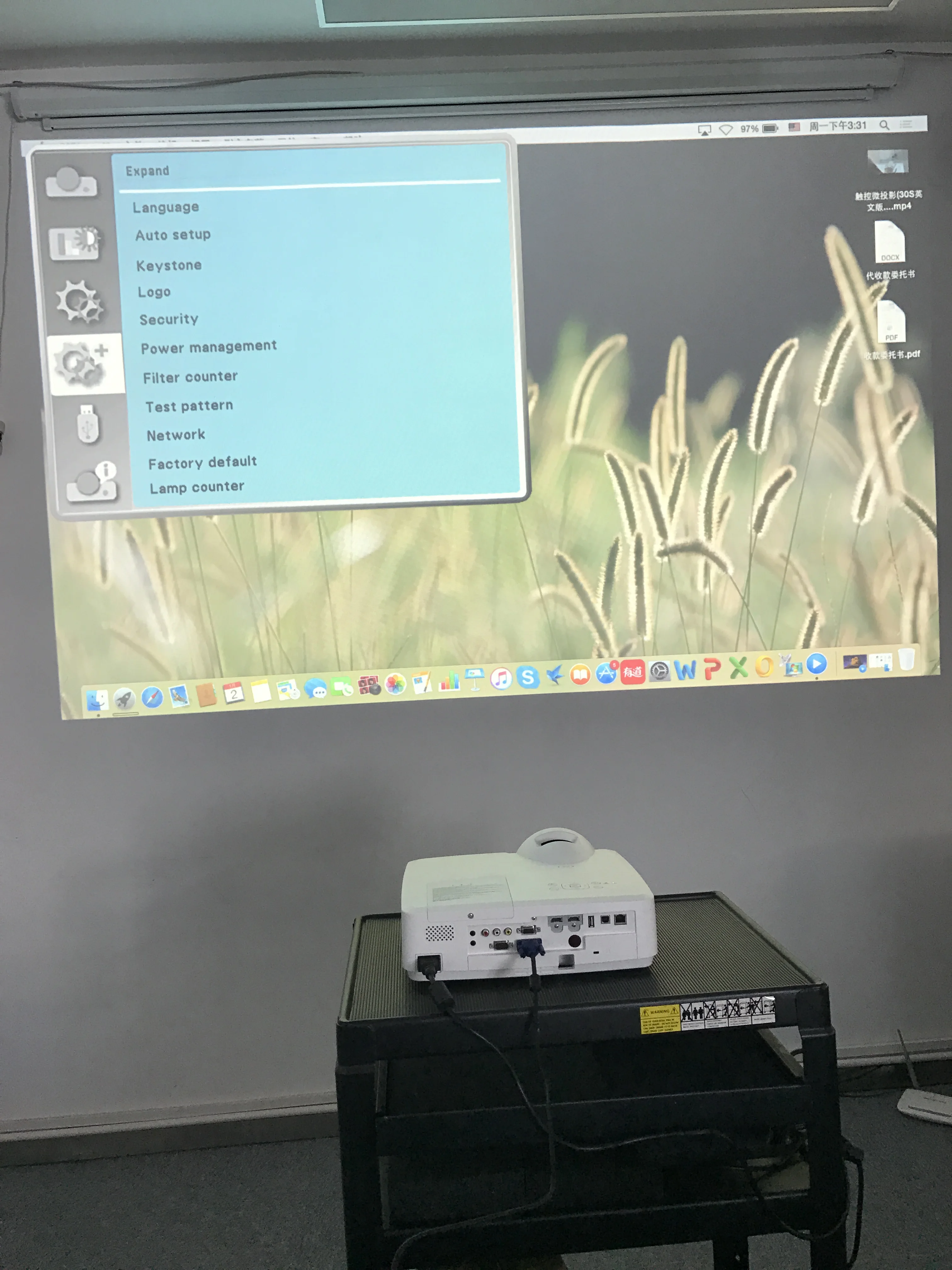

OSD
|

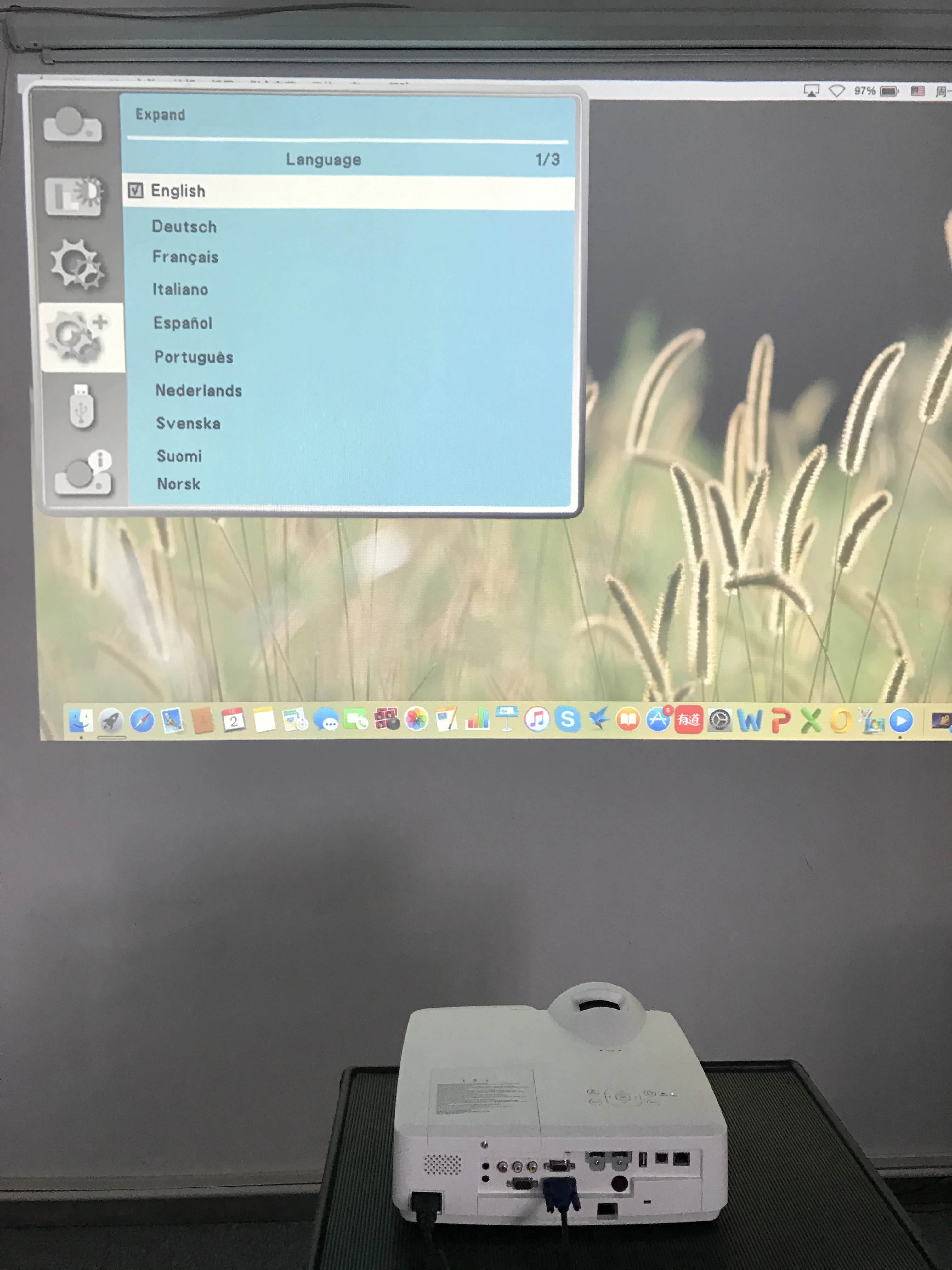

Languages
|
26 languages: English, German, French, Italian, Spanish, Polish, Swedish, Dutch ,Portugese, Japanese, Simplified Chinese,
Traditional Chinese, Korea, Russian, Arabic, Turkish, Finnish, Norwegian, Danish, Indonesian, Hungarian, Czech, Kazak,Vietnamese,Thai, Farsi |
|
LAN Control
|
LAN Control-RoomView
(Crestron) |
Yes
|
|
|
LAN Control-AMX Discovery
|
Yes
|
|
|
LAN Control-PJ Link
|
Yes
|
|
Scanning
Frequency |
H-Synch Range
|
15~100KHz
|
|
|
V-Synch Range
|
48~85Hz
|
|
Display
Resolution |
Computer Signal Input
|
VGA, SVGA, XGA, SXGA,WXGA,UXGA,WUXGA,Mac,
|
|
|
Video Signal Input
|
PAL, SECAM, NTSC 4.43, PAL-M, PAL-N, PAL-60,
480i, 480p, 576i, 576p, 720p, 1080p and 1080i |
|
SW setting
|
Auto Setup
|
INPUT SEARCH,AUTO PC,
AUTO Keystone |
|
|
Audio muting(Muting)
|
Yes
|
|
|
Suspend
|
Yes(5miniutes no singnal as default)
|
|
|
Picture mode
|
Dynamic,Standard,Cinema,
Blackboard,Colorboard |
|
|
Lamp mode
|
NORMAL,ECO
|
|
|
Filter Cleaning Cycle
|
100/200/300 hours
|
|
|
Cooling time
|
0S,60s,90s
|
|
|
Closed caption
|
Yes
|
|
|
High altitude
|
Yes(1400~2700m)
|
|
|
Signal Power On
|
Yes
|
|
|
Turn on countdown
|
Customized-(0S, 10S, 30S..)
|
|
|
Auto Ceiling
|
Yes
|
|
|
D-Zoom
|
1~16
|
|
|
Others
|
|
|
Dimension and amp;Weight
|
|
|
|
|
MAX Dimensions
(WxHxD mm) |
347*341*141
|
|
|
Net. Weight (KG)
|
4
|
|
|
Packaging Box Dimensions
(WxHxD mm) |
463*458*211
|
|
|
Gross. Weight (KG)
|
5.5
|
|
Accessory
|
|
|
|
|
Manual Languages
|
Chinese, English,Korean
|
|
|
Standard Accessaries
|
Power cord, VGA cable,Remote control and amp;
RC Battery |
|
Regulation List
|
|
|
|
China
|
Safety and EMC
|
CCC
|
|
|
Evironment Friendly
|
CECP
|
|
USA/Canada
|
Safety
|
cTUVUS
|
|
|
|
CB
|
|
|
EMI
|
FCC
|
|
E.U
|
EMC
|
CE
|
Overview ,

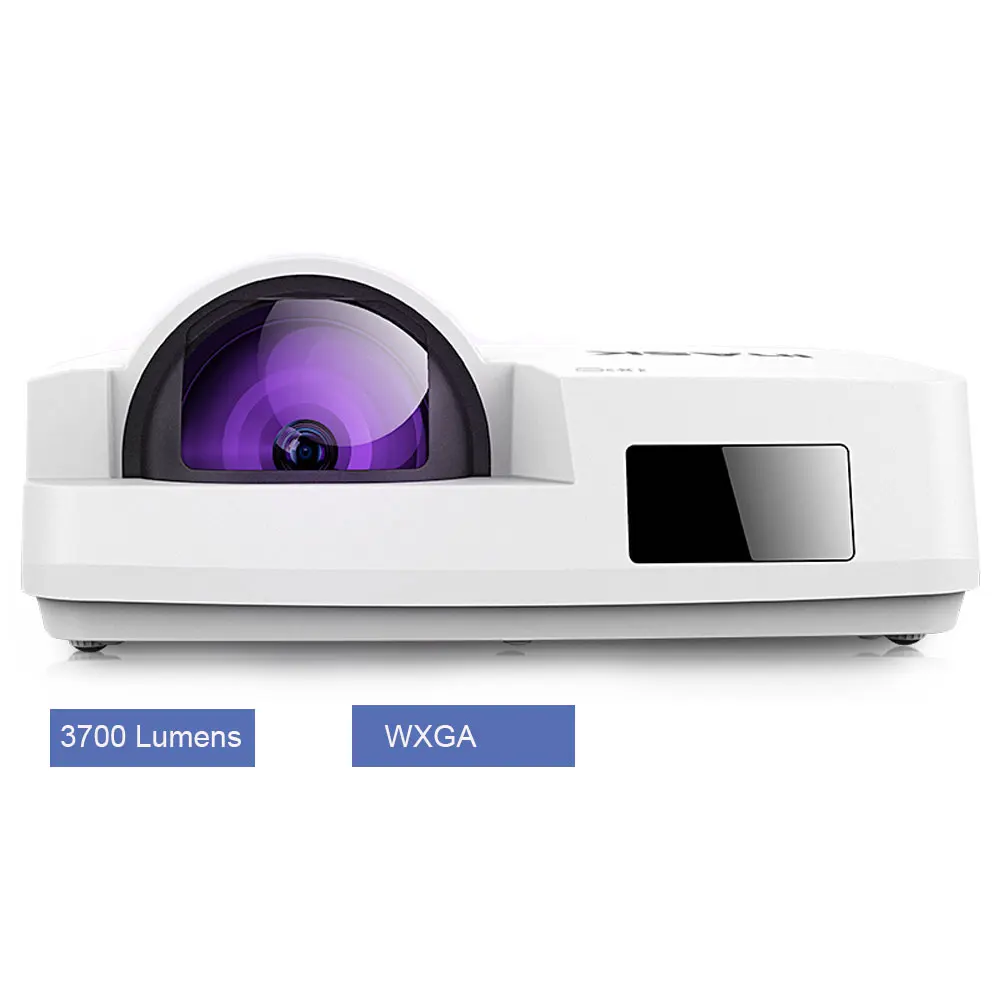

–Brightness and Color
Features 3700 ansi Lumens of Color brightness (color light output) and 3700 lumens of White brightness(White light ouput )
–Brightness and Color
Features 3700 ansi Lumens of Color brightness (color light output) and 3700 lumens of White brightness(White light ouput )
–WXGA Resolution
1280×800 pixels native resolution Support FULL HD 1080P 4K

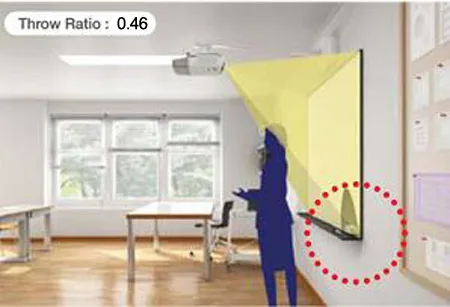

Short -Throw projector or Ultra short throw Projector
Throw Ratio 0.46:1

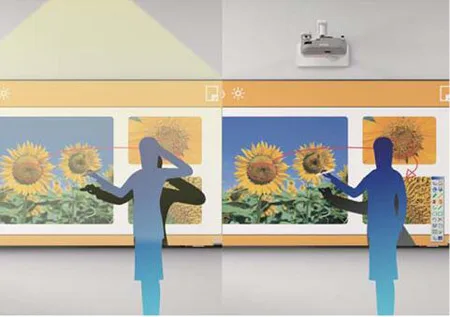

Can be mounted only 1.004m away from the board ,and the projected image can get as large as 100 inches diagonal
with no shadow interference (using the optional wall mount )
Lamp life
High-efficiency Lamp lasts up to 5,000 hours in normal mode and up to 10,000 hours in Eco Mode.
High-efficiency Lamp lasts up to 5,000 hours in normal mode and up to 10,000 hours in Eco Mode.
* 3xBrighter colors and reliable performance -3LCD,3-Chip technology.
*Both high color brightness and high white brightness
*Native WXGA Resolution and 16:10 16:9 format
* Long-Lasting ,low -cost lamps . up to 10,000 hors .
*Powerful Sound to engage every student . include a build in 10w speaker and microphone input or use external speakers ,even in
standby mode .

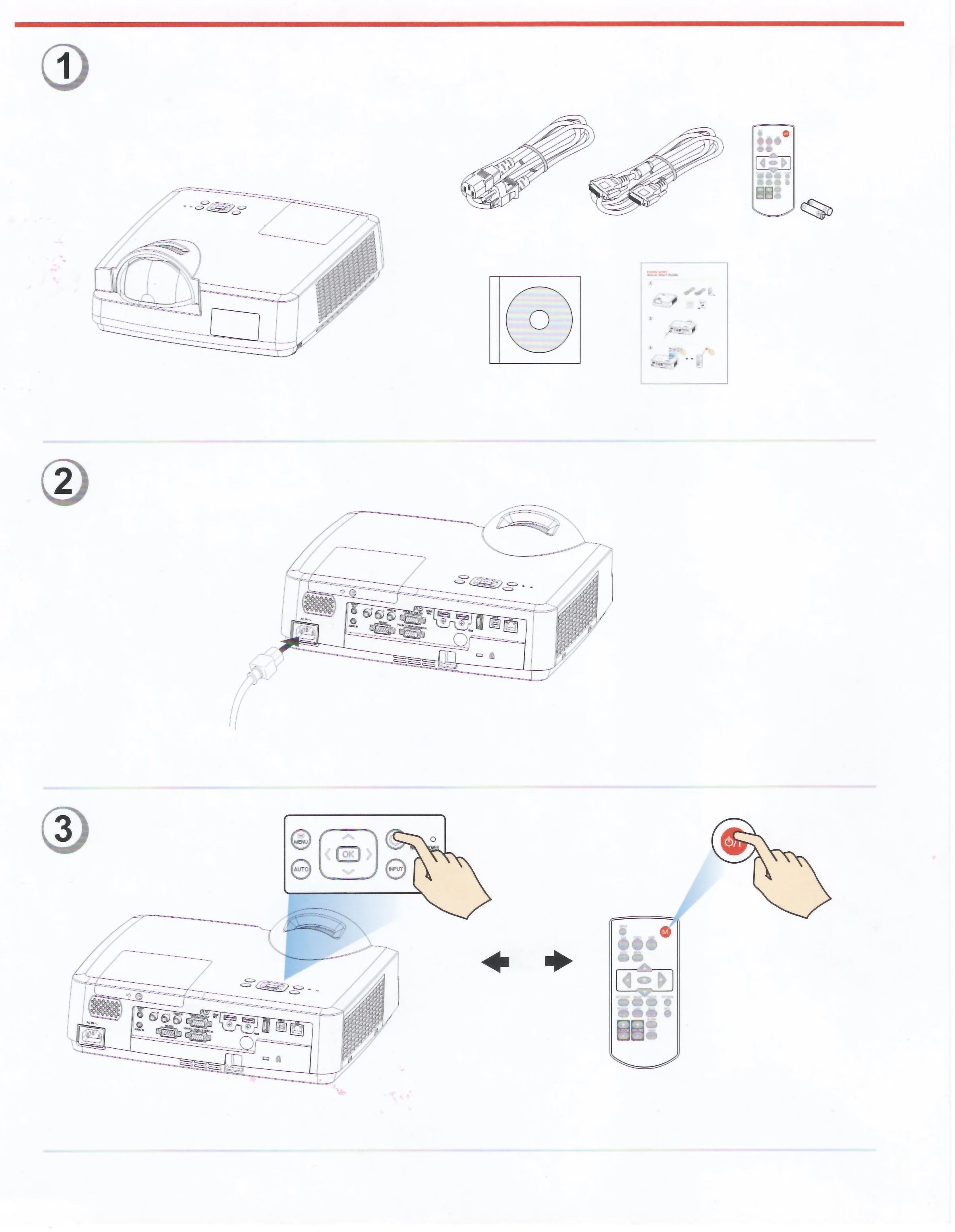

What’s in The Box :
* FLYIN Short throw Projector
*Power cord (Euro ,USA,UK Plug optional )
*Computer cable (VGA)
*User manual CD
*Quick setup sheet
